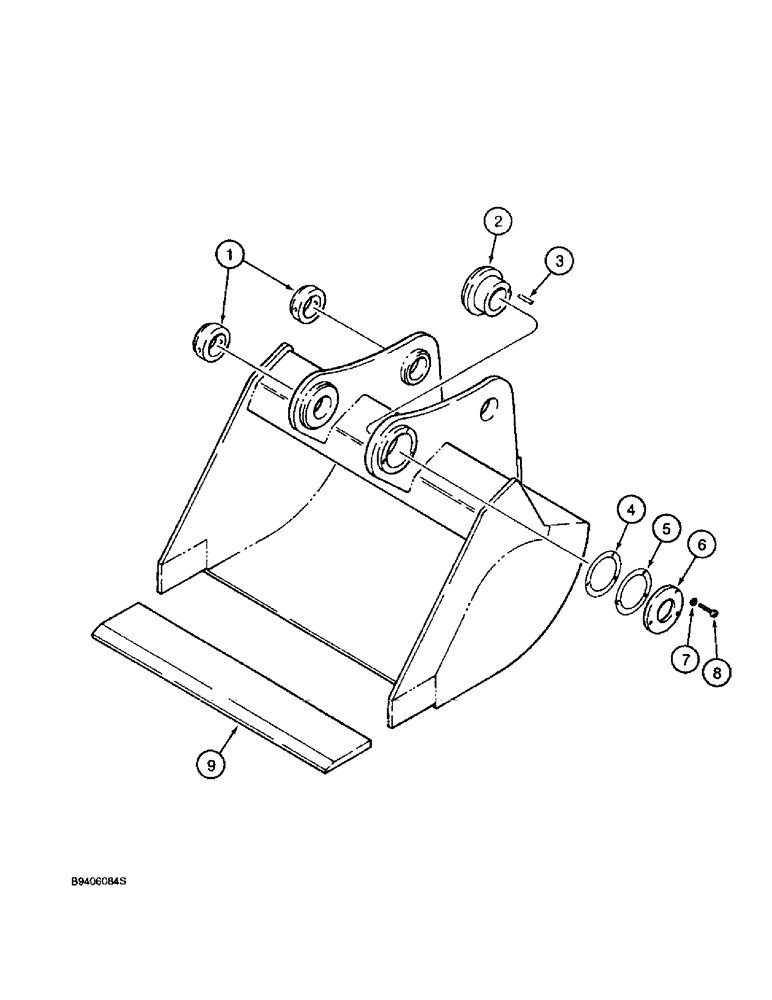

Запчасти Case 9010 (9-56) - CENTRAL FABRICATORS BUCKETS, DITCH (09) - CHASSIS

REF

INSTRUCTION

BUCKET ASSEMBLY 48 inch (1220 mm), 0.67 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET ASSEMBLY 60 inch (1524 mm), 0.90 cu. yd., Includes: Ref. 1-9

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

122700A1

RING

BUSHING bucket, with locking collar

2шт.

2

122696A1

BUSHING

bucket, adjustable

1шт.

3

NSS

NOT SOLD SEPARAT

PIN dowel, 10 x 25 mm

1шт.

4

122697A1

SHIM

plate mounting 0.039 inch thick

1шт.

5

122698A1

SHIM

plate mounting 0.020 inch thick

1шт.

6

122699A1

RETAINER

PLATE bushing

1шт.

7

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER lock 14 mm

3шт.

8

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

BOLT hex socket 14 - 2.0 x 50 mm, class 12.9

3шт.

9

125034A1

PLATE

EDGE cutting, center 48 inch (1219 mm) bucket

1шт.

9

125035A1

PLATE

EDGE cutting, center 60 inch (1524 mm) bucket

1шт.
