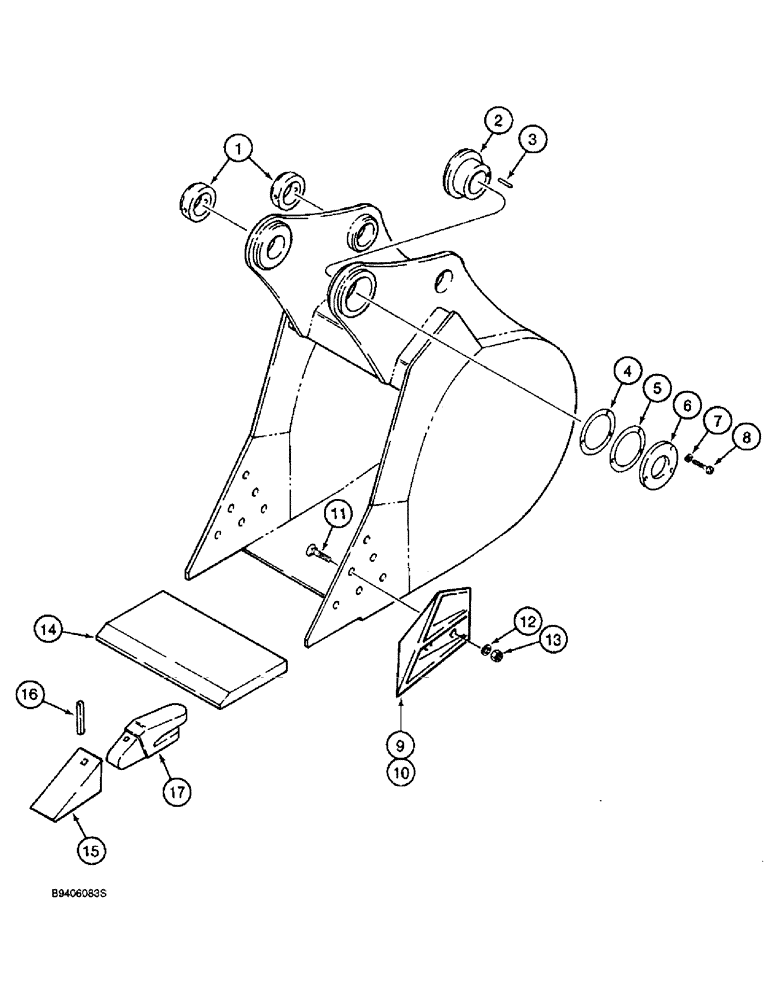

Запчасти Case 9010 (9-54) - CENTRL FBRICTR BUCKTS,GEN PURP/HVY DTY-STD CAP.,GENERAL PURPOSE-STD CAPACITY, HVY DTY-STD CAPACITY (09) - CHASSIS

REF

INSTRUCTION

BUCKET 24 inch (610 mm), with 4 teeth, 0.50 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET 30 inch (762 mm), with 4 teeth, 0.64 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET 36 inch (914 mm), with 5 teeth, 0.78 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET 42 inch (1067 mm), with 6 teeth, 0.92 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET 24 inch (610 mm), with 4 teeth, 0.50 cu. yd., heavy duty, standard capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET 30 inch (762 mm), with 4 teeth, 0.64 cu. yd., heavy duty, standard capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET 36 inch (914 mm), with 5 teeth, 0.78 cu. yd., heavy duty, standard capacity, Includes: Ref. 1-17

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

122700A1

RING

BUSHING bucket, with locking collar, heavy duty, standard capacity

2шт.

2

122696A1

BUSHING

bucket, adjustable, heavy duty, standard capacity

1шт.

3

NSS

NOT SOLD SEPARAT

PIN dowel 10 x 25 mm1, heavy duty, standard capacity

1шт.

4

122697A1

SHIM

plate mounting 0.039 inch thick, bucket assembly, heavy duty, standard capacity

1шт.

5

122698A1

SHIM

plate mounting 0.020 inch thick, bucket assembly, heavy duty, standard capacity

1шт.

6

122699A1

RETAINER

PLATE bushing, bucket assembly, heavy duty, standard capacity

1шт.

7

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER lock 14 mm, bucket assembly, heavy duty, standard capacity

3шт.

8

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

BOLT hex socket 14 - 2.0 x 50 mm, class 12.9, bucket assembly, heavy duty, standard capacity

3шт.

112222A1

HALF BLADE

KIT edge, side cutting 6 inch, bucket assembly, heavy duty, standard capacity, Includes: Ref. 9-17

1шт.

9

122682A1

CUTTER

EDGE cutting, bucket, right-hand side, heavy duty, standard capacity

1шт.

10

122683A1

CUTTER

EDGE cutting, bucket, left-hand side, heavy duty, standard capacity

1шт.

11

320-21448

CARRIAGE BOLT,#3, 7/8" - 9 x 3", Gr 8

BOLT plow, #3 head 7/8 NC x 3 inch, grade 8, bucket assembly, heavy duty, standard capacity

6шт.

12

392-21088

LOCK WASHER,7/8"

bucket assembly, heavy duty, standard capacity 7/8"

6шт.

13

329-1014

NUT,7/8"-9, G8

Bucket assembly, heavy duty, standard capacity 7/8"-9, G8

6шт.

14

125015A1

PLATE

EDGE cutting, center 1-1/4 (29) x 24 inch (610 mm) bucket, heavy duty, standard capacity

1шт.

14

125016A1

PLATE

EDGE cutting, center 1-1/4 (29) x 30 inch (762 mm) bucket, heavy duty, standard capacity

1шт.

14

125017A1

PLATE

EDGE cutting, center 1-1/4 (29) x 36 inch (914 mm) bucket, heavy duty, standard capacity

1шт.

14

125018A1

PLATE

EDGE cutting, center 1-1/4 (29) x 42 inch (1067 mm) bucket, heavy duty, standard capacity

1шт.

15

122665A1

TOOTH

standard point, bucket assembly, heavy duty, standard capacity

1шт.

See Figures 9-72 and 9-74 for point, pin and shank options.

1шт.

16

N14173

PIN,12.7mm OD x 76.2mm L

flex, point, bucket assembly, heavy duty, standard capacity

1шт.

See Figures 9-72 and 9-74 for point, pin and shank options.

1шт.

17

122667A1

BUCKET TOOTH SHANK

SHANK tooth also called an, bucket assembly, heavy duty, standard capacity adapter, bucket assembly, heavy duty, standard capacity

1шт.

See Figures 9-72 and 9-74 for point, pin and shank options.

1шт.
