Запчасти Case 9010 (9-52) - ARM AND LINKAGE (09) - CHASSIS

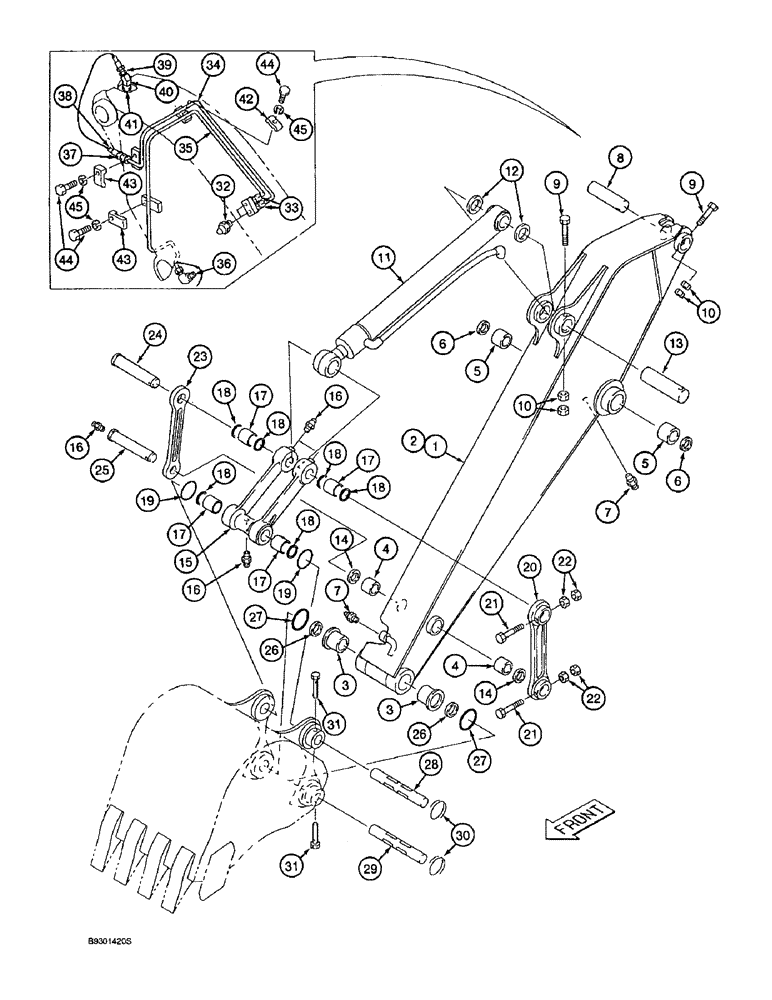

Схема запчастей Case 9010 - (9-52) - ARM AND LINKAGE (09) - CHASSIS
3
6
12
9
27
18
6
31
14
44
45
26
16
44
4
20
16
39
8
43
30
17
3
29
38
19
22
21
5
27
15
37
1
25
22
26
33
4
24
42
7
17
41
14
18
28
18
35
2
31
18
34
10
17
5
40
36
45
9
13
16
18
23
7
18
21
19
32
43
11
10
17

Артикул

Название

Примечание

Количество

1

153727A1

ARM

ASSEMBLY standard 8 ft 2 inch standard, if used

1шт.

2

153728A1

ARM

ASSEMBLY long 9 ft 7 inch optional, if used, Includes: Ref. 3-5

1шт.

3

153722A1

BUSHING

-, Serial Range: Arm-bucket

2шт.

4

150577A1

BUSHING

-, Serial Range: Link-arm

2шт.

5

150581A1

BUSHING

, Serial Range: boom-arm

2шт.

6

150075A1

SEAL

dust, Serial Range: boom-arm

2шт.

7

153630A1

LUBE NIPPLE

FITTING grease, straight

2шт.

8

150674A1

PIN ASSY.

PIN attaching arm, Serial Range: cylinder-arm

1шт.

9

514-857

BOLT,Hex, M12 x 1.25 x 120mm, Cl 10.9

BOLT hex, 12 - 1.25 x 120 mm, class 10.9 class 10.9

2шт.

10

825-11412

NUT,M12 x 1.25, Cl 8

hex ,12 mm - 1.25

4шт.

11

150661A1

CYLINDER ASSY.

CYLINDER ASSEMBLY 4-1/8 (105) ID x 35 inch (890 mm) stroke parts list Figure 8-84

1шт.

12

150696A1

BLOCK

SHIM bucket cylinder mounting

1шт.

13

150671A1

PIN ASSY.

PIN attaching bucket cylinder mounting, closed end

1шт.

14

150011A1

SEAL

SEAL dust, Serial Range: link-arm

2шт.

15

156909A1

LINK ASSY.

LINK center, bucket standard, was 153719A1

1шт.

15

164304A1

LINK ASSY.

LINK center, bucket heavy duty (hammer/crusher)

1шт.

16

153630A1

LUBE NIPPLE

FITTING grease, straight

4шт.

17

150572A1

RING

BUSHING, Serial Range: coupler-bucket

4шт.

18

150014A1

SEAL

SEAL dust bucket coupler bushings

6шт.

19

153687A1

O-RING,95mm ID x 7mm OD

coupler to bucket

2шт.

20

153720A1

LINKAGE YOKE

LINK outer, arm to bucket coupler, left-hand, standard

1шт.

20

164306A1

ARM ASSY.

LINK outer, arm to bucket coupler, left-hand, heavy duty (hammer/crusher)

1шт.

21

514-857

BOLT,Hex, M12 x 1.25 x 120mm, Cl 10.9

BOLT hex, 12 - 1.25 x 120 mm, class 10.9

2шт.

22

825-11412

NUT,M12 x 1.25, Cl 8

hex 12 mm - 1.25

4шт.

23

153721A1

LINKAGE YOKE

LINK outer, links to arm, right-hand, standard

1шт.

23

164305A1

ARM ASSY.

LINK outer, links to arm, right-hand, heavy duty (hammer/crusher)

1шт.

24

150699A1

PIN

attaching coupler to outer links, standard

1шт.

24

164307A1

PIN

attaching coupler to outer links, heavy duty (hammer/crusher)

1шт.

25

150700A1

PIN ASSY.

PIN attaching outer, Serial Range: links-arm

1шт.

26

150014A1

SEAL

SEAL dust, Serial Range: bucket-arm

2шт.

27

153688A1

O-RING,112mm ID x 8mm Width

O-RING bucket to arm

2шт.

28

153705A1

PIN

, Serial Range: attaching-bucket

1шт.

PINS ARE USED FOR THE QUICK DISCONNECT AND FOR THE BUCKETS PER JIM GOLDBACH AT CENTRAL FAB.

1шт.

29

153704A1

PIN

, Serial Range: attaching-bucket

1шт.

PINS ARE USED FOR THE QUICK DISCONNECT AND FOR THE BUCKETS PER JIM GOLDBACH AT CENTRAL FAB.

1шт.

30

153639A1

RING

wire lock

2шт.

31

153703A1

HEADED PIN,16mm OD x 102mm L

PIN clevis lock, at bucket ear

2шт.

32

153631A1

LUBE NIPPLE,1/8"-27 NPT

FITTING grease, special

2шт.

33

152599A1

MULTIPOLE CONNECTOR

CONNECTOR straight, special lubrication line

2шт.

34

153702A1

TUBE

lubrication

1шт.

35

153701A1

TUBE

lubrication

1шт.

36

152627A1

ELBOW

90 degree, special

1шт.

37

152032A1

UNION

CONNECTOR straight

1шт.

38

153725A1

HOSE

lubrication line nylon, arm, Serial Range: cylinder-arm

1шт.

39

153775A1

FITTING

REDUCER bushing

1шт.

40

153634A1

ELBOW

lubrication line

1шт.

41

153693A1

NIPPLE, LUBE

NIPPLE lubrication

1шт.

42

153774A1

CLAMP

double lubrication line

1шт.

43

151504A1

CLAMP

lubrication line, single type

2шт.

44

628-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

hex, full threads 8 - 1.25 x 30 mm, class 10.9

3шт.

45

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.
