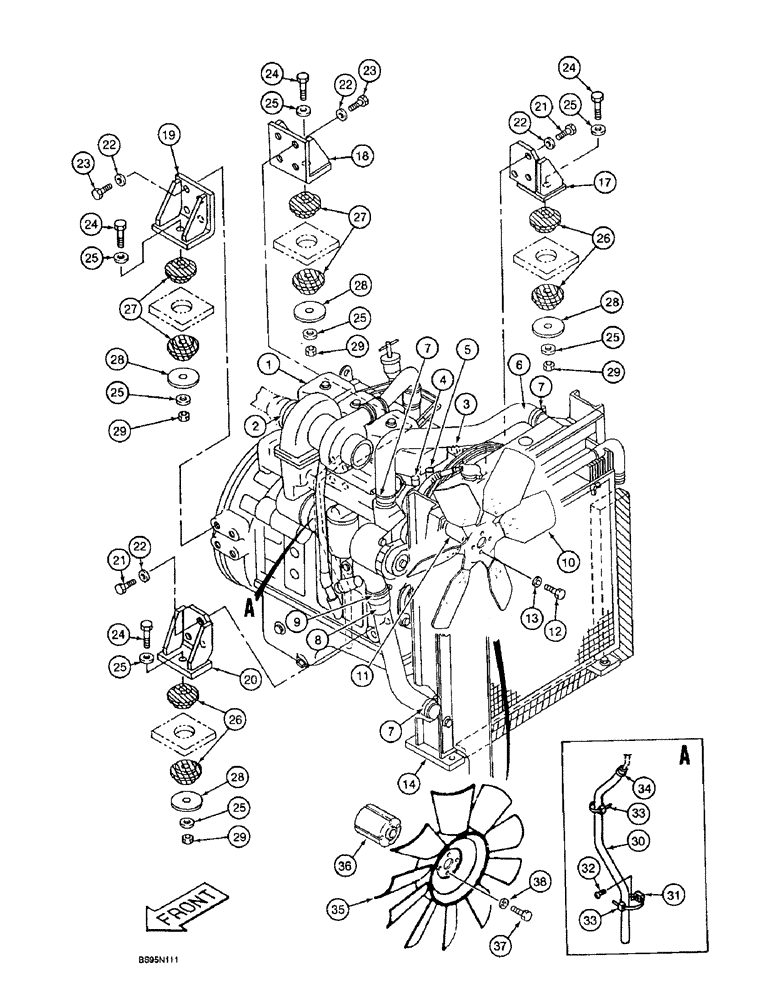

Запчасти Case 9010 (2-02) - ENGINE MOUNTING, RADIATOR AND ADAPTING PARTS (02) - ENGINE

1

1989156C1

ENGINE ASSEMBLY

4T-390 standard, complete, includes all parts except fan, air cleaner, muffler and exhaust pipe parts list Figures 2-12 thru 2-44 and 3-8 thru 3-14, Includes: Ref. 2-4

1шт.

1989156C1R

REMAN-REPLACEMENT EN

Remanufactured, For N.A. Only

1шт.

4T-390C

CORE-REPLACEMENT ENG

Return Number, Complete, For N.A. Only

1шт.

2

A170467

CLAMP,72mm ID

includes hardware at turbocharger, was 152391A1

1шт.

3

1546461C1

SWITCH

oil pressure 10 psi

1шт.

4

1983238C1

SENSOR,1/2" - 14

SENDER engine coolant

1шт.

= switch not sender. temperature

1шт.

5

153493A1

BUSHING

reducer

1шт.

should be 150974A1 Sender - eng. water temp.

1шт.

6

158386A1

RADIATOR HOSE

Upper, Was 151815A1

1шт.

THE DECRIPTION SOULD SAY "WAS 158015A1"

1шт.

7

153051A1

COLLAR

CLAMP hose

3шт.

8

151325A1

RADIATOR HOSE,42.00 mm ID x 58.00 mm ID x 243.7 mm

Front 42.00 mm ID x 58.00 mm ID x 243.7 mm

1шт.

9

153055A1

CLAMP

hose

1шт.

10

1998753C1

FAN

engine cooling metal, 6 blade, no longer used, order Ref. 35-38 below and J913433 mounting bracket on Figure 2-12

1шт.

11

A184547

SPACER

fan used with metal fan

1шт.

12

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

Used with metal fan Hex, M10 x 100, 10.9

4шт.

13

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm used with metal fan

4шт.

14

REF

INSTRUCTION

RADIATOR ASSEMBLY, engine and 10.9 used with metal fan Figure 2-10

1шт.

17

151285A1

ENGINE MOUNT

BRACKET engine mounting left-hand rear

1шт.

18

152208A1

ENGINE MOUNT

BRACKET engine mountingright-hand rear

1шт.

19

151295A1

ENGINE MOUNT

BRACKET engine mountingright-hand front

1шт.

20

151291A1

ENGINE MOUNT

BRACKET engine mounting left-hand front

1шт.

21

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 30 mm, class 10.9

6шт.

22

150811A1

WASHER

flat, special 12 mm

14шт.

23

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 35 mm, grade 10.9

8шт.

24

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

- hex, 16-2.0 x 110 mm, class 10.9

4шт.

25

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

flat, special special

8шт.

26

151059A1

INSULATOR

rubber engine mounting,left-hand front and rear

4шт.

27

150497A1

INSULATOR

rubber engine mounting, right-hand front and rear

4шт.

28

150815A1

WASHER

special

4шт.

29

829-1416

NUT,M16, Cl 10

hex 16 mm - 2.0, class 10

4шт.

30

1981643C1

HOSE

31-1/2 inch (800 mm) long

1шт.

31

150860A1

COLLAR

BRACKET support

1шт.

32

158254A1

SCREW,Phil Pan Hd, M6 x 10mm

pan head, special

1шт.

33

150067A1

MOUNTING CLIP

STRAP tie 150 mm long

2шт.

34

157916A1

CLAMP

special

1шт.

35

140977A1

FAN

engine cooling plastic, 10 blade

1шт.

36

J942341

SLEWING RING

fan used with plastic fan

1шт.

37

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

- hex, 10 - 1.5 x 80 mm, class 10.9, Used with plastic fan

4шт.

38

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

Used with plastic fan M10 x 21.5 x 2.5, HT

4шт.
