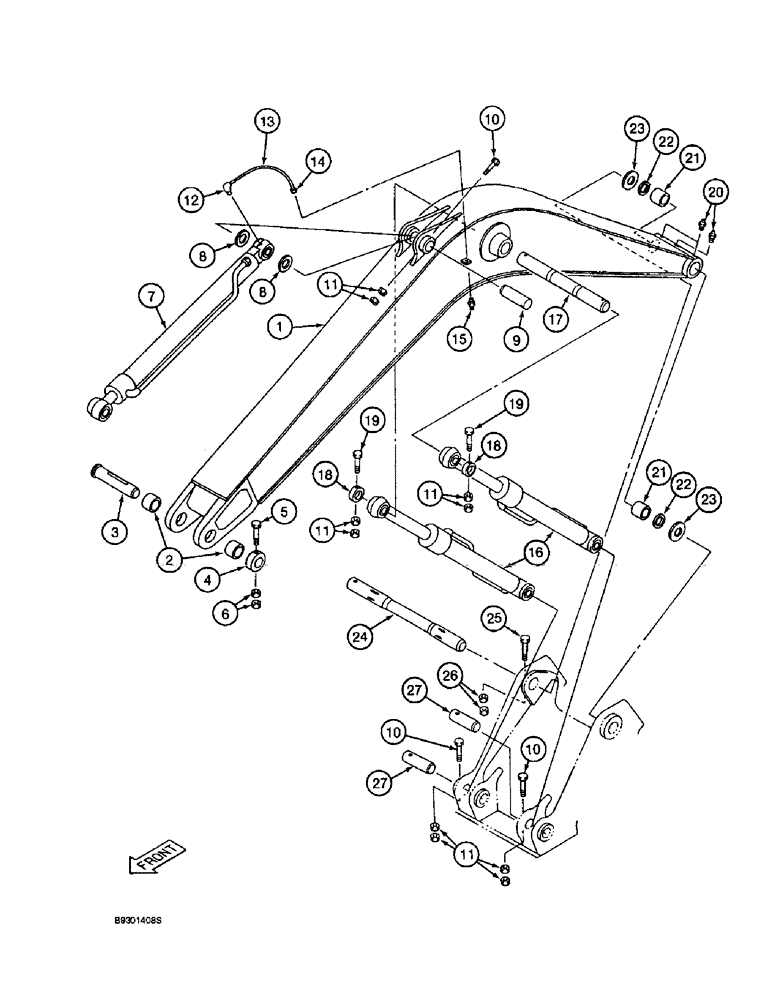

Запчасти Case 9010 (9-50) - BOOM, MOUNTING PINS AND LUBRICATION LINES (09) - CHASSIS

1

150649A1

BOOM

excavator

1шт.

2

150644A1

BUSHING

, Serial Range: boom-arm

2шт.

3

150673A1

PIN ASSY.

PIN, Serial Range: attaching-arm

1шт.

4

150641A1

SET

COLLAR pin retaining

1шт.

5

514-1216

BOLT,Hex, M20 x 1.5 x 160mm, Cl 10.9

BOLT hex, 20 - 1.5 x 160 mm, class 10.9

1шт.

6

825-11420

NUT,M20 x 1.5, Cl 8

- hex, 20 mm - 1.5

2шт.

7

150659A1

CYLINDER

ASSEMBLY, 4-3/4 (120) ID x 50-1/2 inch (1282 mm) stroke parts list Figure 8-82

1шт.

8

152661A1

SHIM,66mm ID x 120mm OD x 1.2mm Thk

0.05 inch thick

1шт.

9

150674A1

PIN ASSY.

PIN attaching arm, Serial Range: cylinder-boom

1шт.

10

514-857

BOLT,Hex, M12 x 1.25 x 120mm, Cl 10.9

BOLT hex, 12 - 1.25 x 120 mm, class 10.9

3шт.

11

825-11412

NUT,M12 x 1.25, Cl 8

hex, 12 mm - 1.25

10шт.

12

152838A1

FITTING

ELBOW 90 degree

1шт.

13

152549A1

TUBE,4.32 mm ID, 6.35 mm OD

4.32 mm ID - Lubrication line

1шт.

14

150190A1

FITTING

CONNECTOR nylon tube

1шт.

15

153630A1

LUBE NIPPLE

FITTING grease, straight

1шт.

16

150654A1

CYLINDER

ASSEMBLY, 4-5/16 (110) ID x 41-9/16 inch (1055 mm) stroke parts list Figure 8-80

2шт.

17

150556A1

PIN ASSY.

PIN attaching tboom cylinder rod, Serial Range: end-boom

1шт.

18

150703A1

SET

COLLAR pin retaining

2шт.

19

514-858

BOLT,Hex, M12 x 1.25 x 130mm, Cl 10.9

hex, 12 - 1.25 x 130 mm, class 10.9

2шт.

20

153630A1

LUBE NIPPLE

FITTING grease, straight

3шт.

21

150581A1

BUSHING

, Serial Range: BUSHING-frame

2шт.

22

150075A1

SEAL

dust

2шт.

23

150616A1

SHIM

PLATE shim 0.05 inch (1.27 mm) thick

1шт.

24

150677A1

PIN ASSY.

PIN attaching, Serial Range: boom-frame

1шт.

25

514-1215

BOLT,Hex, M20 x 1.5 x 150mm, Cl 10.9

hex, 20 - 1.5 x 150 mm, class 10.9

1шт.

26

825-11420

NUT,M20 x 1.5, Cl 8

- hex, 20 mm - 1.5

2шт.

27

150676A1

PIN ASSY.

PIN attaching boom cylinder closed, Serial Range: end-frame

2шт.
