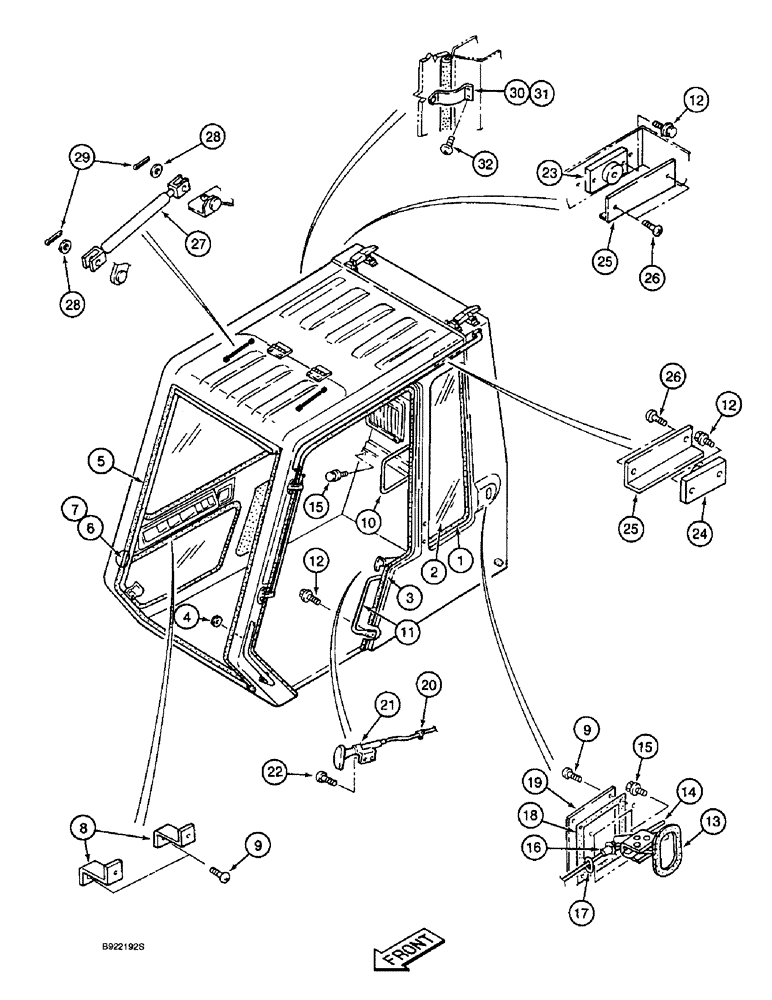

Запчасти Case 9010 (9-46) - CAB DOOR RELEASE AND OVERHEAD DOOR CYLINDER (09) - CHASSIS

1

KHN0773

FIXING STRIP

SEAL left-hand window, Replaces152562A1

1шт.

2

KHN1294

CAB GLASS

GLASS window left-hand side, Replaces 152553A1

1шт.

3

152150A1

GASKET

TRIM doorway edge

1шт.

4

152518A1

GROMMET

rubber

1шт.

5

152568A1

GASKET

TRIM edge front window

1шт.

6

152699A1

GASKET

TRIM edge front window

1шт.

7

152701A1

GASKET

TRIM edge front window

1шт.

8

152302A1

BRACKET

mounting

4шт.

9

152455A1

SPECIAL BOLT

SCREW special bracket mounting

8шт.

10

152923A1

SUPPORT

HANDLE grab upper

1шт.

11

152724A1

SUPPORT

HANDLE grab lower

1шт.

12

152438A1

BOLT

BOLT special

12шт.

13

152401A1

GROMMET

rubber

1шт.

14

KAN2772

LOCK

LATCH cab door, Replaces 152942A1, KHN1321

1шт.

15

152053A1

BOLT

BOLT hex, special, Replaces KHN0714

10шт.

16

152508A1

CLAMP

RING lock

1шт.

17

152491A1

GROMMET

rubber

1шт.

18

152409A1

GASKET

door latch cover

1шт.

19

152323A1

COVER

cab door latch

1шт.

20

152489A1

CLAMP

CLIP

2шт.

21

152350A1

BOWDEN CONTROL

CABLE door latch

1шт.

22

152443A1

SPECIAL BOLT

SCREW special cable mounting

2шт.

23

152267A1

SUPPORT

BRACKET right-hand, coil spring mounting

1шт.

24

152273A1

SUPPORT

BRACKET left-hand, coil spring mounting

1шт.

25

152255A1

COVER

access coil spring mounting

2шт.

26

152482A1

SPECIAL BOLT,Spcl

SCREW special

4шт.

27

152694A1

CYLINDER

2шт.

28

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

4шт.

29

152665A1

COTTER PIN

PIN cotter

4шт.

30

152337A1

BRACKET

PLATE mounting

1шт.

31

152332A1

PLATE

mounting

1шт.

32

152446A1

SPECIAL BOLT,Spcl

SCREW special

3шт.
