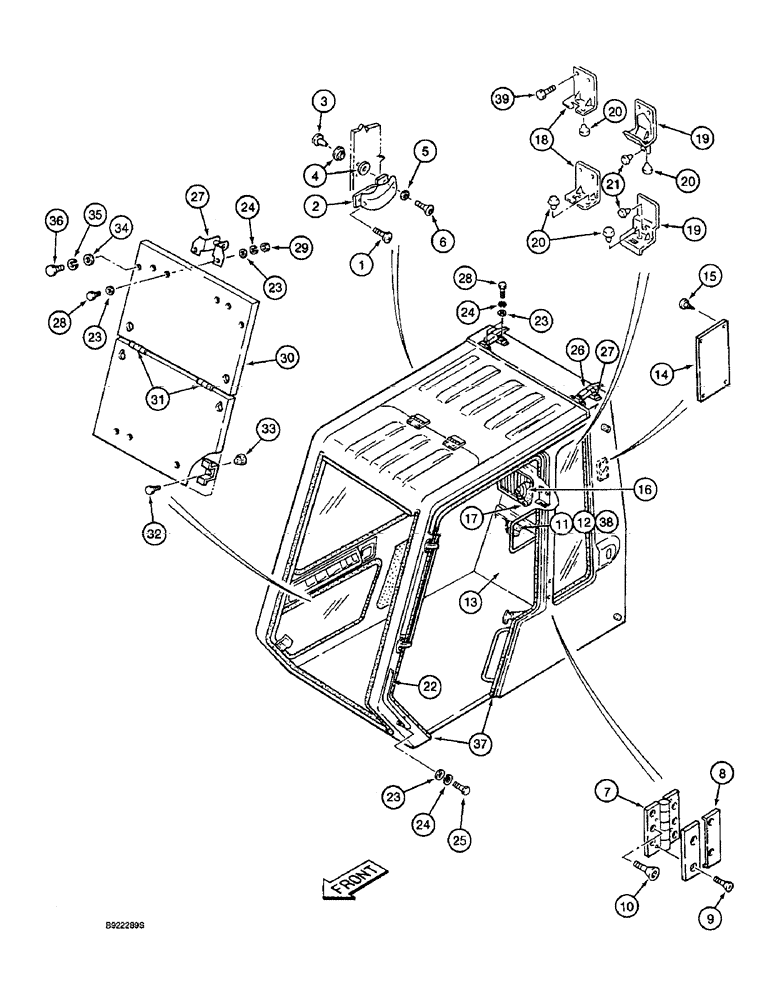

Запчасти Case 9010 (9-40) - CAB VANDAL GUARDS (09) - CHASSIS

1

152446A1

SPECIAL BOLT,Spcl

SCREW special

4шт.

2

152495A1

HANDLE

vandal guard storage

2шт.

3

KAN1370

NUT

RETAINER special, Replaces 152629A1

4шт.

4

KHN0661

SEAL PROTECTION

WASHER special, Replaces 152631A1

8шт.

5

152513A1

WASHER

WASHER special

4шт.

6

156499A1

SCREW

special

4шт.

7

152382A1

HINGE

cab door

2шт.

8

152506A1

COVER

hinge

4шт.

9

152546A1

SCREW

special

8шт.

10

151290A1

HEX SOC SCREW,Flat Csk Hd, M8 x 20mm

BOLT special

12шт.

11

152394A1

PACKING

PAD lower rear cab

2шт.

12

152397A1

PACKING

PAD lower rear cab

2шт.

13

152313A1

COVER

PANEL lower rear cab

1шт.

14

152320A1

COVER

side

2шт.

15

152450A1

SCREW

special cover mounting

8шт.

16

152316A1

COVER

upper rear cab

1шт.

17

152538A1

SCREW

special cover mounting

6шт.

18

152671A1

SUPPORT

BRACKET support

1шт.

19

152673A1

PLATE

BRACKET catch

1шт.

20

152679A1

CLIP

BUMPER rubber

4шт.

21

152676A1

STOP

BUMPER rubber

2шт.

22

152573A1

RAIL

HANDLE grab, cab frame

1шт.

23

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

9-25шт.

24

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

9-21шт.

25

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

hex, full threads 6 - 1.0 x 16 mm, class 10.9

9шт.

26

150854A1

FASTENER

LATCH top cover, If Used

2шт.

27

150856A1

STOP LOCK

CATCH top cover, If Used

4шт.

28

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

hex, full threads 6 - 1.0 x 16 mm, class 10.9, If Used

12шт.

29

829-1406

NUT,Hex, M6 x 1, Cl 10.9

If Used M6, Cl 10

4шт.

30

152569A1

COVER

GUARD vandal, Includes: Ref. 31, If Used

1шт.

31

152590A1

HINGE

vandal guard, If Used

2шт.

32

152580A1

STEP BOLT,Hex, M10 x 20mm, Spcl

BOLT special, If Used

6шт.

33

152588A1

CUSHION ASSY.

BUMPER rubber, If Used

6шт.

34

150861A1

WASHER

flat special, If Used

2шт.

35

892-11010

LOCK WASHER,M10

If Used M10

2шт.

36

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

hex, full threads, 10 - 1.5 x 20 mm, class 10.9, If Used

2шт.

37

152750A1

CAP

EDGE trim

2шт.

38

152810A1

PACKING

PAD lower rear panel

2шт.

39

152542A1

BOLT

BOLT special

6шт.
