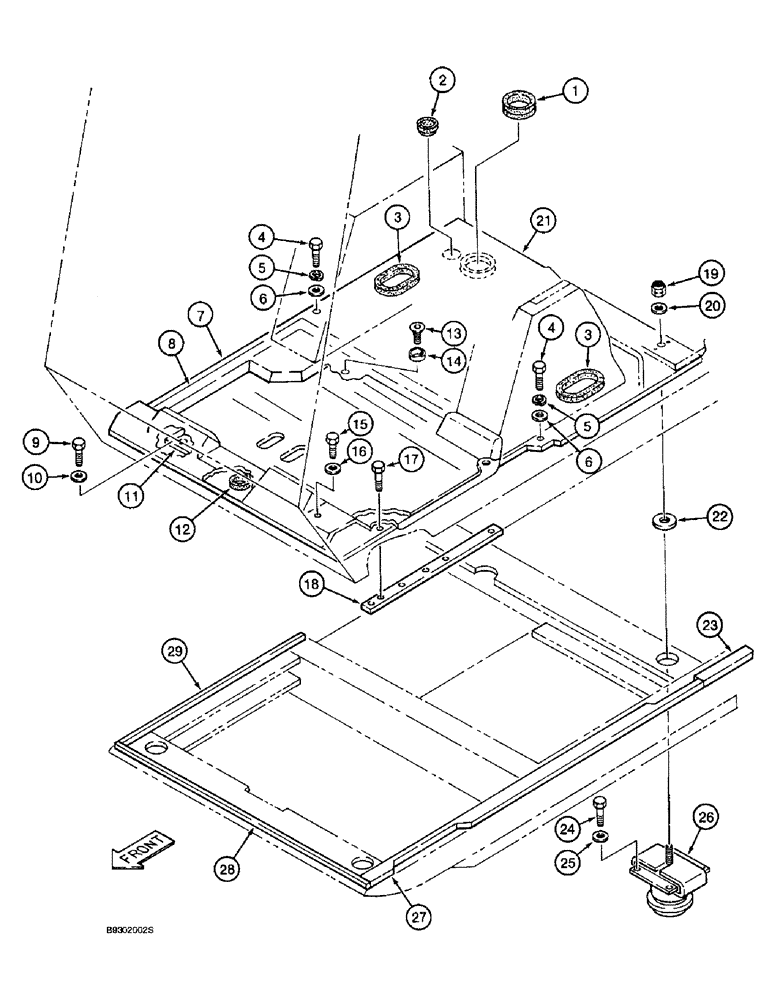

Запчасти Case 9010 (9-38) - CAB FLOOR AND MOUNTING (09) - CHASSIS

1

152424A1

GROMMET

rubber

1шт.

2

152643A1

GROMMET

rubber

1шт.

3

152644A1

GROMMET

rubber

2шт.

4

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

5

892-11010

LOCK WASHER,M10

2шт.

6

150344A1

WASHER

WASHER flat, special, 11 ID x 25 O.D. x 3.2 mm thick

2шт.

7

153056A1

FLOOR MAT

MAT floor outer

1шт.

8

153514A1

FLOOR MAT

MAT floor inner

1шт.

9

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

10

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

2шт.

11

151168A1

BRACKET

foot rest

1шт.

12

150413A1

GROMMET

rubber

1шт.

13

151290A1

HEX SOC SCREW,Flat Csk Hd, M8 x 20mm

BOLT special

2шт.

14

151590A1

WASHER

special

2шт.

15

150548A1

BOLT,High Strength, Hex, M10 x 20mm

BOLT hex, 10 - 1.5 x 20 mm, class 10.9

2шт.

16

150604A1

WASHER

special

2шт.

17

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 25 mm, class 10.9

6шт.

18

151183A1

PLATE

reinforcement

1шт.

19

150760A1

NUT

hex

4шт.

20

150714A1

WASHER

special

4шт.

21

151638A1

FLOOR

cab

1шт.

22

151092A1

SPACER

at shock mount

4шт.

23

151530A1

CUSHION ASSY.

CUSHION sponge

1шт.

24

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

hex, full threads, 10 - 1.5 x 25 mm, class 10.9

16шт.

25

150409A1

WASHER

flat, special, 10.5 x 21 x 3.2 mm

16шт.

26

151090A1

RUBBER MOUNTING

MOUNT shock rubber

4шт.

27

151525A1

CUSHION ASSY.

CUSHION sponge left side

1шт.

28

151128A1

CUSHION ASSY.

CUSHION sponge front

1шт.

29

151135A1

CUSHION ASSY.

CUSHION sponge right side

1шт.
