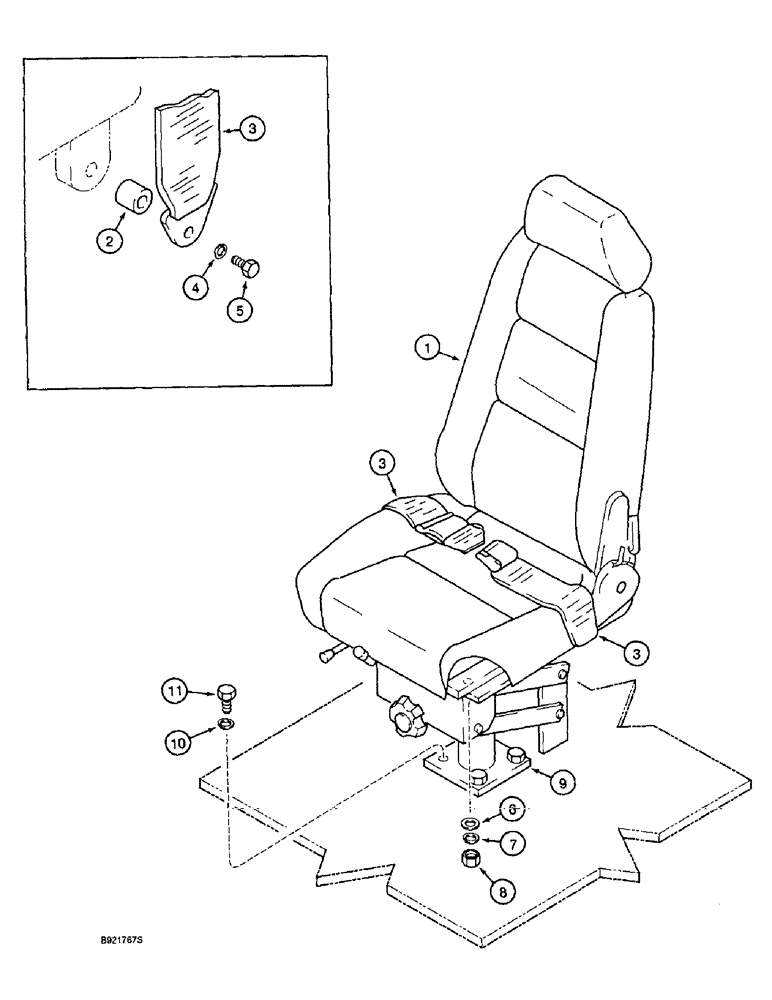

Запчасти Case 9010 (9-32) - SEAT, SEAT BELTS AND MOUNTING (09) - CHASSIS

1

153002A1

SEAT ASSY.

SEAT operators, Includes: Ref. 1A, 1B

1шт.

1a

156801A1

RAIL

slide right-hand, not shown

1шт.

1b

156802A1

RAIL

slide left-hand, not shown

1шт.

2

152755A1

SPACER

13.7 ID x 21.7 O.D. x 10 mm

1шт.

3

151520A1

SAFETY BELT

SAFETY BELT, Includes Ref. 4 and 5

1шт.

4

151526A1

SPRING WASHER

WASHER lock special

2шт.

5

151523A1

BOLT,High Strength, Hex

BOLT hex special, seat belt mounting

2шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

4шт.

7

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

4шт.

9

152784A1

SUSPENSION

PEDESTAL seat

1шт.

10

892-11010

LOCK WASHER,M10

4шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.
