Запчасти Case 9010 (9-18) - UPPER STRUCTURE, FRAME, PANELS, AND INSULATION PADS (09) - CHASSIS

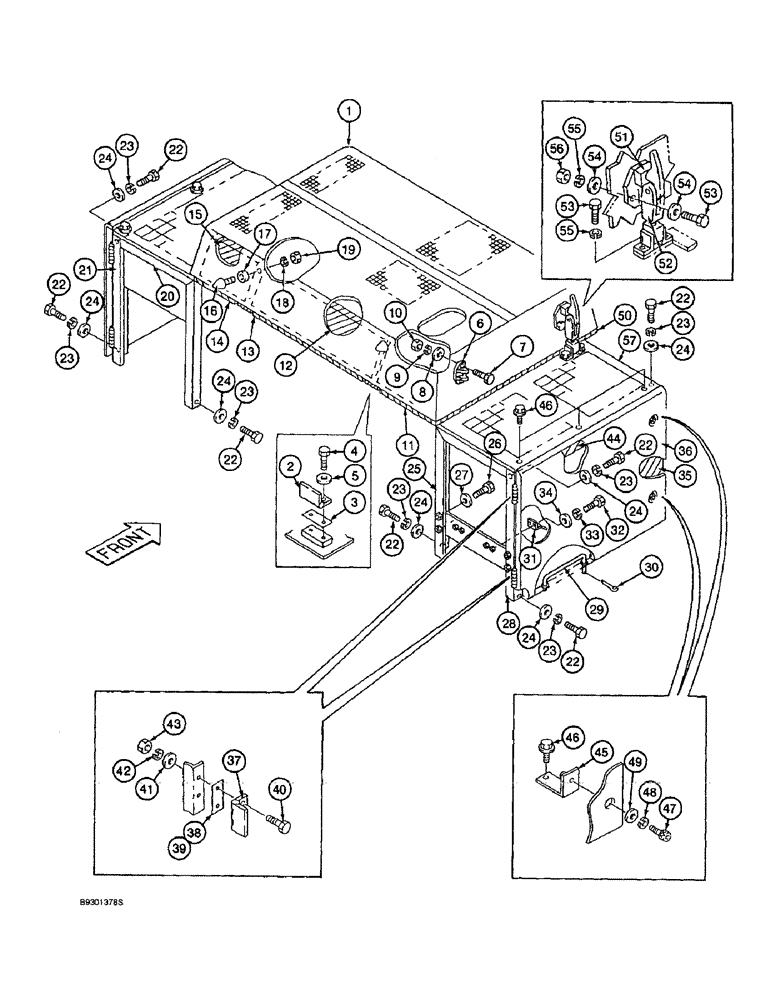

Схема запчастей Case 9010 - (9-18) - UPPER STRUCTURE, FRAME, PANELS, AND INSULATION PADS (09) - CHASSIS
46
7
36
10
23
24
18
24
23
56
24
22
24
4
42
57
11
5
22
19
51
22
23
24
43
23
55
29
22
52
41
31
26
27
23
45
1
38
13
33
53
8
44
24
14
46
32
23
3
17
34
35
22
2
24
48
22
6
20
49
47
22
23
40
16
15
50
53
54
9
25
28
54
12
30
55
39
37
21

Артикул

Название

Примечание

Количество

1

158157A1

HOOD

ASSEMBLY engine cover was 152441A1, Includes: Ref. 2

1шт.

2

152494A1

HINGE

hood

2шт.

3

152186A1

BLOCK

SHIM, 2.5 mm thick

1шт.

4

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 20 mm, class 10.9

4шт.

5

150811A1

WASHER

flat, special 12 mm

4шт.

6

150856A1

STOP LOCK

CATCH top cover

1шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat 9 x 17 x 1.6 mm

2шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

2шт.

11

151385A1

CUSHION ASSY.

CUSHION sponge foam strip

1шт.

12

152479A1

INSULATOR

PAD insulation

1шт.

13

151167A1

CUSHION ASSY.

CUSHION sponge foam strip

1шт.

14

151378A1

CUSHION ASSY.

CUSHION sponge foam strip

1шт.

15

152469A1

INSULATOR

PAD insulation

1шт.

16

151108A1

STOP

BUMPER rubber

2шт.

17

156912A1

SPACER

bumper , if used

2шт.

18

892-11010

LOCK WASHER,M10

2шт.

19

153604A1

NUT

hex, special, Serial Range: -DAC0100006

2шт.

19

829-1412

NUT,M12, Cl 10.9

hex 12 mm - 1.75, class 10, Start Serial: DAC0100006

2шт.

20

152447A1

FRAME ASSY

FRAME left-hand

1шт.

21

151727A1

FRAME ASSY

FRAME left-hand

1шт.

22

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 25 mm, class 10.9

16шт.

23

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

16шт.

24

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

16шт.

25

152532A1

FRAME ASSY

FRAME right-hand

1шт.

26

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

hex, full threads, 10 - 1.5 x 20 mm, class 10.9

4шт.

27

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

4шт.

28

152534A1

FRAME ASSY

FRAME right-hand

1шт.

29

151791A1

STAY

ROD retaining cover

1шт.

30

130003

COTTER PIN,3mm OD x 30mm OAL

Replaces 156467A1

1шт.

31

152772A1

HOLDER

grease gun

2шт.

32

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

hex, full threads 8 - 1.25 x 16 mm, class 10.9

4шт.

33

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

34

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat 9 x 17 x 1.6 mm

4шт.

35

151849A1

INSULATOR

PAD insulation

1шт.

36

151818A1

DOOR

right-hand side, Includes: Ref. 37

1шт.

37

151104A1

HINGE

door

2шт.

38

152651A1

ADJUSTING PLATE

SHIM, 0.05 inch (1.27 mm) thick

1шт.

39

152186A1

BLOCK

SHIM, 2.5 mm thick

1шт.

40

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 35 mm, grade 10.9

4шт.

41

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

42

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

43

829-1412

NUT,M12, Cl 10.9

hex 12 mm - 1.75, class 10

4шт.

44

151859A1

INSULATOR

PAD insulation

1шт.

45

151763A1

BRACKET

90 degree, retaining right-hand side panel retaining

2шт.

46

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

12шт.

47

862-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

BOLT hex socket 10 - 1.5 x 20 mm, class 12.9

2шт.

48

892-11010

LOCK WASHER,M10

2шт.

49

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

2шт.

50

151286A1

CUSHION ASSY.

SEAL insulation foam strip

1шт.

51

150785A1

STOP LOCK

LATCH door assembly

1шт.

52

150790A1

LATCH

CATCH cover

1шт.

54

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat 9 x 17 x 1.6 mm

4шт.

55

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

56

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

2шт.

57

151983A1

REAR COVER

COVER right-hand rear

1шт.

7

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

hex, full threads 8 - 1.25 x 25 mm, class 10.9

2шт.

53

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

hex, full threads 8 - 1.25 x 25 mm, class 10.9

4шт.

Выбрано товаров: 58
