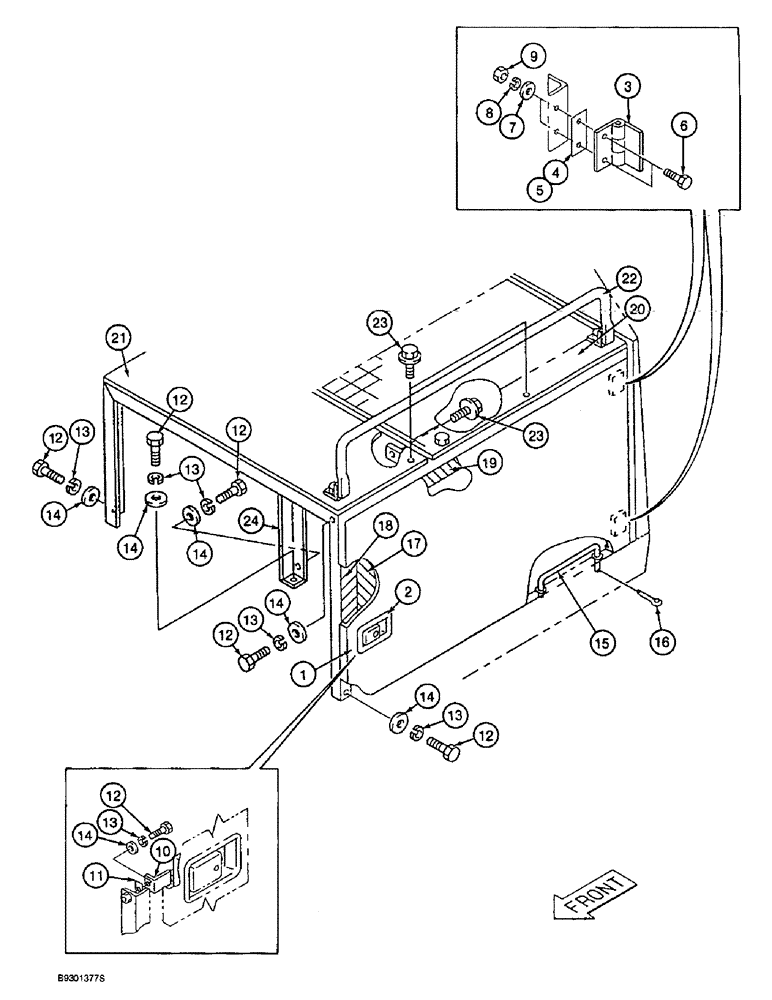

Запчасти Case 9010 (9-16) - UPPER STRUCTURE, LEFT-HAND SIDE COVER AND RELATED PARTS (09) - CHASSIS

1

151815A1

DOOR

left-hand side, Includes: Ref. 2 and 3

1шт.

2

150938A1

LOCK

LATCH recessed left-hand

1шт.

3

151104A1

HINGE

door left-hand door

2шт.

4

152651A1

ADJUSTING PLATE

SHIM, 0.05 inch (1.27 mm) thick

1шт.

5

152186A1

BLOCK

SHIM, 2.5 mm thick

1шт.

6

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 35 mm, grade 10.9

4шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

8

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

9

829-1412

NUT,M12, Cl 10.9

hex 12 mm - 1.75, class 10

4шт.

10

152720A1

BRACKET

angle

1шт.

11

152719A1

SHIM

PLATE shim 0.13 inch (3.30 mm) thick

1шт.

12

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 25 mm, class 10.9

6шт.

13

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

6шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

15

151791A1

STAY

ROD retaining cover

1шт.

16

130003

COTTER PIN,3mm OD x 30mm OAL

Replaces 156467A1

1шт.

17

151844A1

INSULATOR

PAD insulation

1шт.

18

151944A1

SEAL

insulation

1шт.

19

151854A1

INSULATOR

PAD insulation

1шт.

20

151988A1

REAR COVER

COVER left-hand, rear

1шт.

21

151696A1

COVER

left-hand, front

1шт.

22

152839A1

STAY

RAIL left-hand

1шт.

23

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, access cover

8шт.

24

152268A1

FRAME ASSY

FRAME upper structure left-hand

1шт.
