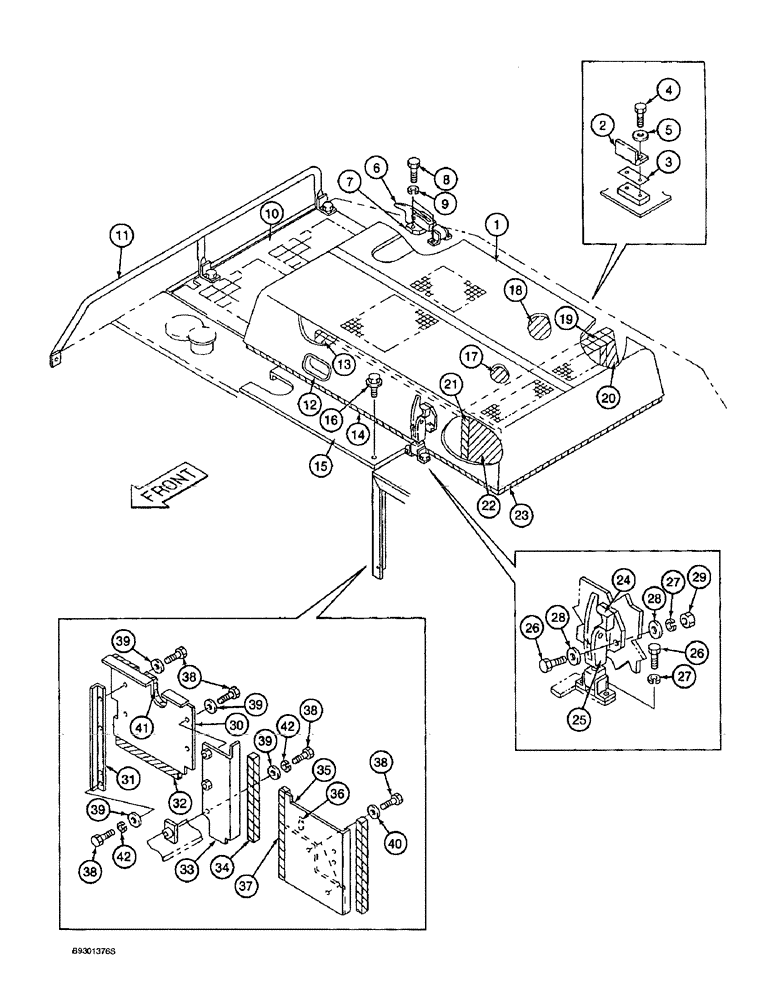

Запчасти Case 9010 (9-14) - UPPER STRUCTURE, HOOD AND INSULATION PADS (09) - CHASSIS

1

152441A1

HOOD

ASSEMBLY engine cover, Serial Range: -DAC100006

1шт.

1

158157A1

HOOD

ASSEMBLY engine cover, Includes: Refl 2, Start Serial: DAC0100006

1шт.

2

152494A1

HINGE

hood

2шт.

3

152186A1

BLOCK

SHIM, 2.5 mm thick

1шт.

4

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 20 mm, class 10.9

4шт.

5

150811A1

WASHER

flat, special 12 mm

4шт.

6

150854A1

FASTENER

LATCH top cover

1шт.

7

150856A1

STOP LOCK

CATCH top cover

1шт.

8

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

hex, full threads 8 - 1.25 x 16 mm, class 10.9

4шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

10

151983A1

REAR COVER

COVER right-hand rear

1шт.

11

151740A1

STAY

RAIL side right-hand

1шт.

12

150484A1

HANDLE

recessed

1шт.

13

152476A1

INSULATOR

PAD insulation

1шт.

14

151571A1

CUSHION ASSY.

CUSHION sponge, Serial Range: hood-frame

1шт.

15

151630A1

COVER

center

1шт.

16

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, access cover

5шт.

17

152484A1

INSULATOR

PAD insulation

1шт.

18

152487A1

INSULATOR

PAD insulation

1шт.

19

152459A1

INSULATOR

PAD insulation

1шт.

20

152467A1

INSULATOR

PAD insulation

1шт.

21

152463A1

INSULATOR

PAD insulation

1шт.

22

152473A1

INSULATOR

PAD insulation

1шт.

23

151286A1

CUSHION ASSY.

SEAL insulation foam strip

1шт.

24

150785A1

STOP LOCK

LATCH door assembly

1шт.

25

152423A1

LATCH

CATCH

1шт.

27

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

28

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat 9 x 17 x 1.6 mm

4шт.

29

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

2шт.

30

152451A1

COVER

frame

1шт.

31

151724A1

FRAME ASSY

BRACKET angle

1шт.

32

156913A1

PAD

insulation

1шт.

33

152536A1

BRACKET

cover mounting

1шт.

34

152456A1

INSULATOR

PAD insulation

1шт.

35

152285A1

COVER

frame, Includes: Ref. 36

1шт.

36

150486A1

CLIP

harness

1шт.

37

151129A1

SEAL

cushion

2шт.

38

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 25 mm, class 10.9

9шт.

39

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

7шт.

40

151161A1

WASHER

special

2шт.

41

152453A1

INSULATOR

PAD insulation

1шт.

42

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

3шт.

26

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

hex, full threads 8 - 1.25 x 25 mm, class 10.9

4шт.
