Запчасти Case 9010 (9-10) - UPPER STRUCTURE, TOP AND FRONT COVERS (09) - CHASSIS

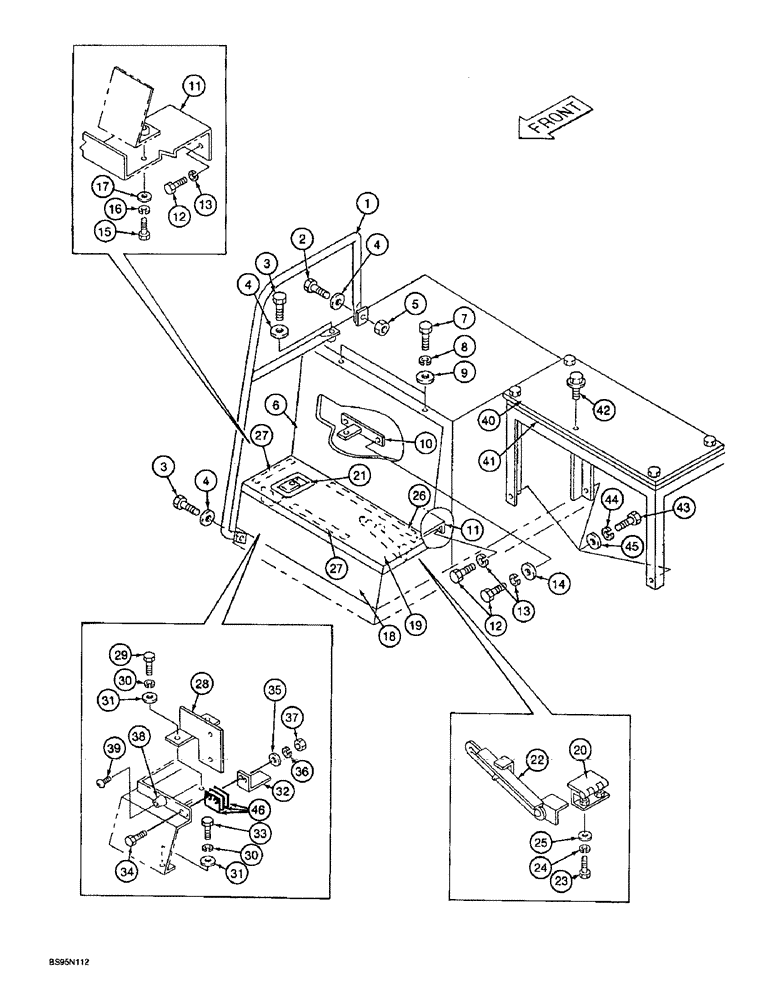

Схема запчастей Case 9010 - (9-10) - UPPER STRUCTURE, TOP AND FRONT COVERS (09) - CHASSIS
40
9
27
2
44
4
11
23
36
5
43
14
37
29
13
8
11
31
3
22
12
4
46
4
21
32
41
45
13
34
18
3
38
25
31
19
7
6
26
33
30
17
35
42
12
27
28
15
1
39
24
30
20
16
10

Артикул

Название

Примечание

Количество

1

151639A1

STAY

RAILING cover

1шт.

2

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 35 mm, grade 10.9

1шт.

3

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 25 mm, class 10.9

2шт.

4

150811A1

WASHER

flat, special 12 mm

3шт.

5

829-1412

NUT,M12, Cl 10.9

hex 12 mm - 1.75, class 10

1шт.

6

151711A1

COVER

front, lower

1шт.

7

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 25 mm, class 10.9

2шт.

8

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

10

152293A1

BRACKET

storage

1шт.

11

152873A1

BRACKET

cover

1шт.

12

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

hex, full threads 8 - 1.25 x 16 mm, class 10.9

4шт.

13

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat 9 x 17 x 1.6 mm

2шт.

15

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 25 mm, class 10.9

2шт.

16

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

17

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

18

151717A1

COVER

front, lower

1шт.

19

151562A1

COVER

front lid, Includes: Ref. 20,21

1шт.

20

152633A1

HINGE

cover

2шт.

21

150938A1

LOCK

LATCH recessed

1шт.

22

151467A1

STAY

SLIDE cover rail

1шт.

23

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

hex, full threads 6 - 1.0 x 16 mm, class 10.9

4шт.

24

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

25

153360A1

WASHER

flat, special

4шт.

26

151790A1

CUSHION ASSY.

PAD rubber 600 mm long

1шт.

27

150393A1

CUSHION ASSY.

PAD rubber 130 mm long

2шт.

28

152298A1

BRACKET

cover

1шт.

29

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 30 mm, class 10.9

2шт.

30

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

31

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

32

152739A1

BRACKET

support

1шт.

33

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 25 mm, class 10.9

2шт.

34

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

hex, full threads 8 - 1.25 x 20 mm, class 10.9

2шт.

35

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat 9 x 17 x 1.6 mm

2шт.

36

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

37

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

2шт.

38

152857A1

CUSHION ASSY.

BUMPER rubber, front cover

1шт.

39

840-1412

SCREW,Hex Skt, M4 x 12mm, Cl 4.8

- machine, pan Phillips, 4 - 0.7 x 12 mm

1шт.

40

151746A1

COVER

upper center

1шт.

41

151743A1

FRAME ASSY

FRAME center

1шт.

42

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, access cover

5шт.

43

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 25 mm, class 10.9

3шт.

44

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

3шт.

45

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

46

158749A1

SHIM

PLATE shim 0.05 inch (1.2 mm) thick

1шт.

46

158750A1

SHIM

PLATE shim 0.09 inch (2.3 mm) thick

1шт.

46

152719A1

SHIM

PLATE shim 0.13 inch (3.30 mm) thick

1шт.

Выбрано товаров: 48
