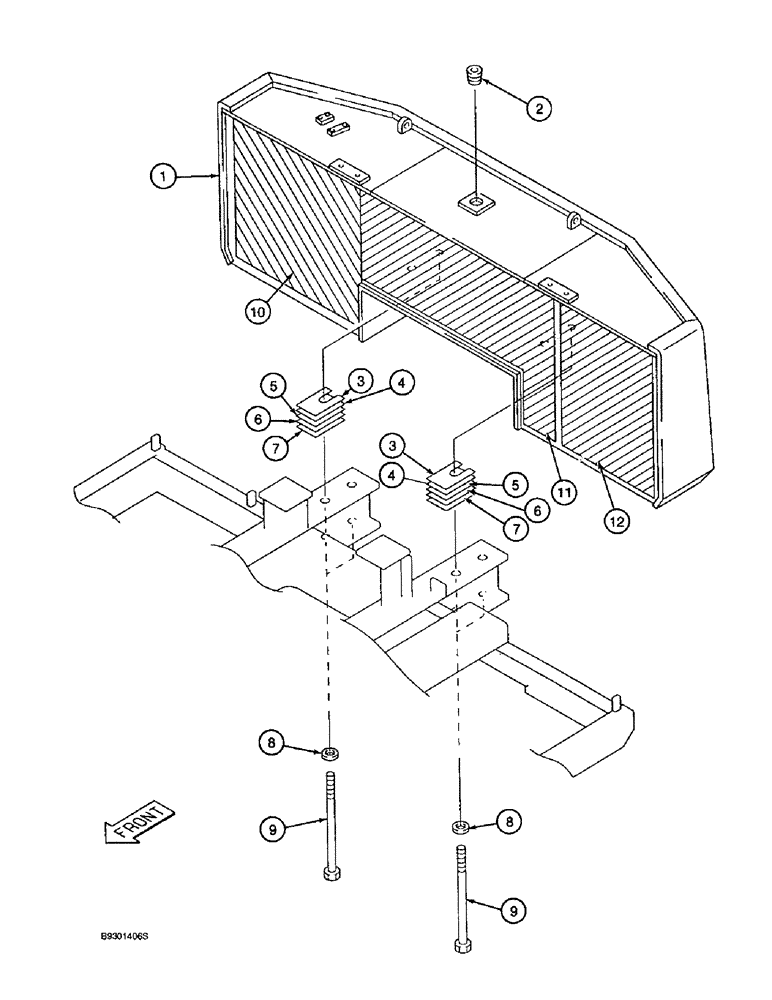

Запчасти Case 9010 (9-08) - COUNTERWEIGHT (09) - CHASSIS
5
7
6
1
2
4
4
3
3
9
11
7
9
8
6
8
12
10
5
№
Артикул
Название
Примечание
Количество
1
151230A1
WEIGHT
COUNTERWEIGHT rear
1шт.
2
150139A1
PLUG
special rubber
1шт.
3
151040A1
SHIM
counterweight 0.03 inch thick
1шт.
4
151043A1
SHIM
counterweight 0.05 inch thick
1шт.
5
151045A1
SHIM
counterweight 0.09 inch thick
1шт.
6
151048A1
SHIM
counterweight 0.18 inch thick
1шт.
7
151245A1
SHIM
counterweight 0.24 inch thick
1шт.
8
150189A1
WASHER
flat, special, 27 mm
4шт.
9
150711A1
SPECIAL BOLT,Spcl, Hex, M27 x 3 x 250mm
BOLT hex, special
4шт.
10
150954A1
INSULATOR
PAD counterweight mounting right-hand
1шт.
11
150957A1
INSULATOR
PAD counterweight mounting center
1шт.
12
150951A1
INSULATOR
PAD counterweight mounting left-hand
1шт.
Выбрано товаров: 12
