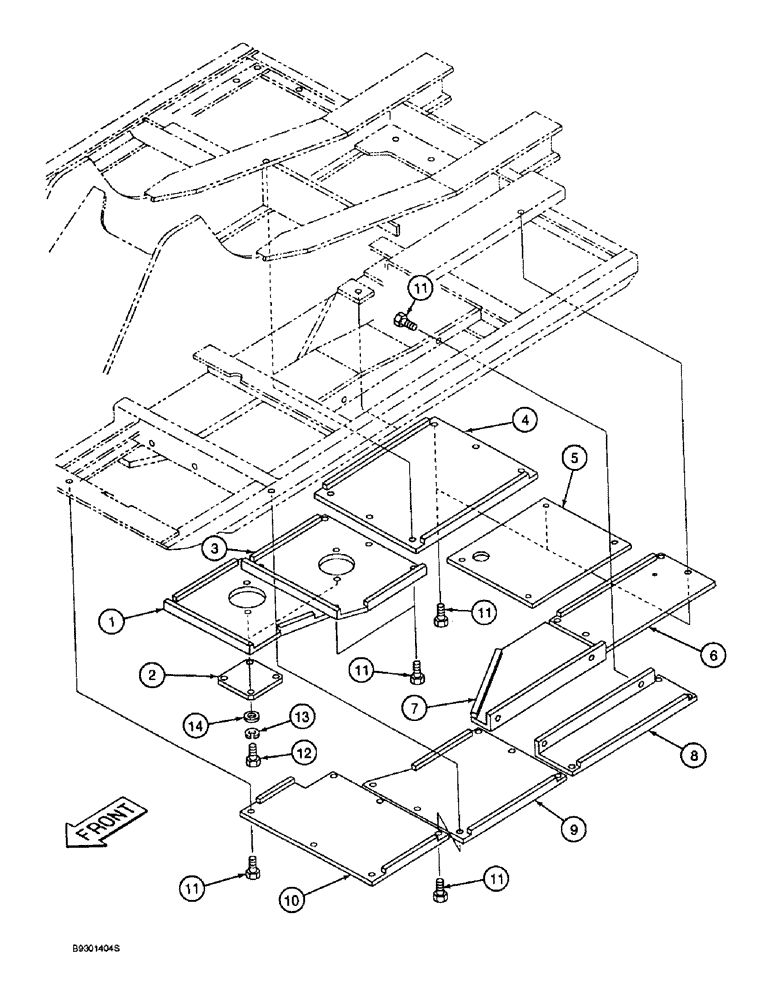

Запчасти Case 9010 (9-06) - TURNTABLE GUARDS (09) - CHASSIS

1

150757A1

COVER

GUARD turntable right-hand front

1шт.

2

150222A1

COVER

access turntable, was 150761A1

2шт.

3

150753A1

COVER

GUARD turntable right-hand center

1шт.

4

150946A1

COVER

GUARD turntable right-hand rear

1шт.

5

158630A1

GUARD

turntable rear center, was 150942A1

1шт.

6

150941A1

COVER

GUARD turntable left-hand rear

1шт.

7

150771A1

COVER

GUARD turntable left-hand, angled, inner

1шт.

8

150769A1

COVER

GUARD turntable left-hand, rectangle, outer

1шт.

9

150766A1

COVER

GUARD turntable left-hand center

1шт.

10

150765A1

COVER

GUARD turntable left-hand front

1шт.

11

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special x 30 mm, class 10.9

31шт.

12

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 30 mm, class 10.9

8шт.

13

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

8шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.
