(9-04) - TURNTABLE

Запчасти Case 9010 (9-04) - TURNTABLE (09) - CHASSIS

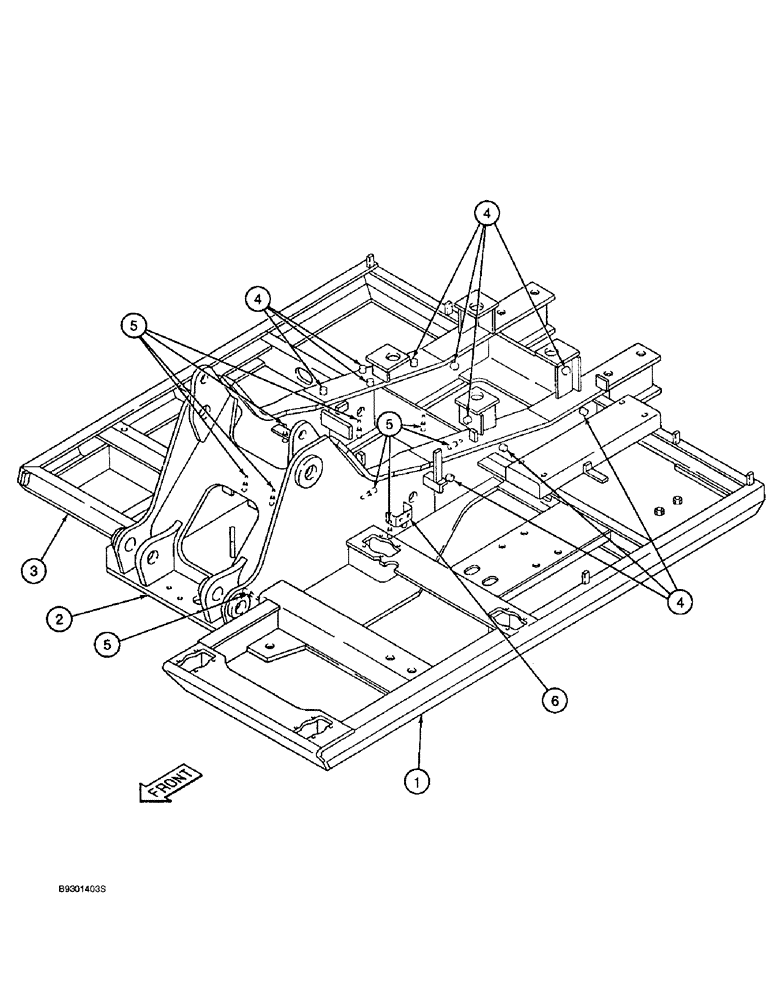

Схема запчастей Case 9010 - (9-04) - TURNTABLE (09) - CHASSIS
2
4
6
5
5
1
9
5
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

151219A1

FRAME ASSY

TURNTABLE, 9010 excavator, Includes: Ref. 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

PLATFORM turntable left-hand, was 151226A11

1шт.

2

NSS

NOT SOLD SEPARAT

FRAME boom mounting was 151223A11

1шт.

3

NSS

NOT SOLD SEPARAT

PLATFORM turntable right-hand, was 150924A11

1шт.

4

150508A1

BOSS

BLOCK retaining, tube clamp (weld-on)

11шт.

5

150486A1

CLIP

harness

9шт.

6

150835A1

BRACKET

mounting, weld on

1шт.
