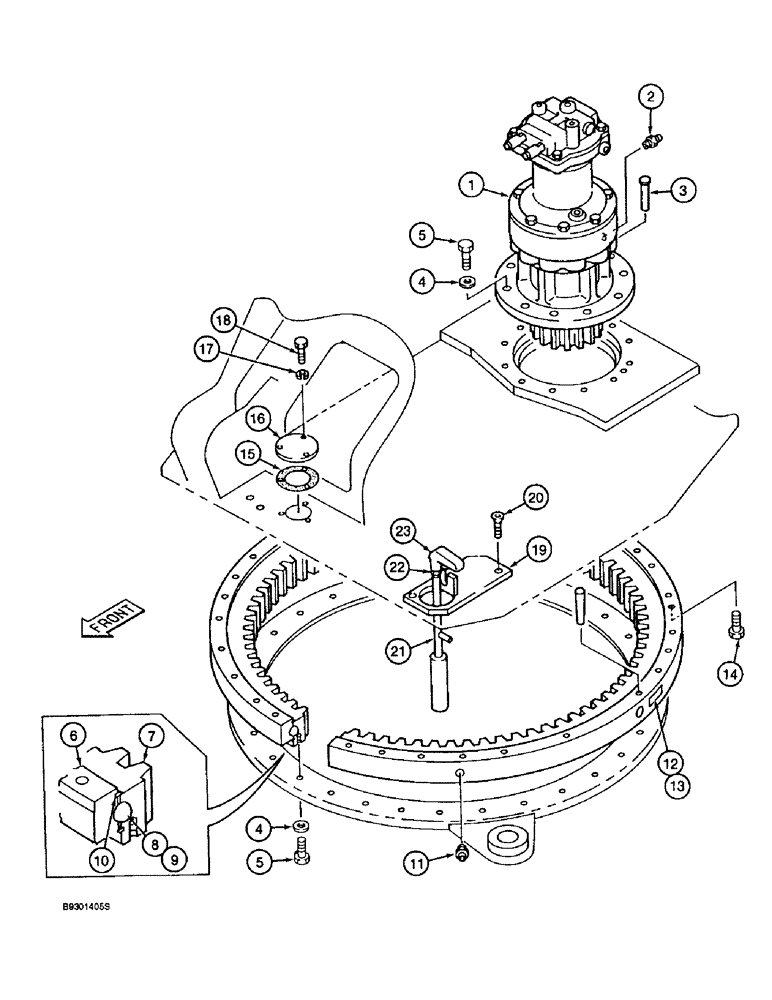

Запчасти Case 9010 (9-02) - TURNTABLE BEARING (09) - CHASSIS

1

150157A1

MOTOR

DRIVE ASSEMBLY swing parts list Figures 8-52 - 8-56

1шт.

2

153630A1

LUBE NIPPLE

FITTING grease, straight

1шт.

3

150036A1

HEADED PIN,20mm OD x 60mm L

PIN alignment headed

1шт.

4

150991A1

WASHER

flat, special 16 mm

45шт.

5

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

45шт.

150481A1

BEARING ASSY

ASSEMBLY turntable, Includes: 6-13

1шт.

6

150477A1

RACE

outer bearing

1шт.

7

150473A1

RACE

inner bearing

1шт.

8

150734A1

BALL

bearing

133шт.

9

150728A1

SPACER

nylon

133шт.

10

150470A1

SEALING RING

RING seal

2шт.

11

150205A1

NIPPLE, LUBE

FITTING grease, straight

3шт.

12

NSS

NOT SOLD SEPARAT

PLATE name

1шт.

13

NSS

NOT SOLD SEPARAT

RIVET plate mounting

4шт.

14

828-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

28шт.

15

150370A1

PACKING

GASKET access cover

1шт.

16

150368A1

PLATE

COVER access, turntable bearing

1шт.

17

892-10008

LOCK WASHER,M8

WASHER - lock, 8 mm

3шт.

18

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

BOLT hex, full threads, 8 - 1.25 x 20 mm, class 10.9

3шт.

19

150020A1

BRACKET

swing lock pin

1шт.

20

150403A1

SCREW,Spcl, Flat Hd Csk, M10 x 20mm

hex socket, flat head 10 - 1.5 x 20 mm special

2шт.

21

150181A1

PIN

swing lock

1шт.

22

150373A1

NUT

hex, 12 mm - 1.25, class 12.9 jam, special

1шт.

23

150347A1

KNOB

HANDLE control swing lock

1шт.
