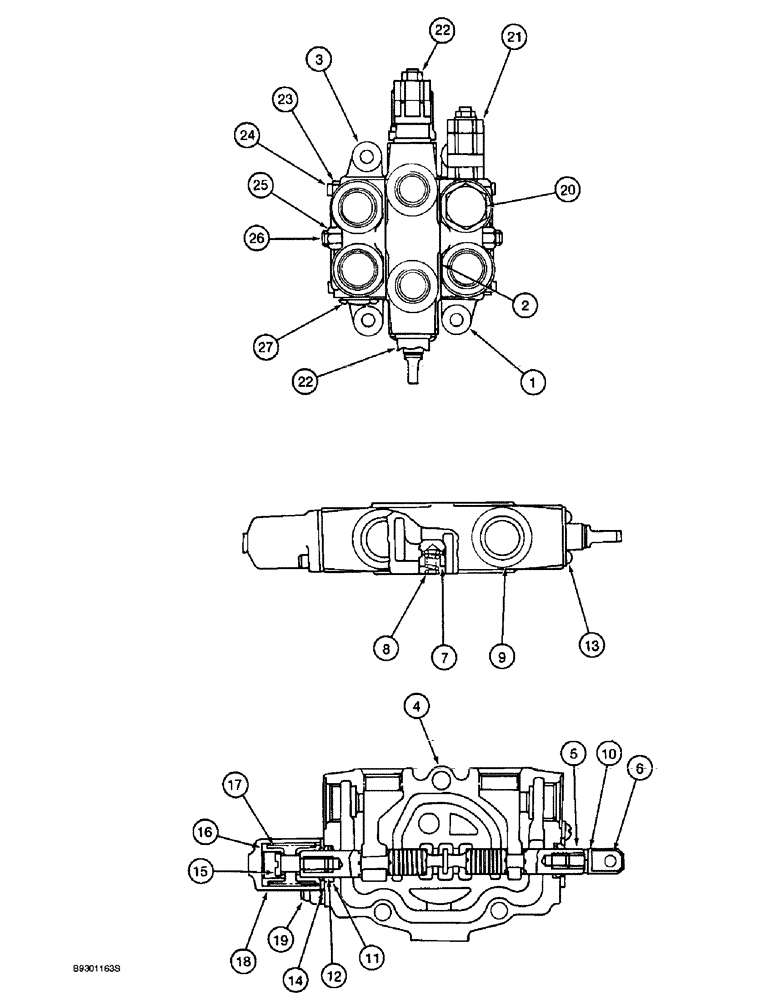

Запчасти Case 9010 (8-86) - 151414A1 AUXILIARY CONTROL VALVE ASSEMBLY (08) - HYDRAULICS

151414A1

VALVE, CONTROL

VALVE ASSEMBLY control, Includes: P/N 155753A1 and Ref. 1-27

1шт.

155753A1

VALVE

SECTION ASSEMBLY inlet, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BODY inlet section

1шт.

2

153857A1

O-RING

between section

1шт.

3

156275A1

SPOOL

SECTION ASSEMBLY outlet

1шт.

155748A1

VALVE

SECTION ASSEMBLY auxiliary, Includes: Ref. 4-19

1шт.

4

NSS

NOT SOLD SEPARAT

BODY auxiliary section

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL auxiliary section

1шт.

6

156241A1

EYE

linkage attachment

1шт.

7

153877A1

VALVE POPPET

1шт.

8

153878A1

SPRING

compression

1шт.

9

153857A1

O-RING

between section

1шт.

10

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

WASHER lock 10 mm

1шт.

11

155293A1

SEAL

spool

2шт.

12

153914A1

WIPER

spool

2шт.

13

156161A1

SET SCREW

slotted, special

2шт.

14

155554A1

PLATE

retainer and wiper retaining

2шт.

15

156160A1

BOLT

slotted, special spool end

1шт.

16

156010A1

SEAT

spring

2шт.

17

156012A1

SPRING

compression

1шт.

18

156242A1

COVER

valve

1шт.

19

156162A1

BOLT,Hex Skt

hex socket cover retaining

2шт.

20

155453A1

PLUG

port

1шт.

21

155743A1

VALVE, PRESSURE RELI

VALVE relief

1шт.

22

155745A1

VALVE PRESSURE RELIE

VALVE relief parts list Figure 8-67A

2шт.

23

153880A1

NUT

hex, special

4шт.

24

156173A1

STUD

threaded section tie

2шт.

25

153881A1

NUT

hex, special

2шт.

26

156172A1

STUD

threaded section tie

1шт.

27

155454A1

PLUG

hydraulic port

1шт.
