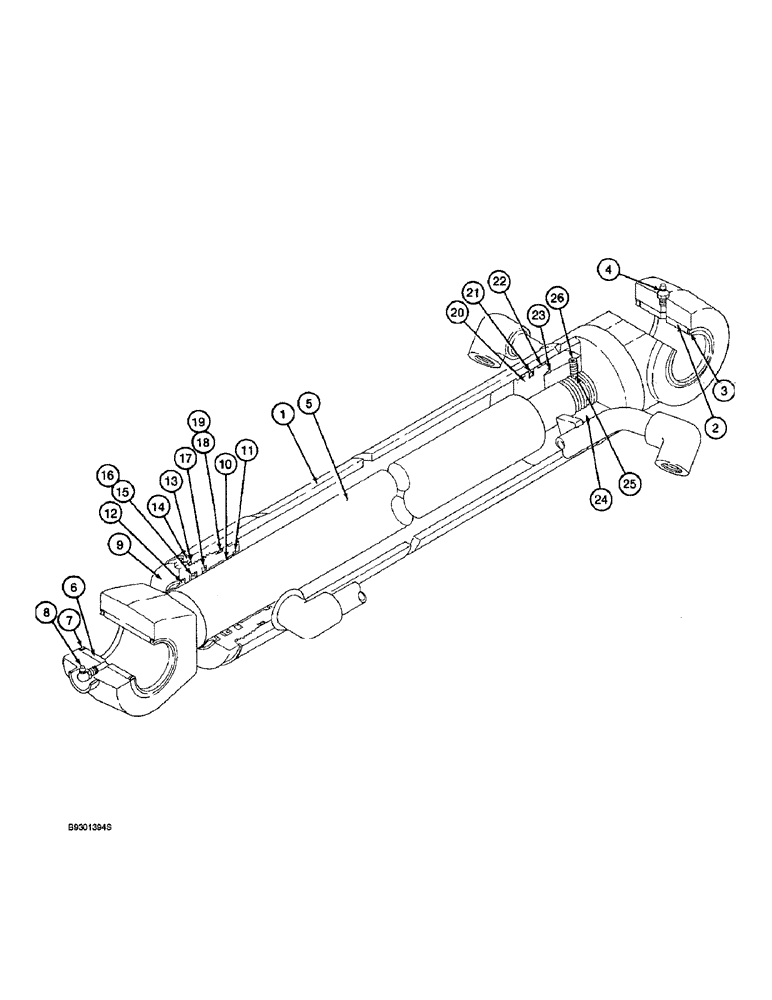

Запчасти Case 9010 (8-84) - BUCKET CYLINDER (08) - HYDRAULICS

150661A1

CYLINDER ASSY.

CYLINDER ASSEMBLY 4-1/8 (105) ID x 35 inch (890 mm) stroke bucket, Includes: P/N 155862A1 and Ref. 1-26

1шт.

155862A1

HYD TUBE

TUBE ASSEMBLY cylinder, Includes: Ref. 1,2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

155401A1

PIN

BUSHING mounting pin

1шт.

3

155119A1

BACK-UP RING

WIPER mounting pin

2шт.

4

153630A1

LUBE NIPPLE

FITTING grease, straight

1шт.

155867A1

ROD ASSY.

ROD ASSEMBLY cylinder, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

ROD cylinder

1шт.

6

155400A1

BUSHING

mounting pin

1шт.

7

155113A1

SHAFT SEAL

WIPER mounting pin

2шт.

8

153630A1

LUBE NIPPLE

FITTING grease, straight

1шт.

155872A1

GLAND

ASSEMBLY cylinder, Includes: Ref. 9-11

1шт.

9

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

10

155415A1

BUSHING

gland

1шт.

11

155698A1

RING, SNAP

RING snap

1шт.

12

158035A1

WIPER SEAL

WIPER rod

1шт.

Part of Seal Kit P/N 158171A1

1шт.

13

154731A1

O-RING

, Serial Range: O-RING-tube

1шт.

Part of Seal Kit P/N 158171A1

1шт.

14

156224A1

LOCK WASHER

WASHER lock

1шт.

Part of Seal Kit P/N 158171A1

1шт.

15

155230A1

BACK-UP RING

RING backup

1шт.

Part of Seal Kit P/N 158171A1

1шт.

16

155129A1

RING

SEAL U-cup piston rod

1шт.

Part of Seal Kit P/N 158171A1

1шт.

17

155133A1

SEALING RING

RING buffer piston rod

1шт.

Part of Seal Kit P/N 158171A1

1шт.

18

154139A1

BACK-UP RING

RING backup

1шт.

Part of Seal Kit P/N 158171A1

1шт.

19

154712A1

O-RING

, Serial Range: O-RING-tube

1шт.

Part of Seal Kit P/N 158171A1

1шт.

20

155972A1

PISTON

cylinder

1шт.

21

155330A1

SEALING RING

SEAL piston

1шт.

Part of Seal Kit P/N 158171A1

1шт.

22

155329A1

BACK-UP RING

RING wear piston

2шт.

Part of Seal Kit P/N 158171A1

1шт.

23

155718A1

SHIM

special

1шт.

Part of Seal Kit P/N 158171A1

1шт.

24

156217A1

NUT

special

1шт.

25

155976A1

BALL

steel

1шт.

26

156222A1

SCREW

set

1шт.

158171A1

SEAL KIT

KIT seal Includes: Ref. 12-19 and 21-23, Replaces: P/N 158171A1

1шт.
