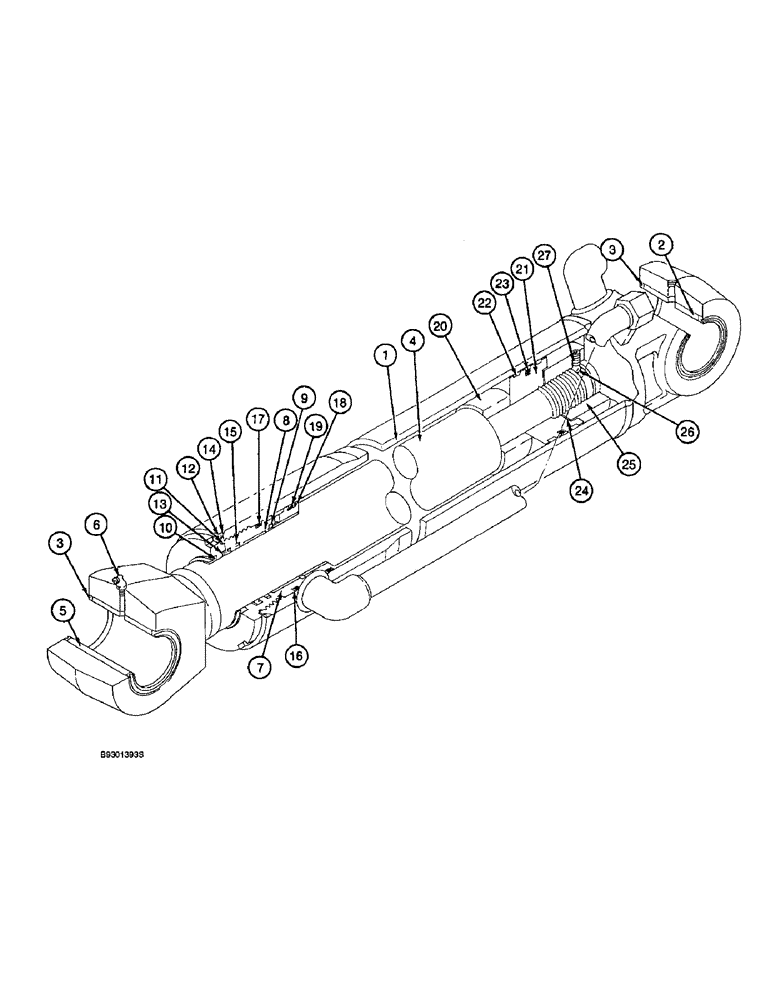

Запчасти Case 9010 (8-82) - ARM CYLINDER (08) - HYDRAULICS

150659A1

CYLINDER

ASSEMBLY 4-3/4 (120) ID x 50-1/2 inch (1282 mm) stroke arm, Includes: P/N 155861A1 and Ref. 1-27

1шт.

155861A1

HYD TUBE

TUBE ASSEMBLY cylinder, Includes: Ref. 1,2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

155414A1

BUSHING

mounting pin

1шт.

3

155113A1

SHAFT SEAL

WIPER mounting pin

4шт.

155866A1

ROD ASSY.

ROD ASSEMBLY cylinder, Includes: Ref. 4,5

1шт.

4

NSS

NOT SOLD SEPARAT

ROD cylinder

1шт.

5

155414A1

BUSHING

mounting pin

1шт.

6

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.

155871A1

GLAND

ASSEMBLY cylinder, Includes: Ref. 7-9

1шт.

7

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

8

155416A1

BUSHING

gland

1шт.

9

155696A1

RING, SNAP

RING snap

1шт.

10

158033A1

WIPER SEAL

WIPER piston rod

1шт.

Part of Seal Kit P/N 158800A1

1шт.

11

154759A1

O-RING

, Serial Range: O-RING-tube

1шт.

Part of Seal Kit P/N 158800A1

1шт.

12

156210A1

LOCK WASHER

WASHER lock

1шт.

Part of Seal Kit P/N 158800A1

1шт.

13

155241A1

BACK-UP RING

RING backup

1шт.

Part of Seal Kit P/N 158800A1

1шт.

14

155132A1

RING,80mm ID x 95mm OD x 9mm Thk

SEAL U-cup piston rod

1шт.

Part of Seal Kit P/N 158800A1

1шт.

15

155136A1

SCRAPER RING

RING buffer piston rod

1шт.

Part of Seal Kit P/N 158800A1

1шт.

16

154160A1

BACK-UP RING

RING backup

1шт.

Part of Seal Kit P/N 158800A1

1шт.

17

154740A1

O-RING

, Serial Range: gland-tube

1шт.

Part of Seal Kit P/N 158800A1

1шт.

18

155250A1

BACK-UP RING

RING backup

2шт.

Part of Seal Kit P/N 158800A1

1шт.

19

154732A1

O-RING

, Serial Range: gland-tube

1шт.

Part of Seal Kit P/N 158800A1

1шт.

20

155725A1

BUSHING

BEARING cushion

1шт.

21

155971A1

PISTON

cylinder

1шт.

22

155328A1

BACK-UP RING

RING wear piston, outer

2шт.

Part of Seal Kit P/N 158800A1

1шт.

23

155313A1

SEALING RING

SEAL piston

1шт.

Part of Seal Kit P/N 158800A1

1шт.

24

155719A1

SHIM

special

1шт.

Part of Seal Kit P/N 158800A1

1шт.

25

156218A1

NUT

special

1шт.

26

155977A1

BALL

steel

1шт.

27

156223A1

SET SCREW

SCREW set

1шт.

158800A1

SEAL KIT

seal Includes: Ref. 10-19 and 22-24, Replaces: P/N 158034A1

1шт.
