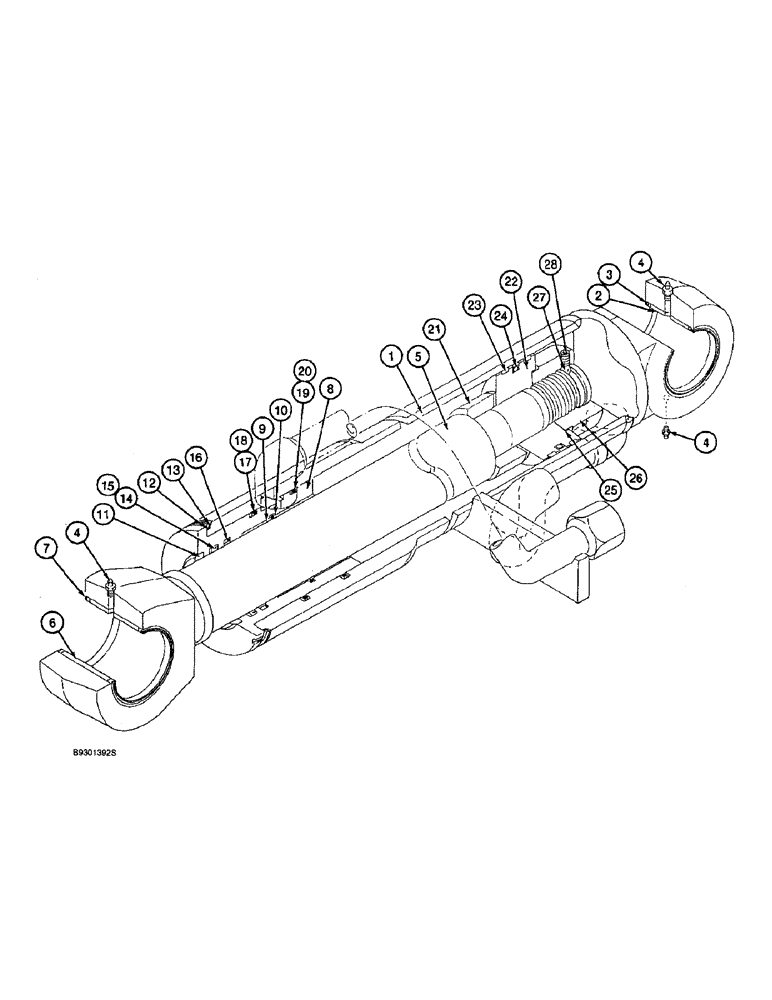

Запчасти Case 9010 (8-80) - BOOM CYLINDERS (08) - HYDRAULICS

150654A1

CYLINDER

ASSEMBLY 4-5/16 (110) ID x 41-9/16 inch (1055 mm) stroke boom, Includes: P/N 155860A1 and Ref. 1-28

2шт.

155860A1

HYD TUBE

TUBE ASSEMBLY cylinder, Includes: Ref. 1,2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

2

155412A1

PIN

BUSHING mounting pin

1шт.

3

155119A1

BACK-UP RING

WIPER mounting pin

2шт.

4

153630A1

LUBE NIPPLE

FITTING grease, straight

3шт.

155865A1

ROD ASSY.

ROD ASSEMBLY cylinder, Includes: Ref. 5,6

1шт.

5

NSS

NOT SOLD SEPARAT

ROD cylinder

1шт.

6

155413A1

BUSHING

mounting pin

1шт.

7

155116A1

SHAFT SEAL

WIPER mounting pin

2шт.

155870A1

GLAND

ASSEMBLY cylinder, Includes: Ref. 8-10

1шт.

8

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

9

155417A1

BUSHING

gland

1шт.

10

155699A1

RING, SNAP

RING snap

1шт.

11

160784A1

WIPER SEAL

WIPER piston rod

1шт.

Part of Seal Kit P/N 158799A1

1шт.

12

154739A1

O-RING

, Serial Range: O-RING-tube

1шт.

Part of Seal Kit P/N 158799A1

1шт.

13

156213A1

LOCK WASHER

WASHER lock

1шт.

Part of Seal Kit P/N 158799A1

1шт.

14

155231A1

BACK-UP RING

RING backup

1шт.

Part of Seal Kit P/N 158799A1

1шт.

15

155130A1

RING

SEAL U-cup piston rod

1шт.

Part of Seal Kit P/N 158799A1

1шт.

16

155134A1

SCRAPER RING

RING buffer piston rod

1шт.

Part of Seal Kit P/N 158799A1

1шт.

17

154145A1

BACK-UP RING

RING backup

1шт.

Part of Seal Kit P/N 158799A1

1шт.

18

154720A1

O-RING

, Serial Range: O-RING-tube

1шт.

Part of Seal Kit P/N 158799A1

1шт.

19

155239A1

BACK-UP RING

RING backup

2шт.

Part of Seal Kit P/N 158799A1

1шт.

20

154712A1

O-RING

, Serial Range: O-RING-tube

1шт.

Part of Seal Kit P/N 158799A1

1шт.

21

155724A1

BUSHING

BEARING cushion

1шт.

22

155970A1

PISTON

cylinder

1шт.

23

155305A1

BACK-UP RING

RING wear piston, outer

2шт.

Part of Seal Kit P/N 158799A1

1шт.

24

155310A1

SEALING RING

SEAL piston

1шт.

Part of Seal Kit P/N 158799A1

1шт.

25

155718A1

SHIM

special

1шт.

Part of Seal Kit P/N 158799A1

1шт.

26

156217A1

NUT

special

1шт.

27

155976A1

BALL

steel

1шт.

28

156222A1

SCREW

set

1шт.

158799A1

SEAL KIT

seal , Includes: Ref. 11-20 and 23-25, Replaces: P/N 158032A1

1шт.
