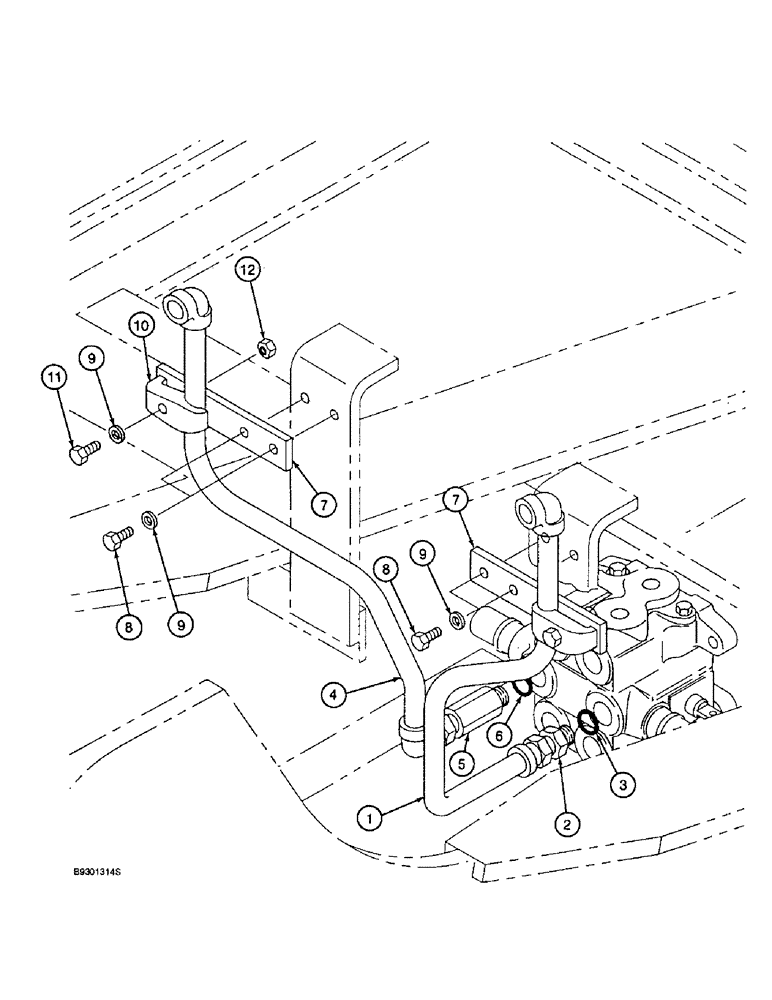

Запчасти Case 9010 (8-78) - AUXILIARY VALVE ATTACHMENT LINE (08) - HYDRAULICS

1

156665A1

TUBE,498, 167.2 mm Length

at auxiliary control valve left-hand center port

1шт.

2

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER straight hydraulic, left-hand tube, Includes: Ref. 3

1шт.

3

154503A1

O-RING

adapter

1шт.

4

156663A1

TUBE ASSY.,498, 275.5 mm Length

TUBE at auxiliary control valve right-hand center port

1шт.

5

156664A1

STUD

ADAPTER straight, special at right-hand port, Includes: Ref. 6

1шт.

6

154503A1

O-RING

adapter

1шт.

7

156662A1

BRACKET

mounting

2шт.

8

626-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 30 mm, class 10.9

4шт.

9

150988A1

WASHER

flat, special 12 mm

6шт.

10

151486A1

CLAMP BRACKET

CLAMP tube

2шт.

11

828-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

hex 12 - 1.75 x 65 mm, class 10.9

2шт.

12

829-1312

NUT,M12 x 1.75, Cl 10

hex 12 mm - 1.75, class 10

2шт.
