Запчасти Case 9010 (8-76) - AUXILIARY EQUIPMENT CONTROLS (08) - HYDRAULICS

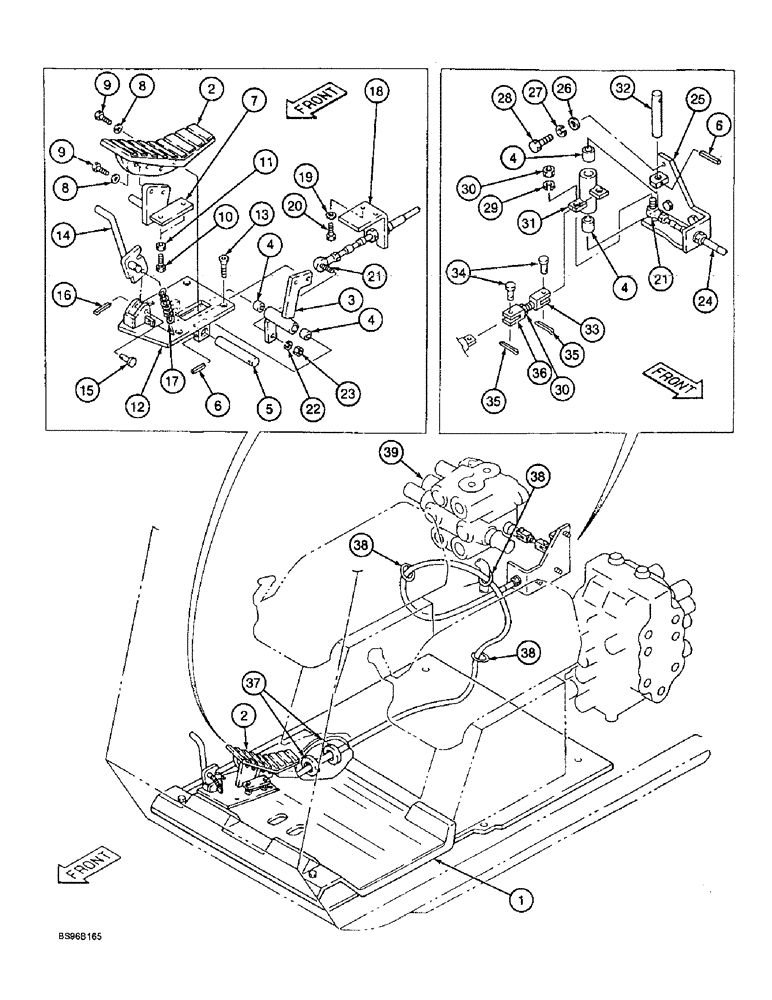

Схема запчастей Case 9010 - (8-76) - AUXILIARY EQUIPMENT CONTROLS (08) - HYDRAULICS
17
30
29
14
36
3
38
24
2
35
25
10
22
21
17
4
36
4
9
20
35
6
12
16
1
7
33
26
10
2
39
9
8
12
4
27
32
15
37
21
5
34
23
4
30
6
31
6
38
19
26

Артикул

Название

Примечание

Количество

158609A1

KIT

auxiliary hydraulic controls, Includes: Ref. 1-38

1шт.

1

156644A1

FLOOR MAT

MAT floor inner

1шт.

2

150524A1

PEDAL

foot control auxiliary equipment

1шт.

3

156645A1

LINK ASSY.

LINK control

1шт.

4

150505A1

BEARING, NEEDLE

BEARING needle bellcrank

4шт.

5

156646A1

PIN

dowel

1шт.

6

738-1632

LOCK PIN,M6 x 32, Slotted

PIN roll, 6 x 32 mm

2шт.

7

156647A1

BRACKET

pedal

1шт.

8

150604A1

WASHER

special

4шт.

9

150555A1

BOLT,High Strength, Hex, M10 x 30mm

BOLT hex 10 - 1.5 x 30 mm, class 10.9

4шт.

10

156648A1

BOLT,Hex, M10 x 35mm, Full Thd

special

2шт.

11

156649A1

NUT

special

2шт.

12

156650A1

BRACKET

mounting, Serial Range: pedal-floor

1шт.

13

150403A1

SCREW,Spcl, Flat Hd Csk, M10 x 20mm

hex socket, flat head 10 - 1.5 x 20 mm special

4шт.

14

156651A1

LEVER

control

1шт.

15

156652A1

HEADED PIN

PIN headed

1шт.

16

130003

COTTER PIN,3mm OD x 30mm OAL

Replaces 156467A1

1шт.

17

156653A1

TENSION SPRING

SPRING tension

1шт.

18

156654A1

BRACKET

cable

1шт.

19

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

2шт.

20

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

21

151963A1

END

CONNECTOR cable end rod end

2шт.

22

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

23

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10, Auxiliary valve

1шт.

25

156656A1

BRACKET

cable support at auxiliary valve

1шт.

26

150988A1

WASHER

flat, special 12 mm

3шт.

27

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

3шт.

28

626-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

hex, full threads 12 - 1.75 x 25 mm, class 10.9

3шт.

29

892-10008

LOCK WASHER,M8

WASHER - lock, 8 mm

1шт.

30

829-1308

NUT,M8, Cl 10

- hex, 8 mm - 1.25, Cl 10

2шт.

31

156657A1

LINK ASSY.

LINK control

1шт.

32

156658A1

PIN

dowel

1шт.

33

156659A1

YOKE

CLEVIS cable end

1шт.

34

156660A1

HEADED PIN

PIN headed

2шт.

35

153077A1

COTTER PIN

CLIP hair pin type

2шт.

36

156661A1

YOKE

CLEVIS cable end

1шт.

37

152529A1

GROMMET

rubber

2шт.

38

150498A1

MOUNTING CLIP

STRAP tie

1шт.

39

151414A1

VALVE, CONTROL

VALVE ASSEMBLY control auxiliary equipment, parts list Figure 8-58

1шт.

Выбрано товаров: 39
