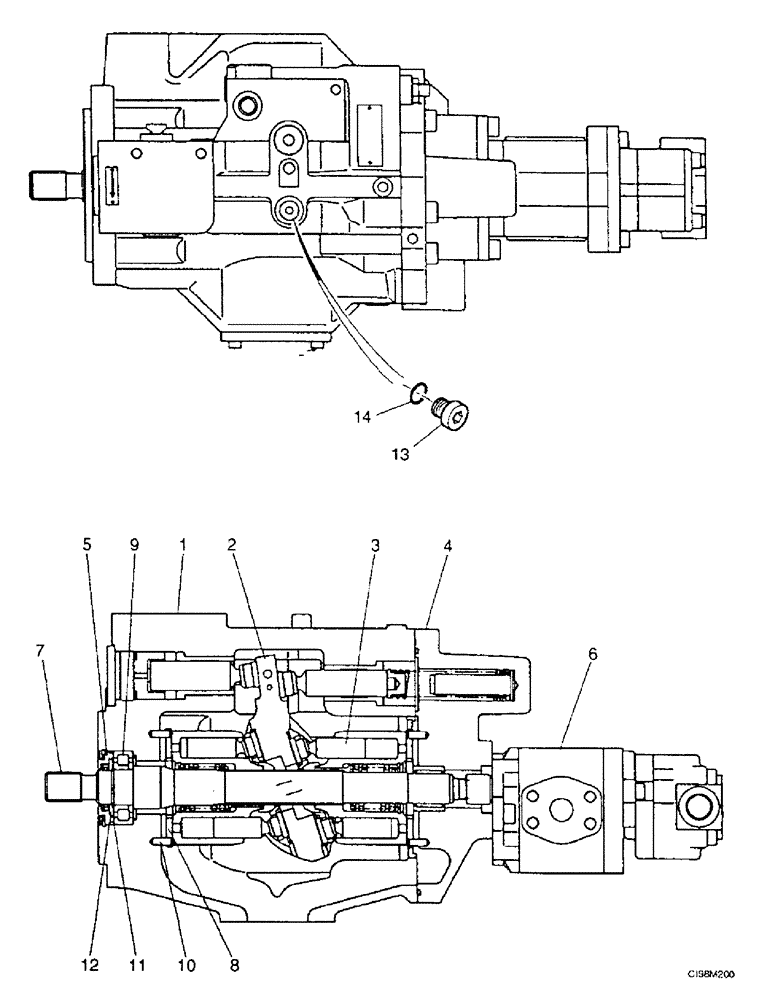

Запчасти Case 9007B (8-060) - HYDRAULIC PUMP (08) - HYDRAULICS

167684A1

PUMP, HYDRAULIC

Consists Of Ref. Numbers : 1-14

1шт.

167684A1R

REMAN-HYD PUMP

9007B CASE CRAWLER EXCAVATOR

1шт.

167684A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

REF

INSTRUCTION

Body, See Figure: 8-62

1шт.

2

REF

INSTRUCTION

Cam Assy, See Figure : 8-62

1шт.

3

167395A1

ASSEMBLY

Piston, See Figure : 8-62

2шт.

4

167441A1

COVER

Cover Sheet, See Figure : 8-66

1шт.

5

167393A1

KIT

Cover, Bearing, See Figure : 8-66

1шт.

6

167396A1

HYDRAULIC PUMP

See Figure : 8-66

1шт.

7

167373A1

SHAFT

1шт.

8

167429A1

LARGE PLATE

PLATE, LARGE

1шт.

9

167420A1

BEARING, ROLLER, CYL,30 mm ID x 62 mm OD x 16 mm

Ball

1шт.

10

167378A1

COTTER PIN

Dowel

2шт.

11

167379A1

SHIM

1шт.

12

800-1128

SNAP RING,M28, Ext

Retaining

1шт.

13

167376A1

PLUG

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
