Запчасти Case 9007B (8-058C) - HYDRAULIC CIRCUIT - OFFSET BACKHOE BOOM (08) - HYDRAULICS

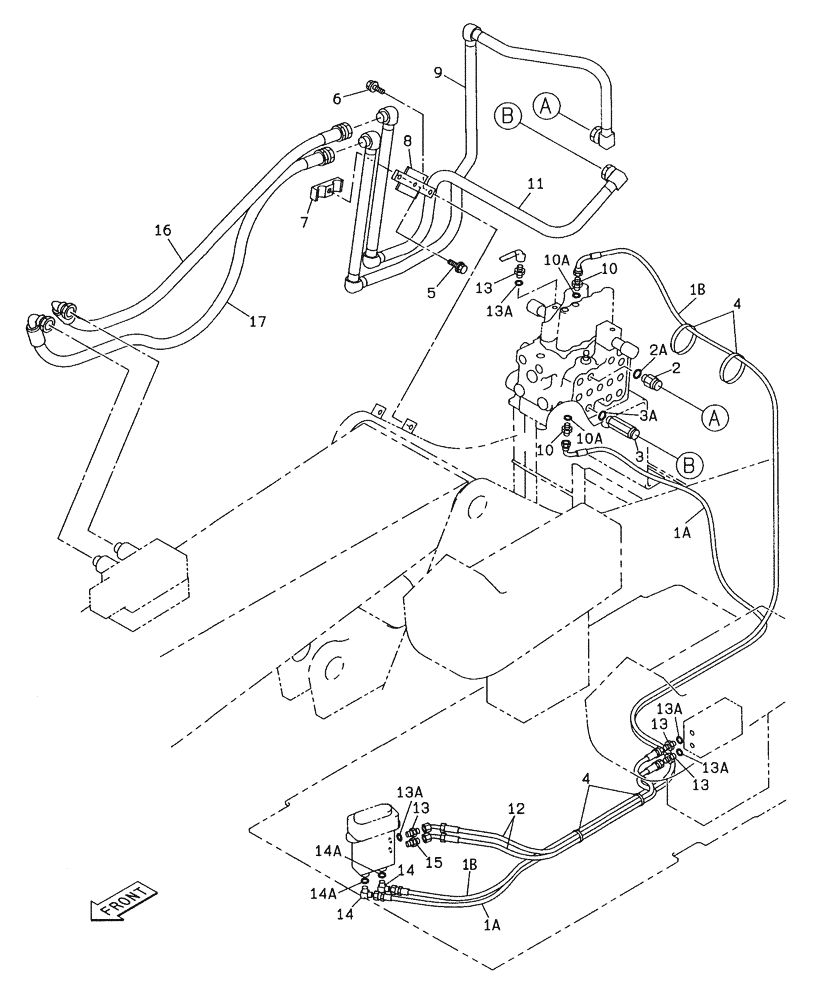

Схема запчастей Case 9007B - (8-058C) - HYDRAULIC CIRCUIT - OFFSET BACKHOE BOOM (08) - HYDRAULICS
14
7
12
1b
17
5
3
15
13
14
13a
4
13a
3a
6
2a
4
13a
8
13
14a
2
13
11
1a
10a
9
10
1a
13
1b
16
10a
13a
14a
10

Артикул

Название

Примечание

Количество

1a

161086A1

HYDRAULIC HOSE

2800 mm (110-3/4 in)

1шт.

1b

168065A1

HOSE

1шт.

2

164176A1

ADAPTER

Consists Of Ref. Number 2A

1шт.

2a

154487A1

O-RING

1шт.

3

163287A1

STUD

Consists Of Ref. Number 3A

1шт.

3a

154487A1

O-RING

1шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

5

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

6

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

7

167227A1

COLLAR

1шт.

8

167247A1

BRACKET

1шт.

9

168061A1

TUBE ASSY.

1шт.

10

153378A1

ADAPTER

Consists Of Ref. Number 10A

2шт.

10a

154475A1

O-RING

1шт.

11

168059A1

TUBE ASSY.

1шт.

12

167663A1

HYDRAULIC HOSE,6.30 mm ID x 1100.00 mm

2шт.

13

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Consists Of Ref. Number 13A

4шт.

13a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

14

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Consists Of Ref. Number 14A

2шт.

14a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

15

161841A1

HYD CONNECTOR

1шт.

16

168523A1

HYDRAULIC HOSE

1шт.

16a

159498A1

GUARD

Protection Hose

1шт.

Not illustradet

1шт.

17

168524A1

HYDRAULIC HOSE

1шт.

17a

159498A1

GUARD

Protection Hose

1шт.

Выбрано товаров: 26
