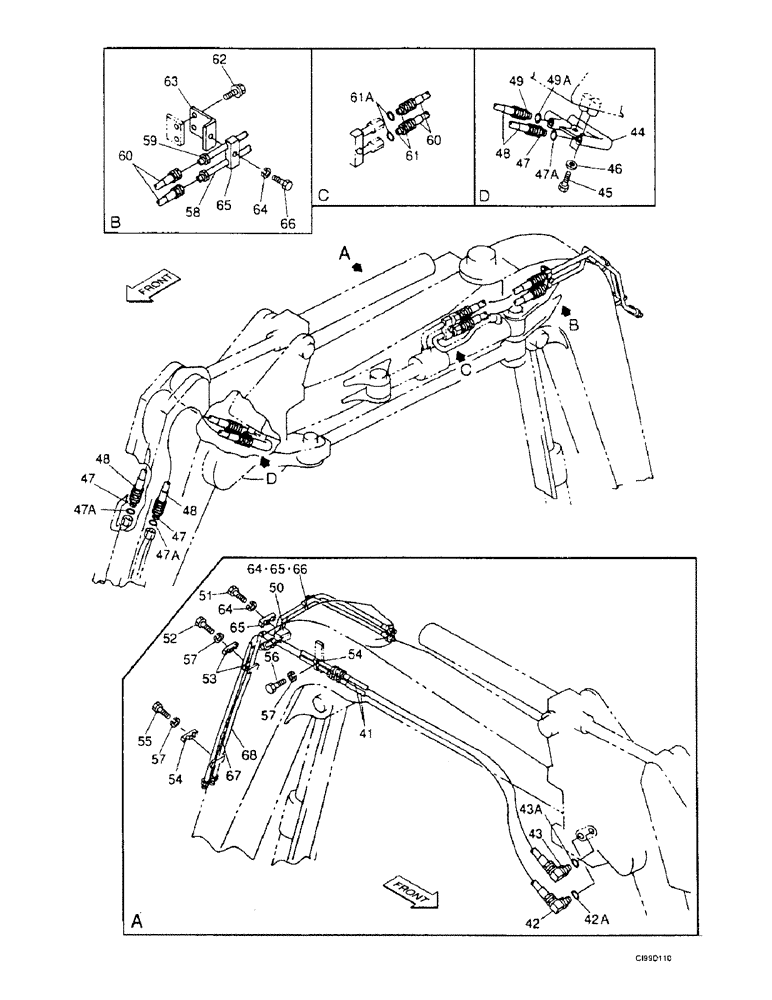

Запчасти Case 9007B (8-058B) - HYDRAULIC CIRCUIT - BUCKET CYLINDER, OFFSET BACKHOE BOOM (08) - HYDRAULICS

41

168570A1

HYDRAULIC HOSE,12.70 mm ID x 2000.00 mm

2шт.

42

159370A1

ELBOW

Consists Of Ref. Number : 42A

1шт.

42a

154487A1

O-RING

1шт.

43

159371A1

ELBOW

Consists Of Ref. Number : 43A

1шт.

43a

154503A1

O-RING

1шт.

44

168540A1

MANIFOLD VALVE

1шт.

45

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

46

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

47

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Consists Of Ref. Number : 47A

3шт.

47a

154487A1

O-RING

1шт.

48

168535A1

HYDRAULIC HOSE

1250 mm (49-1/4 in)

2шт.

49

161079A1

REDUCER

Consists Of Ref. Number : 49A

1шт.

49a

154503A1

O-RING

1шт.

50

168608A1

SPACER

1шт.

51

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

52

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

1шт.

53

167824A1

COLLAR

2шт.

54

166400A1

COLLAR

2шт.

55

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

M12 x 55; 10.9

1шт.

56

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

57

892-11012

LOCK WASHER,M12

3шт.

58

168583A1

HYD TUBE

1шт.

59

168584A1

HYD TUBE

1шт.

60

168553A1

HYDRAULIC HOSE,600.00 mm

2шт.

61

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Consists Of Ref. Number : 61A

2шт.

61a

154475A1

O-RING

1шт.

62

167893A1

BOLT

2шт.

63

168552A1

SUPPORT

1шт.

64

892-11012

LOCK WASHER,M12

3шт.

65

168551A1

COLLAR

3шт.

66

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

67

169260A1

TUBE ASSY.

1шт.

68

169261A1

TUBE ASSY.

1шт.
