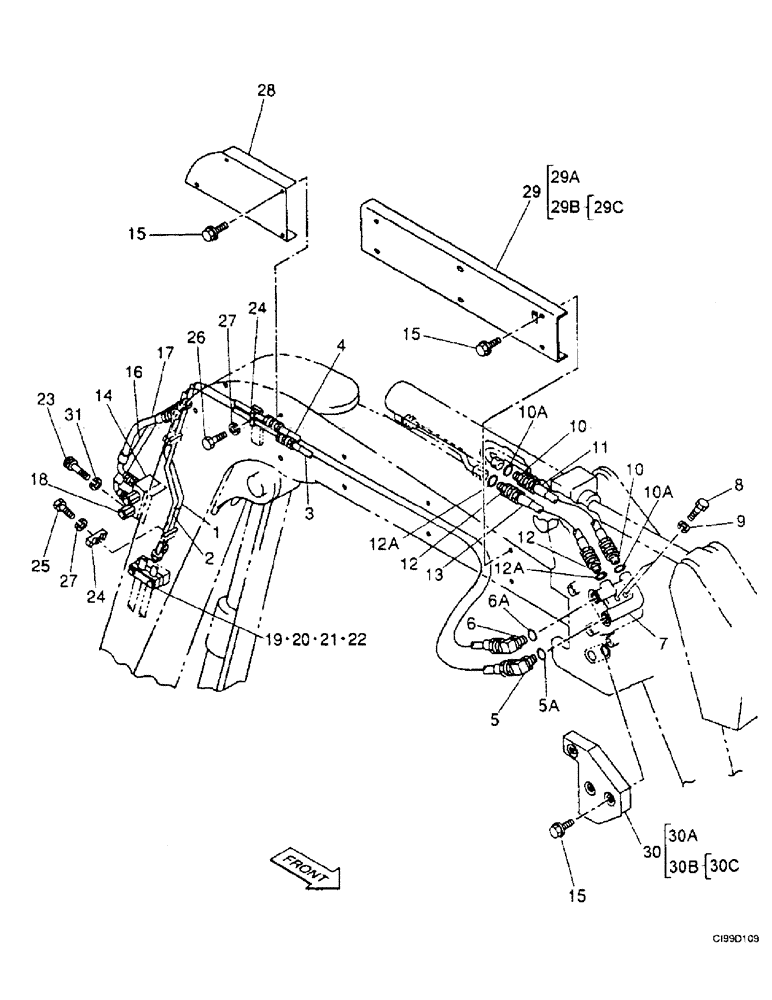

Запчасти Case 9007B (8-058A) - HYDRAULIC CIRCUIT - DIPPER CYLINDER, OFFSET BACKHOE BOOM (08) - HYDRAULICS

1

168579A1

HYD TUBE

1шт.

2

168580A1

HYD TUBE

1шт.

3

168570A1

HYDRAULIC HOSE,12.70 mm ID x 2000.00 mm

1шт.

4

168571A1

HYDRAULIC HOSE,2000.00 mm

1шт.

5

159370A1

ELBOW

Consists Of Ref. Number : 5A

1шт.

5a

154487A1

O-RING

1шт.

6

159372A1

ELBOW

Consists Of Ref. Number : 6A

1шт.

6a

154503A1

O-RING

1шт.

7

168540A1

MANIFOLD VALVE

1шт.

8

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

10

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Consists Of Ref. Number : 10A

2шт.

10a

154487A1

O-RING

1шт.

11

168542A1

HYDRAULIC HOSE

1шт.

12

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Consists Of Ref. Number : 12A

2шт.

12a

154503A1

O-RING

1шт.

13

168541A1

HYDRAULIC HOSE

1шт.

14

168607A1

MANIFOLD VALVE

1шт.

15

167893A1

BOLT

13шт.

16

168600A1

HYDRAULIC HOSE,650.00 mm

1шт.

17

168599A1

HYDRAULIC HOSE,540.00 mm

1шт.

18

156664A1

STUD

M12 x 65; 10.9

2шт.

19

168597A1

SPACER

2шт.

20

168596A1

COLLAR

2шт.

21

168598A1

PLATE, SPACER

PLATE,SPACER

1шт.

22

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

2шт.

23

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

3шт.

24

166400A1

COLLAR

2шт.

25

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

M12 x 55; 10.9

1шт.

26

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

27

892-11012

LOCK WASHER,M12

2шт.

28

168578A1

PROTECTOR

1шт.

29

168604A1

PROTECTOR

Consists Of Ref. Numbers : 29A, 29B

1шт.

29a

168569A1

PROTECTOR

1шт.

29b

168592A1

PROTECTOR

Consists Of Ref. Number : 29C

1шт.

29c

168624A1

BAR

1шт.

30

168605A1

PROTECTOR

Consists Of Ref. Numbers : 30A, 30B

1шт.

30a

168539A1

PROTECTOR

1шт.

30b

168593A1

PROTECTOR

Consists Of Ref. Number : 30C

1шт.

30c

168624A1

BAR

1шт.

31

892-11012

LOCK WASHER,M12

3шт.
