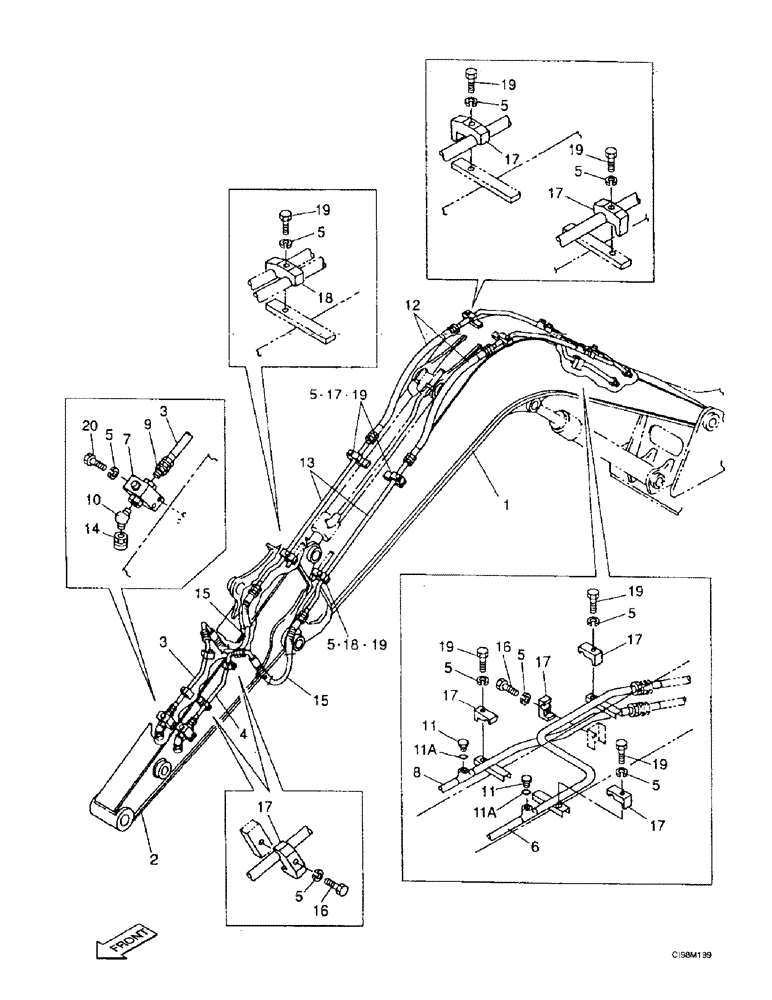

Запчасти Case 9007B (8-058) - HYDRAULIC CIRCUIT - PICK HAMMER, ATTACHMENT (08) - HYDRAULICS

1

168294A1

BOOM

See Figure : 9-68

1шт.

2

166429A1

DIPPER

Standard arm, Dipperstick : 1.74 m (68-5/8 in) See Figure : 9-70

1шт.

2

166434A1

DIPPER

Long reach arm, Dipperstick : 2.18 m (85-7/8 in) See Figure : 9-72

1шт.

3

167829A1

TUBE ASSY.

Pipe

1шт.

4

167830A1

TUBE ASSY.

Pipe

1шт.

5

892-11012

LOCK WASHER,M12

18шт.

6

167827A1

TUBE ASSY.

Pipe

1шт.

7

153692A1

VALVE

Shut-Off

2шт.

8

167826A1

TUBE ASSY.

Pipe

1шт.

9

153638A1

ADAPTER

Union

2шт.

10

152400A1

ADAPTER

Union

2шт.

11

152924A1

PLUG

Consists Of Ref. Number : 11A

2шт.

11a

154503A1

O-RING

1шт.

12

167832A1

HYDRAULIC HOSE,780.00 mm

2шт.

13

167828A1

TUBE ASSY.

Pipe

2шт.

14

153683A1

PLUG

2шт.

15

167831A1

HYDRAULIC HOSE,15.9mm ID x 900mm L

2шт.

16

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

5шт.

17

166401A1

HALF-FLANGE

Bracket

12шт.

18

167824A1

COLLAR

Bracket

2шт.

19

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

M12 x 55; 10.9

9шт.

20

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

4шт.
