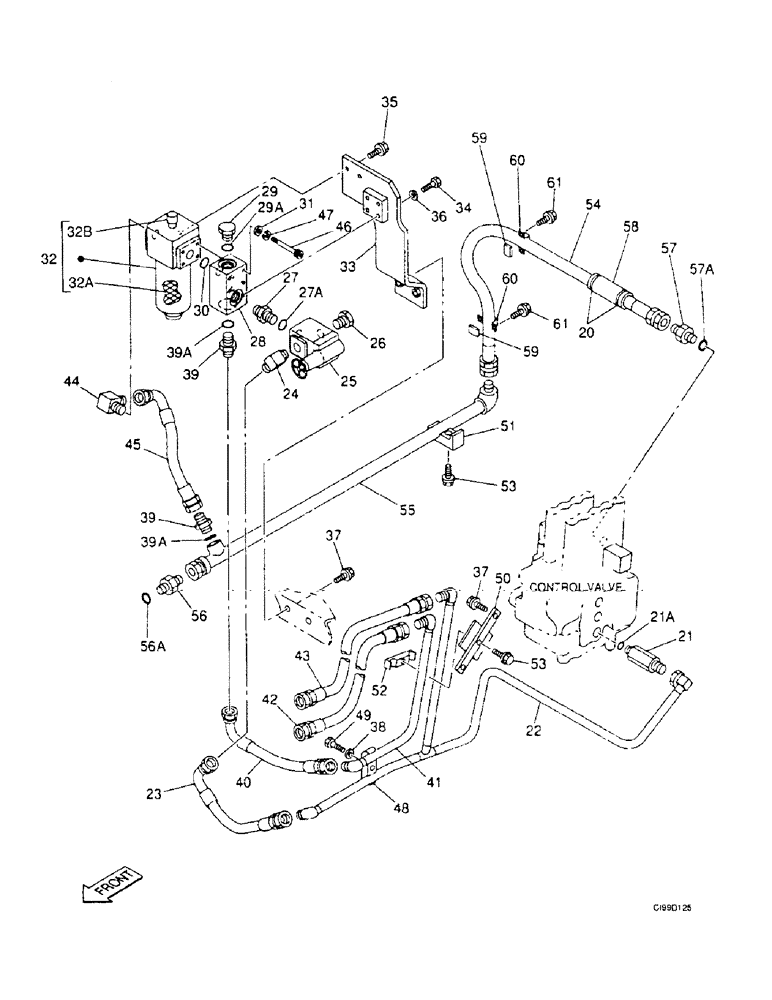

Запчасти Case 9007B (8-044) - AUX HYDRAULIC CIRCUIT - PICK HAMMER (08) - HYDRAULICS

20

150071A1

MOUNTING CLIP

2шт.

21

163287A1

STUD

Consists Of Ref. Number : 21A

1шт.

21a

154487A1

O-RING

1шт.

22

167235A1

TUBE ASSY.

1шт.

23

167237A1

HYDRAULIC HOSE

1шт.

24

153622A1

ADAPTER

1шт.

25

159490A1

VALVE

1шт.

26

151002A1

PLUG

1шт.

27

157685A1

HYD CONNECTOR

Consists Of Ref. Number : 27A

1шт.

27a

154503A1

O-RING

1шт.

28

167230A1

MANIFOLD

1шт.

29

152924A1

PLUG

Consists Of Ref. Number : 29A

1шт.

29a

154503A1

O-RING

1шт.

30

154569A1

O-RING

1шт.

31

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

32

163278A1

FILTER

Consists Of Ref. Numbers : 32A, 32B

1шт.

32a

163279A1

HYDRAULIC OIL FILTER

1шт.

32b

159706A1

INDICATOR

1шт.

33

167239A1

BRACKET

1шт.

35

166052A1

BOLT

2шт.

36

150409A1

WASHER

10.5 x 21 x 3.2 mm

4шт.

37

166352A1

BOLT

4шт.

38

150811A1

WASHER

M12

1шт.

39

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Consists Of Ref. Number : 39A

2шт.

39a

154503A1

O-RING

1шт.

40

167238A1

HYDRAULIC HOSE

1шт.

41

167236A1

TUBE ASSY.

1шт.

42

167229A1

HYDRAULIC HOSE

1шт.

43

167228A1

HYDRAULIC HOSE

1шт.

44

167231A1

ELBOW

1шт.

45

167251A1

HYDRAULIC HOSE

1шт.

46

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

4шт.

47

892-11008

LOCK WASHER,8mm ID

4шт.

48

152742A1

COLLAR

1шт.

49

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

1шт.

34

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

4шт.

50

167247A1

BRACKET

1шт.

51

151486A1

CLAMP BRACKET

1шт.

52

167227A1

COLLAR

1шт.

53

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

2шт.

54

167319A1

HYDRAULIC HOSE

1шт.

55

167234A1

TUBE ASSY.

1шт.

56

161102A1

ADAPTER

Consists Of Ref. Number : 56A

1шт.

56a

154487A1

O-RING

1шт.

57

159387A1

ADAPTER

Consists Of Ref. Number : 57A

1шт.

57a

154523A1

O-RING

1шт.

58

163160A1

SHEET

1шт.

59

167249A1

PAD

2шт.

60

167250A1

COLLAR

2шт.

61

166345A1

BOLT

4шт.
