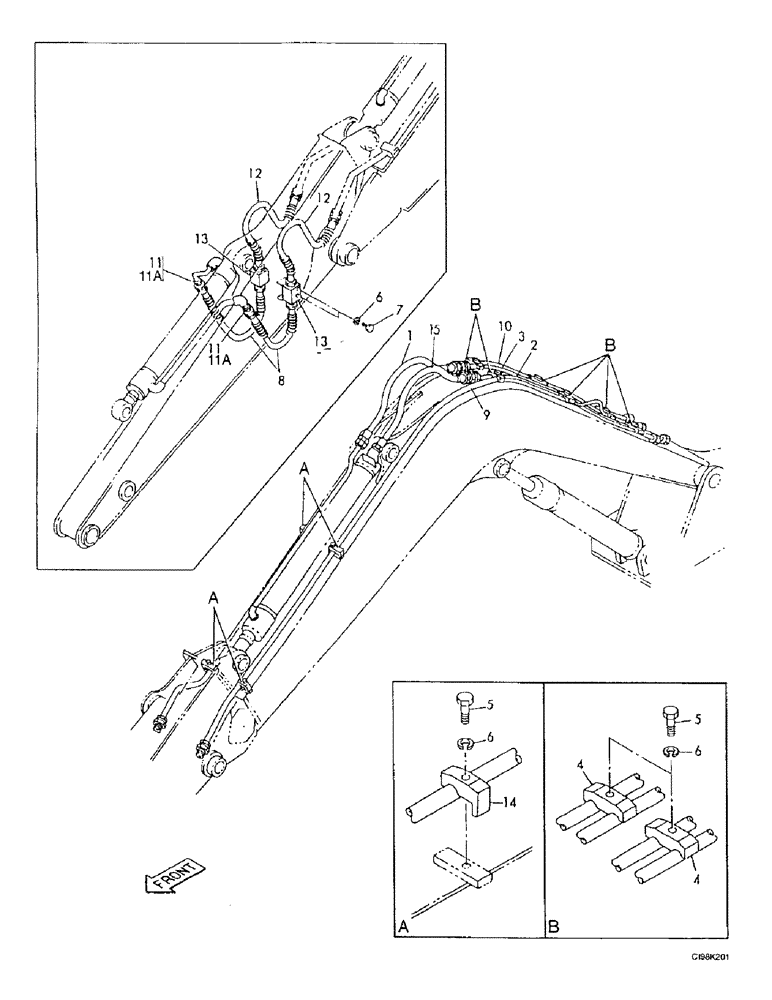

Запчасти Case 9007B (8-042) - HYDRAULIC CIRCUIT - LONG DIPPER AND BUCKET CYLINDER (08) - HYDRAULICS

1

166418A1

HYDRAULIC HOSE,12.70 mm ID x 600.00 mm

1шт.

2

166420A1

TUBE ASSY.

Pipe

1шт.

3

166419A1

TUBE ASSY.

Pipe

1шт.

4

166400A1

COLLAR

Bracket

6шт.

5

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

M12 x 55; 10.9

10шт.

6

892-11012

LOCK WASHER,M12

14шт.

7

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

8

166439A1

HYDRAULIC HOSE

500 mm

2шт.

9

166422A1

TUBE ASSY.

Pipe

1шт.

10

166423A1

TUBE ASSY.

Pipe

1шт.

11

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Union, Consists Of Ref. Number : 11A

2шт.

11a

154487A1

O-RING

1шт.

12

166438A1

HYDRAULIC HOSE,12.70 mm ID x 900.00 mm

2шт.

13

166440A1

MANIFOLD

Valve, Manifold

2шт.

14

166401A1

HALF-FLANGE

Bracket

4шт.

15

166444A1

HYDRAULIC HOSE,15.90 mm ID x 600.00 mm

1шт.

Uses an O-ring that is not shown. The part number for this O-ring is 154487A1

1шт.
