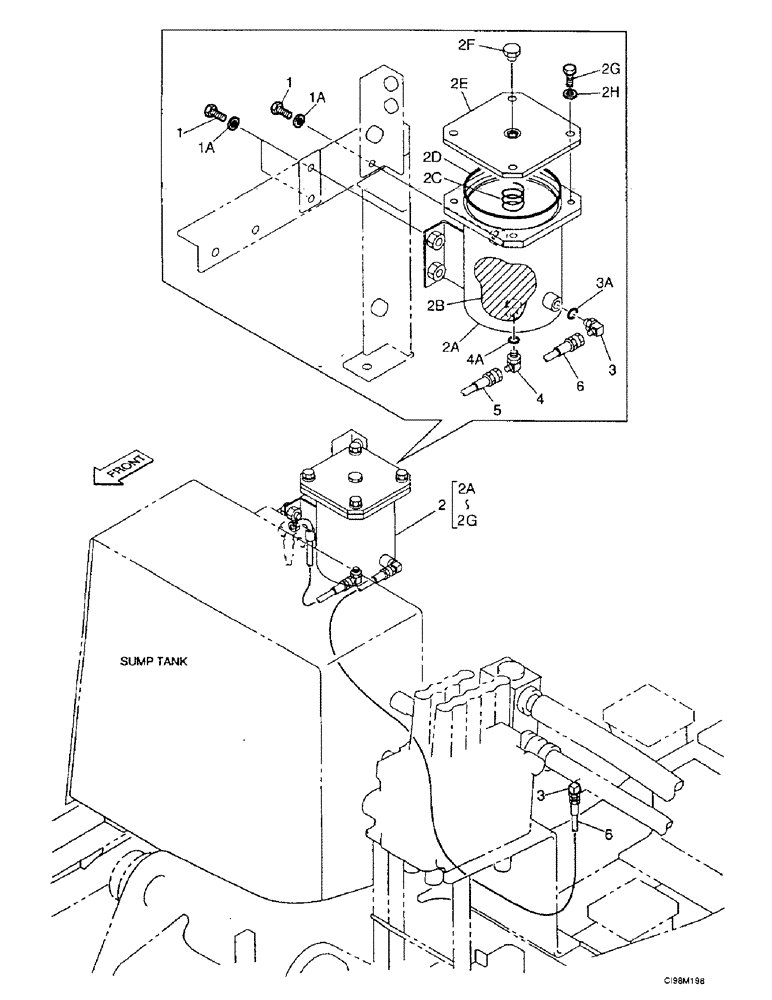

Запчасти Case 9007B (8-038) - HYDRAULIC CIRCUIT - THERMOSTATIC CONTROLLED VALVE (08) - HYDRAULICS

1

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

1a

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

2

167707A1

BOX

Filter Assy, Consists Of Ref. Numbers : 2A-2H

1шт.

2a

167708A1

BOX

Body

1шт.

2b

167857A1

HYDRAULIC OIL FILTER

1шт.

2c

167860A1

COMPRESSION SPRING

1шт.

2d

154787A1

O-RING

1шт.

2e

167858A1

COVER

Sheet

1шт.

2f

159285A1

PLUG

1шт.

2f

159285A1

PLUG

1шт.

2g

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

2h

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

3

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Consists Of Ref. Number : 3A

2шт.

3a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

4

167851A1

ELBOW

Consists Of Ref. Number : 4A

1шт.

4a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

5

167873A1

HYDRAULIC HOSE,9.50 mm ID x 400.00 mm

1шт.

6

151888A1

HOSE,63.00 mm ID x 1350.00 mm

1шт.
