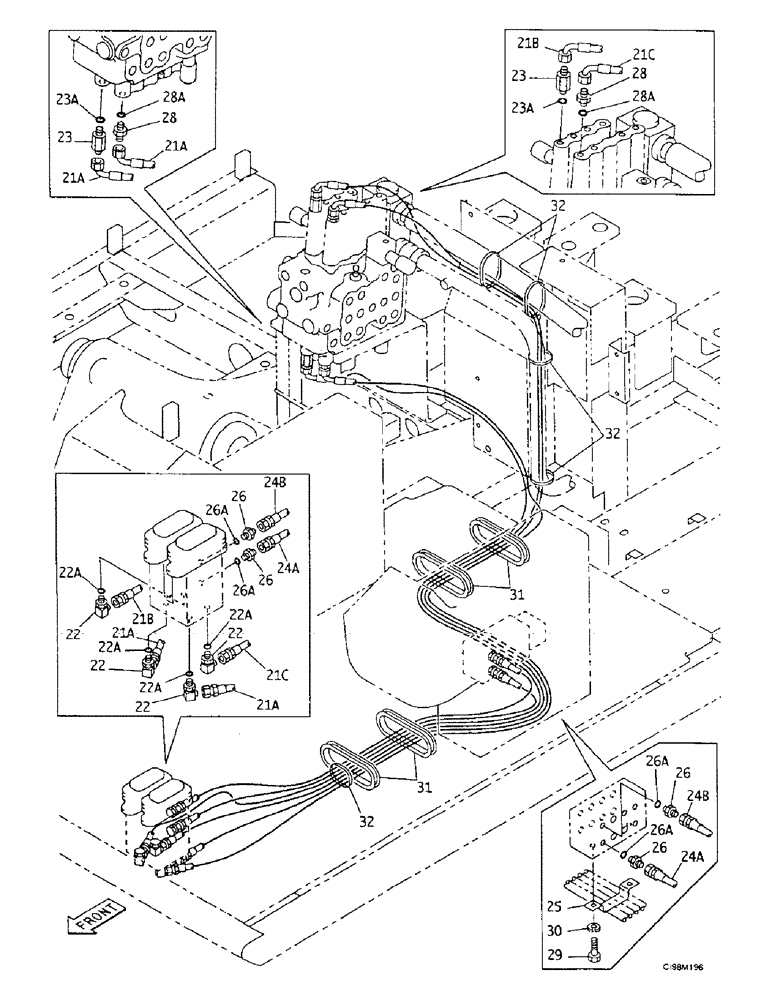

Запчасти Case 9007B (8-034) - HYDRAULIC CIRCUIT - PILOT, TRAVEL (08) - HYDRAULICS

21a

151895A1

HOSE,2450.00 mm

2шт.

21b

161086A1

HYDRAULIC HOSE

2800 mm (110-3/4 in)

1шт.

21c

162193A1

HOSE ASSY.

1шт.

22

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Consists Of Ref. Number : 22A

4шт.

22a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

23

167650A1

FITTING

Adapter, Consists Of Ref. Number : 23A

7шт.

23a

154475A1

O-RING

1шт.

24a

151877A1

HOSE,63.00 mm ID x 1200.00 mm

1шт.

24b

152807A1

HOSE ASSY.

1шт.

25

159250A1

CLAMP

Clip, Mounting

1шт.

26

161841A1

HYD CONNECTOR

Union, Consists Of Ref. Number : 26A

1шт.

26a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

27

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Union, Consists Of Ref. Number : 27A

3шт.

27a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

28

153378A1

ADAPTER

Union, Consists Of Ref. Number : 28A

2шт.

28a

154475A1

O-RING

1шт.

29

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

2шт.

30

892-11008

LOCK WASHER,8mm ID

2шт.

31

167683A1

GROMMET

4шт.

32

150071A1

MOUNTING CLIP

1шт.
