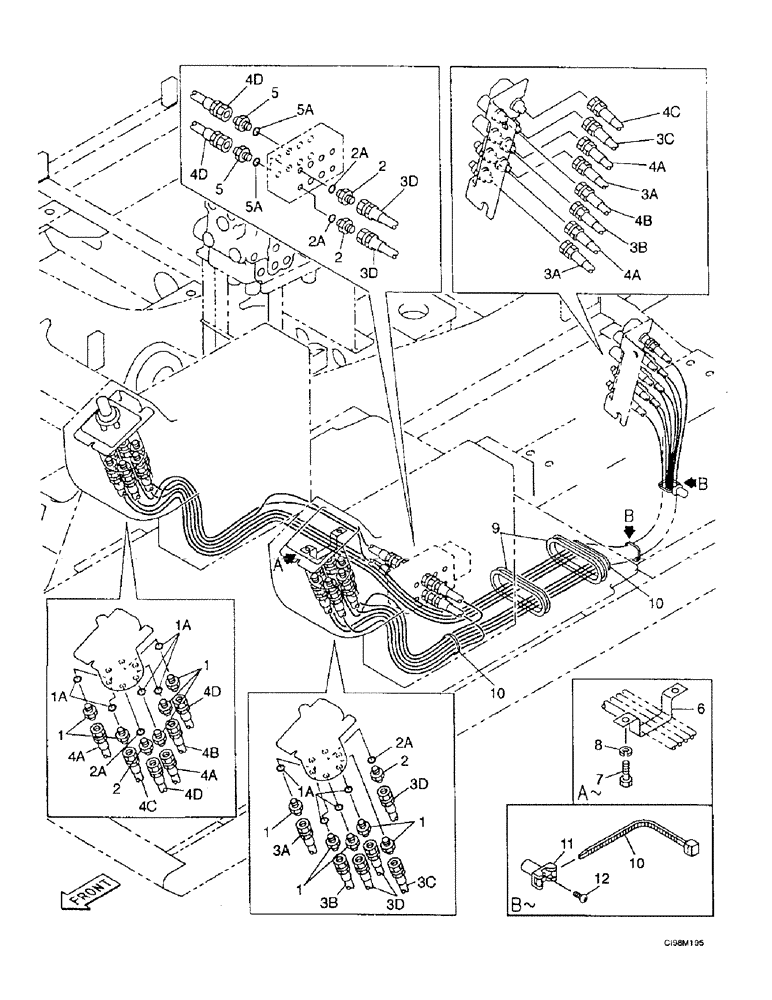

Запчасти Case 9007B (8-032) - HYDRAULIC CIRCUIT - PILOT, ATTACHMENT (08) - HYDRAULICS

1

161841A1

HYD CONNECTOR

Union, Consists Of Ref. Number : 1A

10шт.

1a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

2

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Union, Consists Of Ref. Number : 2A

4шт.

2a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

3a

167664A1

HYDRAULIC HOSE,1750.00 mm

2шт.

3b

167869A1

HYDRAULIC HOSE,1900.00 mm

1шт.

3c

167888A1

HYDRAULIC HOSE,6.30 mm ID x 1850.00 mm

1шт.

3d

167663A1

HYDRAULIC HOSE,6.30 mm ID x 1100.00 mm

2шт.

4a

167874A1

HYDRAULIC HOSE,2400.00 mm

2шт.

4b

167885A1

HYDRAULIC HOSE,2500.00 mm

1шт.

4c

167889A1

HYDRAULIC HOSE,2550.00 mm

1шт.

4d

167663A1

HYDRAULIC HOSE,6.30 mm ID x 1100.00 mm

2шт.

5

153378A1

ADAPTER

Union, Consists Of Ref. Number : 5A

2шт.

5a

154475A1

O-RING

1шт.

6

159025A1

CLAMP

Clip, Mounting

1шт.

7

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

2шт.

8

892-11008

LOCK WASHER,8mm ID

2шт.

9

167683A1

GROMMET

2шт.

10

150071A1

MOUNTING CLIP

1шт.

11

150860A1

COLLAR

Base

2шт.

12

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

10.9

2шт.
