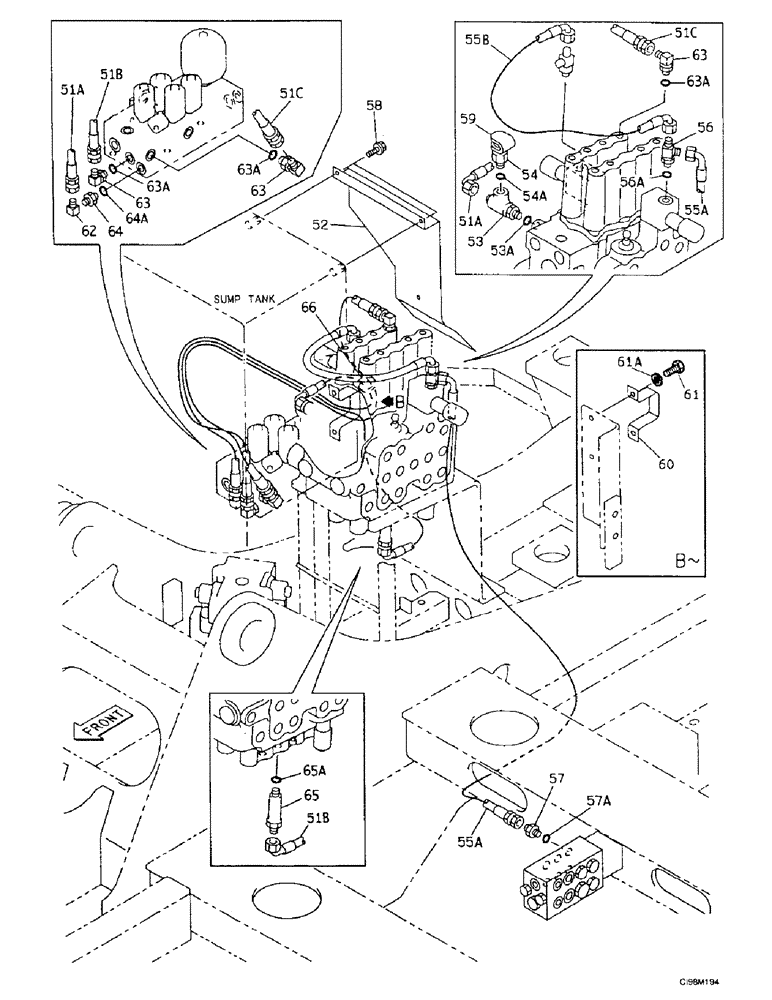

Запчасти Case 9007B (8-030) - HYDRAULIC CIRCUIT - PILOT, BLOCK, FEEDER, CONTROL VALVE, BLOCK, SELECTOR (08) - HYDRAULICS

51a

167880A1

HYDRAULIC HOSE,1350.00 mm

1шт.

51b

167876A1

HYDRAULIC HOSE,1300.00 mm

1шт.

51c

167868A1

HYDRAULIC HOSE,1450.00 mm

1шт.

52

167701A1

COVER

Sheet

1шт.

53

167666A1

FITTING

Tee, Consists Of Ref. Number : 53A

1шт.

53a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

54

151136A1

BUSHING

Adapter, Consists Of Ref. Number : 54A

1шт.

54a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

55a

166469A1

HYDRAULIC HOSE

1шт.

55b

167667A1

HOSE

1шт.

56

159497A1

TEE

Consists Of Ref. Number : 56A

1шт.

56a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

57

153378A1

ADAPTER

Union, Consists Of Ref. Number : 57A

1шт.

57a

154475A1

O-RING

1шт.

58

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

3шт.

59

1541849C1

COUPLING

Fitting, Tapping

1шт.

60

159032A1

CLAMP

Clip, Mounting

1шт.

61

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

61a

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

2шт.

62

163814A1

ELBOW

1шт.

63

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Consists Of Ref. Number : 63A

3шт.

63a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

64

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Union, Consists Of Ref. Number : 64A

1шт.

64a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

65

163104A1

ADAPTER

Consists Of Ref. Number : 65A

1шт.

65a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

66

150071A1

MOUNTING CLIP

1шт.
