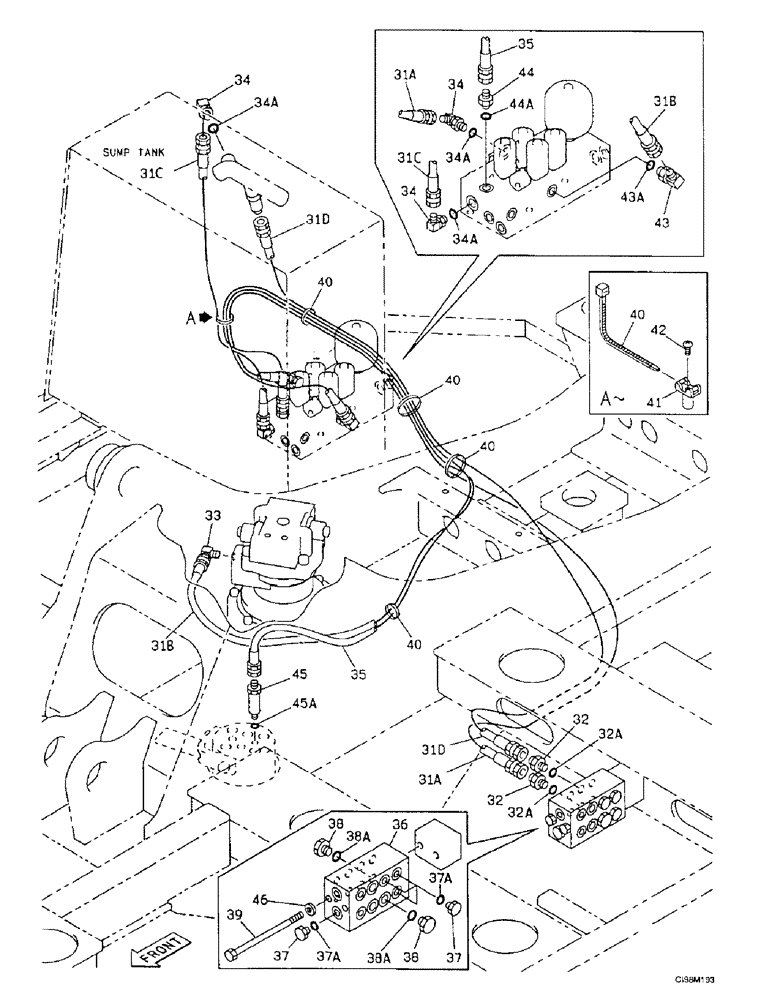

Запчасти Case 9007B (8-028) - HYDRAULIC CIRCUIT - PILOT, TANK, BLOCK, FEEDER, BLOCK, SELECTOR, SWING MOTOR (08) - HYDRAULICS

31a

168005A1

HYDRAULIC HOSE,2300.00 mm

1шт.

31b

167665A1

HYDRAULIC HOSE,2100.00 mm

1шт.

31c

167871A1

HYDRAULIC HOSE,19.00 mm ID x 700.00 mm

1шт.

31d

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

1шт.

32

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Union, Consists Of Ref. Number : 32A

2шт.

32a

154475A1

O-RING

1шт.

33

153596A1

ADAPTER

Elbow

1шт.

34

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Consists Of Ref. Number : 34A

3шт.

34a

154475A1

O-RING

1шт.

35

167884A1

HYDRAULIC HOSE,6.30 mm ID x 1950.00 mm

1шт.

36

159015A1

MANIFOLD

Block, Feeder

1шт.

37

159002A1

PLUG

Consists Of Ref. Number : 37A

4шт.

37a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

38

153105A1

PLUG

Consists Of Ref. Number : 38A

2шт.

38a

154475A1

O-RING

1шт.

39

159386A1

BOLT

Screw

2шт.

40

150071A1

MOUNTING CLIP

1шт.

41

150860A1

COLLAR

Base

1шт.

42

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

1шт.

43

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Consists Of Ref. Number : 43A

1шт.

43a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

44

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Union, Consists Of Ref. Number : 44A

1шт.

44a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

45

163104A1

ADAPTER

Consists Of Ref. Number : 45A

1шт.

45a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

46

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.
