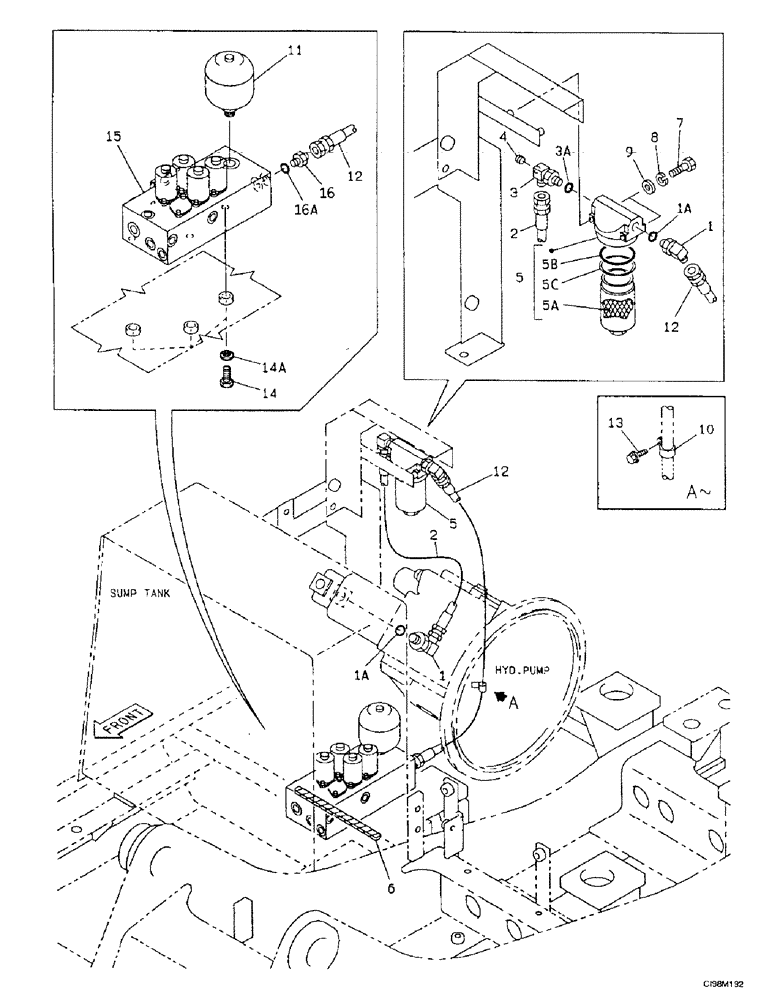

Запчасти Case 9007B (8-026) - HYDRAULIC CIRCUIT - PILOT, PUMP, CONTROL VALVE, BLOCK, SELECTOR (08) - HYDRAULICS

1

157935A1

ELBOW

Consists Of Ref. Number : 1A

2шт.

1a

154487A1

O-RING

1шт.

2

167661A1

HYDRAULIC HOSE

1шт.

3

167907A1

ELBOW

Consists Of Ref. Number : 3A

1шт.

3a

154487A1

O-RING

1шт.

4

158352A1

PLUG

1шт.

5

159482A1

FILTER

Consists Of Ref. Numbers : 5A, 5B, 5C

1шт.

5a

153233A1

HYDRAULIC OIL FILTER

Element

1шт.

5b

164690A1

O-RING

1шт.

5c

168051A1

BACK-UP RING

1шт.

6

167839A1

GROMMET

Protector

1шт.

7

827-6060

BOLT,Hex, M6 x 60mm, Cl 10.9

2шт.

8

892-11006

LOCK WASHER,M6

2шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

10

156462A1

COLLAR

Clip, Mounting

1шт.

11

167838A1

ACCUMULATOR

1шт.

12

167872A1

HYDRAULIC HOSE,800.00 mm

1шт.

13

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

1шт.

14

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

14a

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

15

167705A1

VALVE

Block, Selector, See Figures : 8-82, 8-84, 8-86

1шт.

16

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Union, Consists Of Ref. Number : 16A

2шт.

16a

154475A1

O-RING

1шт.
