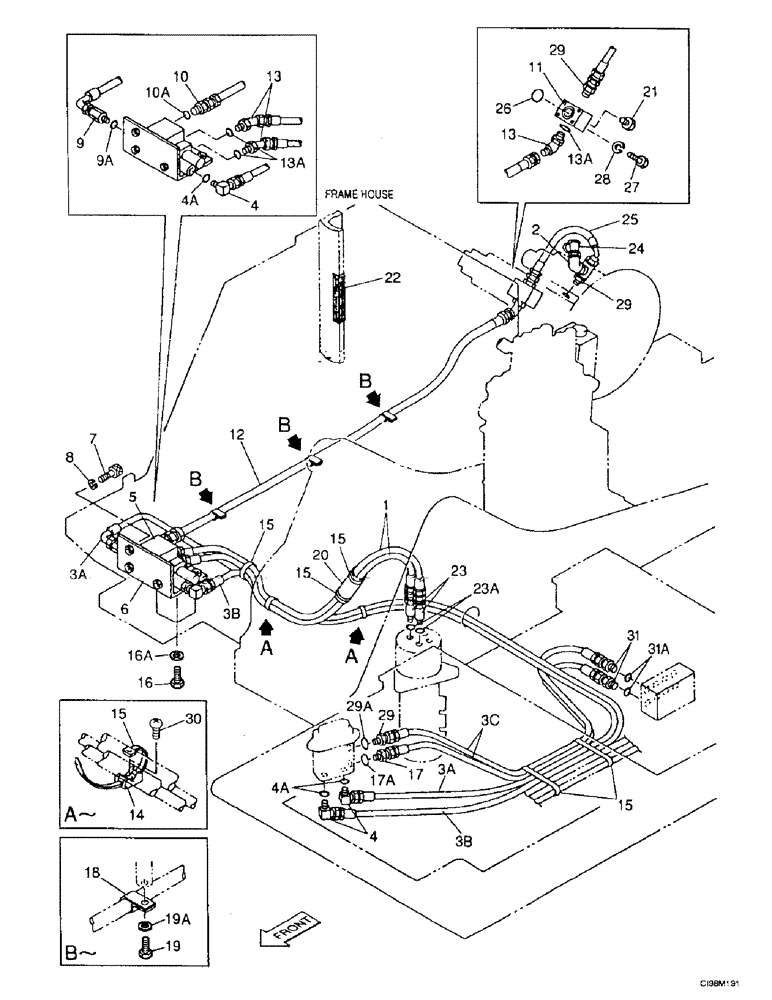

Запчасти Case 9007B (8-022) - HYDRAULIC CIRCUIT - DOZER BLADE (08) - HYDRAULICS

1

167660A1

HYDRAULIC HOSE

2шт.

2

158665A1

ELBOW

Elbow

3шт.

3a

161086A1

HYDRAULIC HOSE

2800 mm (110-3/4 in)

1шт.

3b

152289A1

HOSE,6.3mm ID x 2550mm L

1шт.

3c

167649A1

HOSE

2шт.

4

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Consists Of Ref. Number : 4A

3шт.

4a

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

5

167655A1

VALVE, CONTROL

See Figure : 8-70

1шт.

6

167668A1

BRACKET

Mount

1шт.

7

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

3шт.

8

892-11010

LOCK WASHER,M10

3шт.

9

162554A1

FITTING

Union, Consists Of Ref. Number : 9A

1шт.

9a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

10

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Union, Consists Of Ref. Number : 10A

1шт.

10a

154475A1

O-RING

1шт.

11

167691A1

MANIFOLD

1шт.

12

167717A1

HYDRAULIC HOSE,9.50 mm ID x 1350.00 mm

1шт.

13

157584A1

ELBOW

Consists Of Ref. Number : 13A

3шт.

13a

154475A1

O-RING

1шт.

14

150860A1

COLLAR

Base

3шт.

15

150071A1

MOUNTING CLIP

1шт.

16

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

3шт.

16a

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

3шт.

17

161841A1

HYD CONNECTOR

1шт.

17a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

18

162149A1

COLLAR

Clip, Mounting

2шт.

19

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

19a

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

2шт.

20

163160A1

SHEET

Sleeve, Rubber

2шт.

21

158352A1

PLUG

1шт.

22

167721A1

SUPPORT LINING

Guard

1шт.

23

167644A1

FITTING

Adapter, Consists Of Ref. Number : 23A

2шт.

23a

154475A1

O-RING

1шт.

24

1541849C1

COUPLING

Fitting, Tapping

1шт.

25

167654A1

HYDRAULIC HOSE

1шт.

26

155210A1

O-RING

1шт.

27

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

4шт.

28

892-11010

LOCK WASHER,M10

4шт.

29

167689A1

FITTING

Union, Consists Of Ref. Number : 29A

2шт.

29a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

30

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

2шт.

31

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Union, Consists Of Ref. Number : 31A

2шт.

31a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
