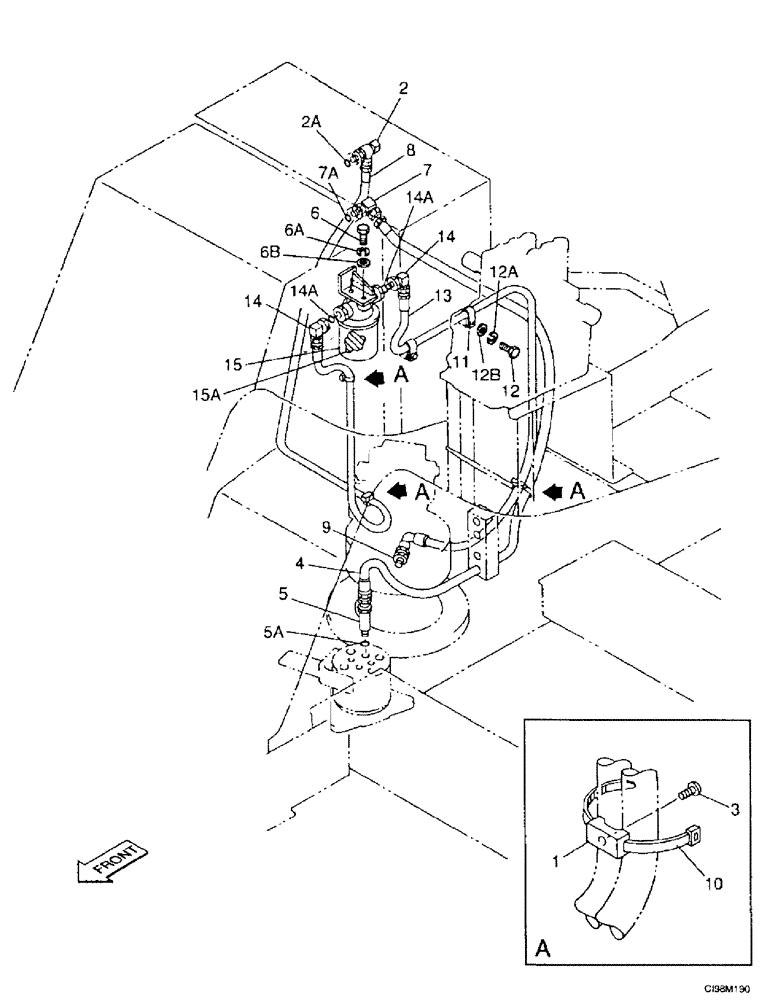

Запчасти Case 9007B (8-020) - HYDRAULIC CIRCUIT - LEAK-OFF RETURN (08) - HYDRAULICS

1

150860A1

COLLAR

Base

4шт.

2

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Consists Of Ref. Number : 2A

1шт.

2a

154475A1

O-RING

1шт.

3

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

4шт.

4

150963A1

HYDRAULIC HOSE,12.70 mm ID x 1650.00 mm

1шт.

5

167645A1

FITTING

Adapter, Consists Of Ref. Number : 5A

1шт.

5a

154487A1

O-RING

1шт.

6

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

6a

892-11008

LOCK WASHER,8mm ID

2шт.

6b

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

7

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Consists Of Ref. Number : 7A

1шт.

7a

154487A1

O-RING

1шт.

8

159216A1

HYDRAULIC HOSE,9.50 mm ID x 1750.00 mm

1шт.

9

153597A1

ADAPTER

Union

1шт.

10

150071A1

MOUNTING CLIP

2шт.

11

157806A1

COLLAR

Clip, Mounting

2шт.

12

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

12a

892-11006

LOCK WASHER,M6

2шт.

12b

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

13

167864A1

HYDRAULIC HOSE,1200.00 mm

1шт.

14

157935A1

ELBOW

Consists Of Ref. Number : 14A

2шт.

14a

154487A1

O-RING

1шт.

15

167863A1

FILTER

Oil, Consists Of Ref. Number : 15A

1шт.

15a

168004A1

HYDRAULIC OIL FILTER

Element, Filter

1шт.
