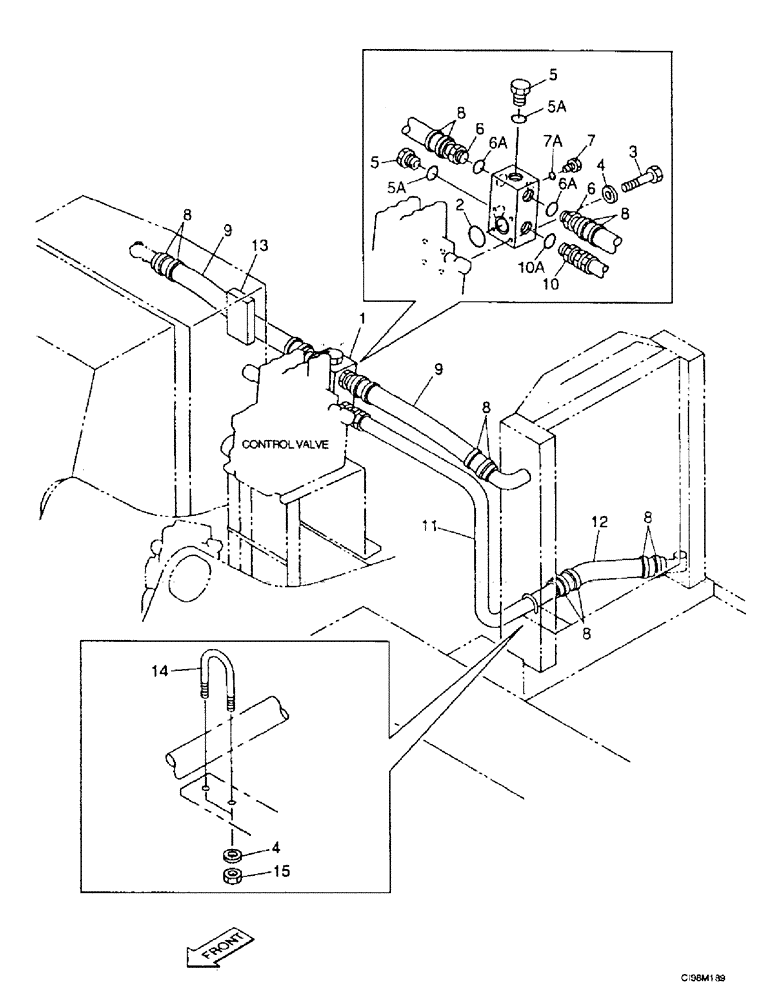

Запчасти Case 9007B (8-018) - HYDRAULIC CIRCUIT - RESERVOIR RETURN (08) - HYDRAULICS

1

167646A1

MANIFOLD

Block, Feeder

1шт.

2

154609A1

O-RING

1шт.

3

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

M10 x 90; 10.9

4шт.

4

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

6шт.

5

162659A1

PLUG

Consists Of Ref. Number : 5A

2шт.

5a

154523A1

O-RING

1шт.

6

167643A1

TUBE ASSY.

Pipe, Consists Of Ref. Number : 6A

1шт.

6a

154523A1

O-RING

1шт.

7

153105A1

PLUG

Consists Of Ref. Number : 7A

1шт.

7a

154475A1

O-RING

1шт.

8

150885A1

COLLAR

12шт.

9

150820A1

HYDRAULIC HOSE,34.00 mm ID x 500.00 mm

1шт.

10

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

Union, Consists Of Ref. Number : 10A

1шт.

10a

154523A1

O-RING

1шт.

11

167687A1

TUBE ASSY.

Pipe

1шт.

12

167937A1

HOSE

1шт.

13

167700A1

PAD

Protector

1шт.

14

152061A1

U-BOLT,M10 x 46mm W x 60mm L

BOLT "U" Bail

1шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
