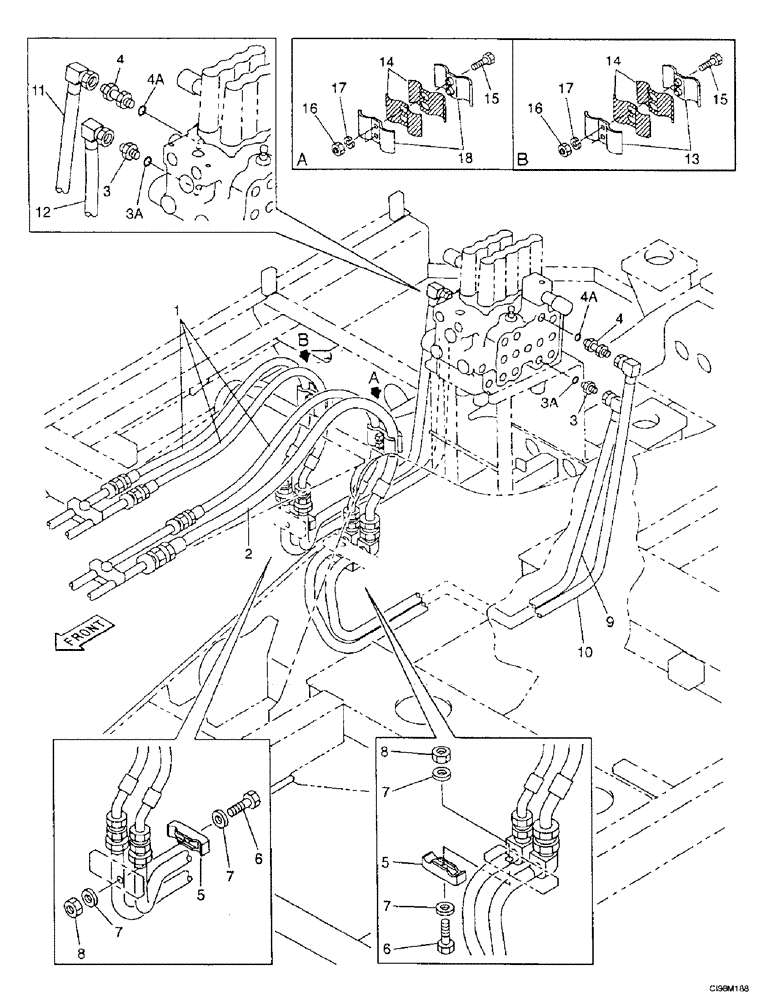

Запчасти Case 9007B (8-016) - HYDRAULIC CIRCUIT - DIPPER AND BUCKET (08) - HYDRAULICS

1

167681A1

HYDRAULIC HOSE

3шт.

2

167686A1

HYDRAULIC HOSE

1шт.

3

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Union, Consists Of Ref. Number : 3A

2шт.

3a

154487A1

O-RING

1шт.

4

167648A1

FITTING

Union, Consists Of Ref. Number : 4A

2шт.

4a

154487A1

O-RING

1шт.

5

166400A1

COLLAR

Bracket

2шт.

6

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

8

829-1412

NUT,M12, Cl 10.9

2шт.

9

167674A1

TUBE ASSY.

Pipe

1шт.

10

167673A1

TUBE ASSY.

Pipe

1шт.

11

167671A1

TUBE ASSY.

Pipe

1шт.

12

167672A1

TUBE ASSY.

Pipe

1шт.

13

167652A1

COLLAR

Bracket

2шт.

14

167653A1

GROMMET

Protector

4шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

17

892-11008

LOCK WASHER,8mm ID

4шт.

18

167698A1

COLLAR

Bracket

2шт.

15

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.
