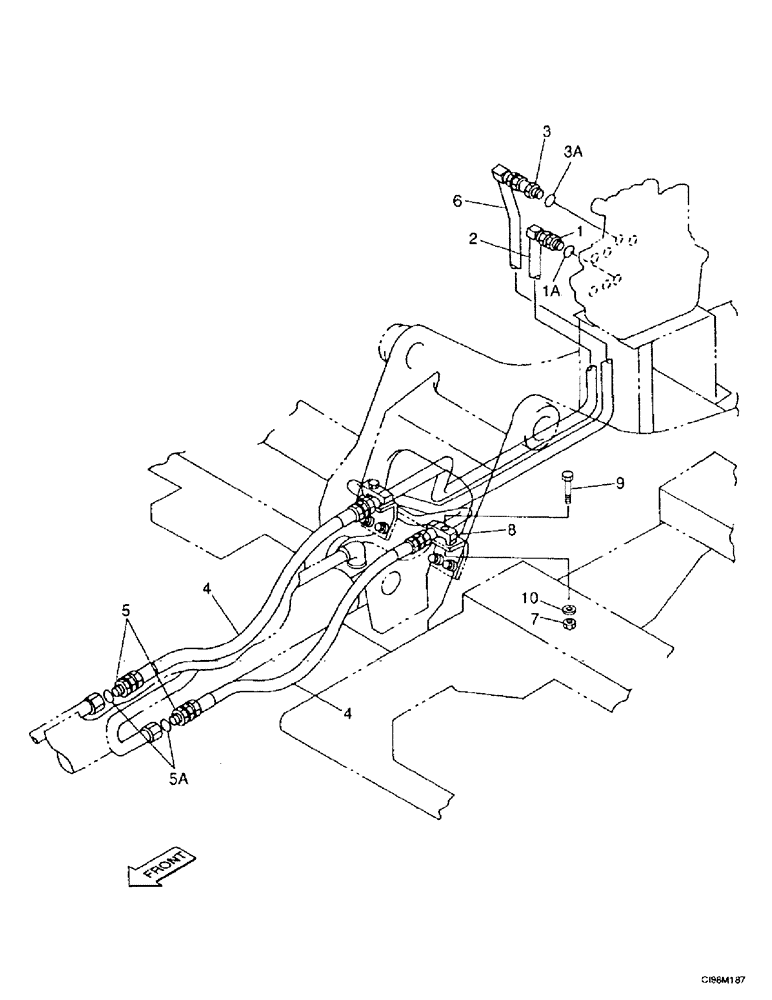

Запчасти Case 9007B (8-014) - HYDRAULIC CIRCUIT - BOOM (08) - HYDRAULICS

1

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Union, Consists Of Ref. Number : 1A

1шт.

1a

154487A1

O-RING

1шт.

2

167669A1

TUBE ASSY.

Pipe

1шт.

3

167648A1

FITTING

Union, Consists Of Ref. Number : 3A

1шт.

3a

154487A1

O-RING

1шт.

4

167685A1

HYDRAULIC HOSE,920.00 mm

2шт.

5

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Union, Consists Of Ref. Number : 5A

2шт.

5a

154503A1

O-RING

1шт.

6

167670A1

TUBE ASSY.

Pipe

1шт.

7

829-1412

NUT,M12, Cl 10.9

2шт.

8

166401A1

HALF-FLANGE

Bracket

2шт.

9

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

2шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.
