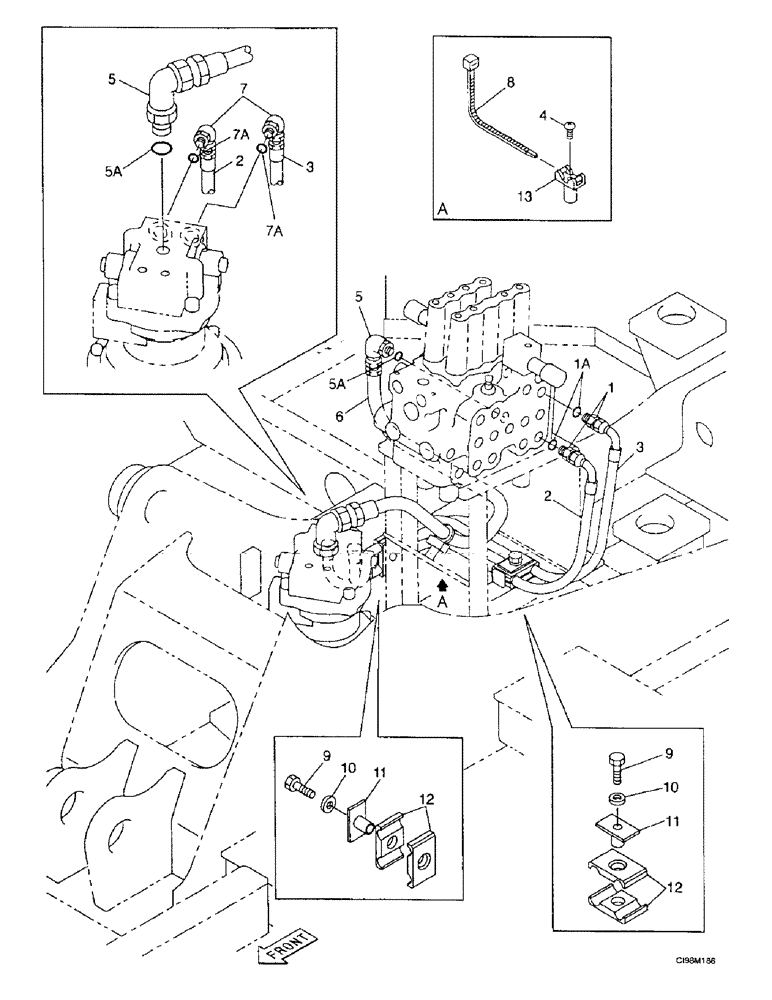

Запчасти Case 9007B (8-012) - HYDRAULIC CIRCUIT - SWING (08) - HYDRAULICS

1

167194A1

FITTING

Union, Consists Of Ref. Number : 1A

2шт.

1a

154487A1

O-RING

1шт.

2

167677A1

HYDRAULIC HOSE,950.00 mm

1шт.

3

167678A1

HYDRAULIC HOSE,1050.00 mm

1шт.

4

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

1шт.

5

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Consists Of Ref. Number : 5A

2шт.

5a

154503A1

O-RING

1шт.

6

168053A1

HYDRAULIC HOSE,630.00 mm

1шт.

7

159368A1

ELBOW

Consists Of Ref. Number : 7A

2шт.

7a

154487A1

O-RING

1шт.

8

150071A1

MOUNTING CLIP

1шт.

9

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

2шт.

10

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

11

167679A1

CLAMP

Support

2шт.

12

167680A1

COLLAR

Bracket

4шт.

13

150860A1

COLLAR

Base

1шт.
