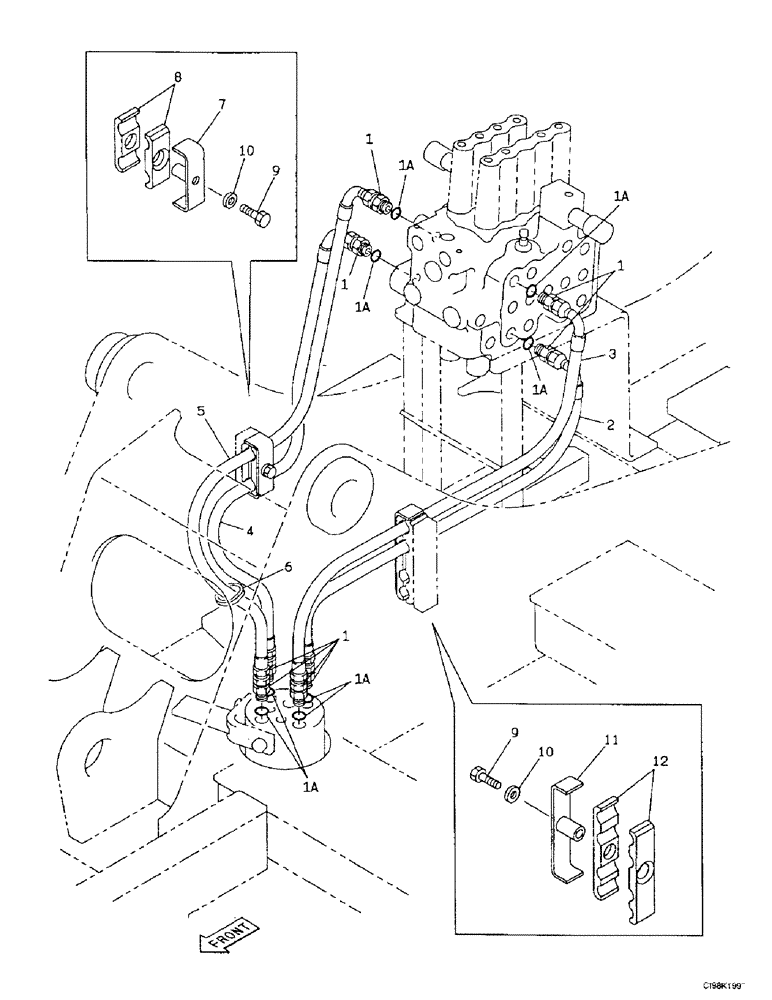

Запчасти Case 9007B (8-010) - HYDRAULIC CIRCUIT - TRAVEL (08) - HYDRAULICS

1

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Union, Consists Of Ref. Number : 1A

8шт.

1a

154487A1

O-RING

1шт.

2

166381A1

HYDRAULIC HOSE

780 mm

1шт.

3

166335A1

HYDRAULIC HOSE

880 mm

1шт.

4

166382A1

HYDRAULIC HOSE

950 mm

1шт.

5

166446A1

HYDRAULIC HOSE

1100 mm

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Tie, 15 inch, nylon

1шт.

7

166344A1

COLLAR

Bracket

1шт.

8

166376A1

COLLAR

Bracket

2шт.

9

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

2шт.

10

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

11

166377A1

CLAMP

Bracket

1шт.

12

166378A1

COLLAR

Bracket

2шт.
