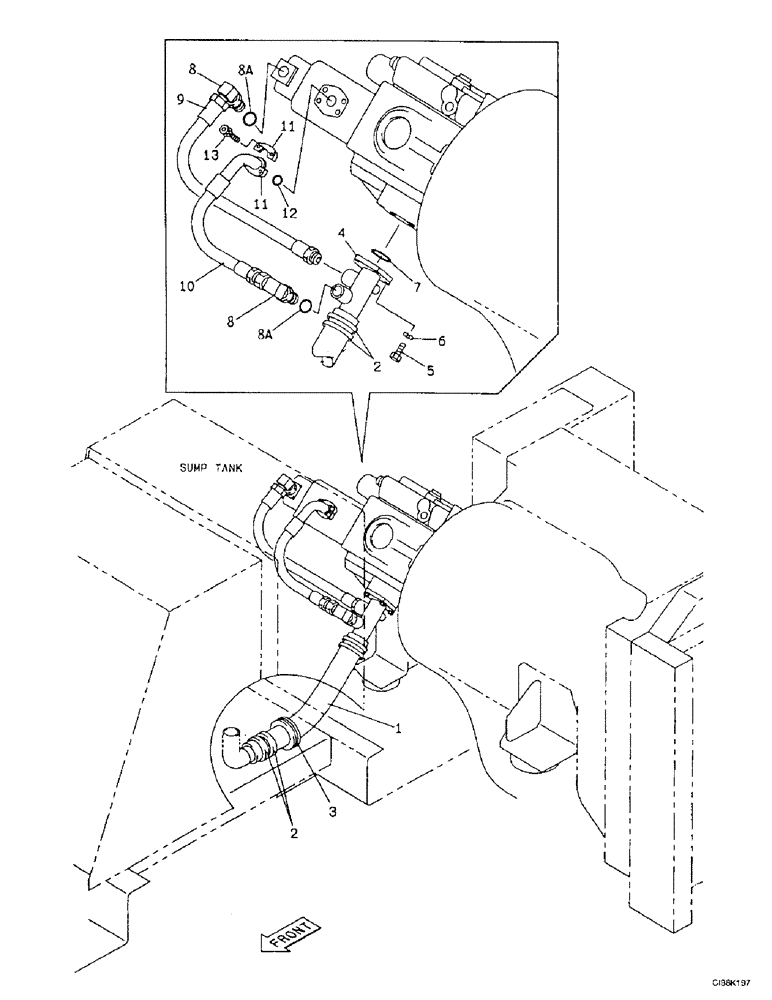

Запчасти Case 9007B (8-006) - HYDRAULIC CIRCUIT - CONTROL VALVE AND PUMP (08) - HYDRAULICS

1

166342A1

HYDRAULIC HOSE

1шт.

2

157287A1

COLLAR

4шт.

3

161688A1

GROMMET

1шт.

4

166343A1

TUBE ASSY.

Manifold

1шт.

5

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

6

892-11012

LOCK WASHER,M12

4шт.

7

154639A1

O-RING

1шт.

8

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Consists Of Ref. Number : 8A

2шт.

8a

154503A1

O-RING

2шт.

9

166337A1

HYDRAULIC HOSE

1шт.

10

166336A1

HYDRAULIC HOSE

1шт.

11

153458A1

FLANGE

Bracket, Clamp

2шт.

12

155210A1

O-RING

1шт.

13

862-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

4шт.
