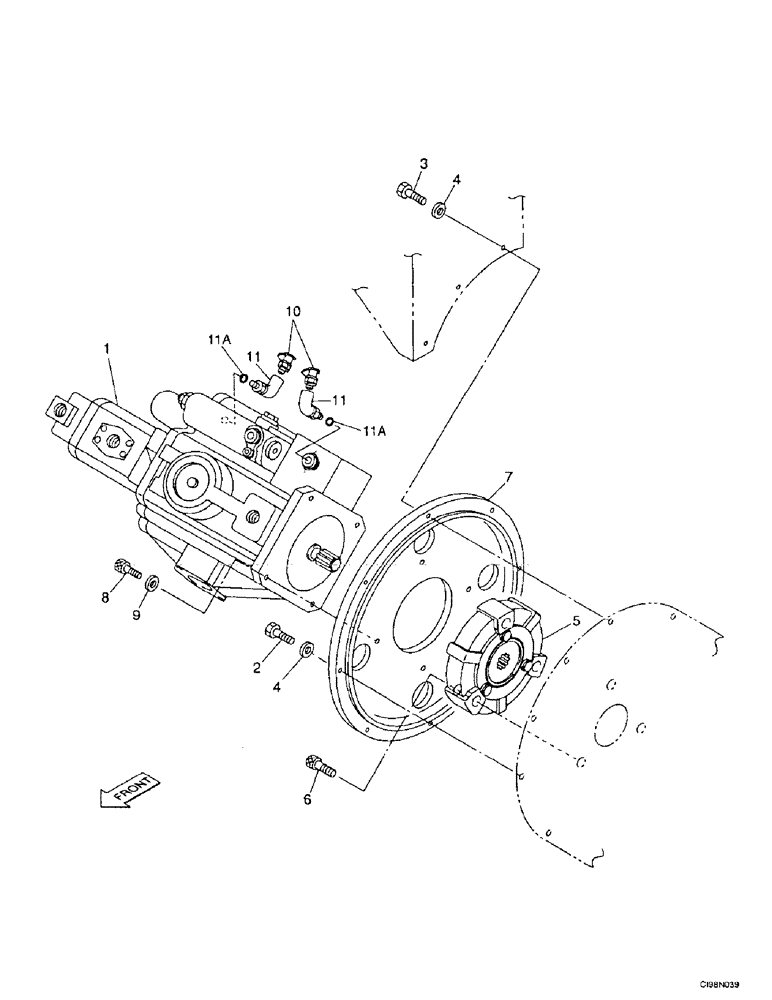

Запчасти Case 9007B (8-004) - HYDRAULIC PUMP - COUPLING (08) - HYDRAULICS

1

167684A1

PUMP, HYDRAULIC

See Figure : 8-60

1шт.

1

167684A1R

REMAN-HYD PUMP

9007B CASE CRAWLER EXCAVATOR

1шт.

1

167684A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

3шт.

4

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

3шт.

5

167641A1

COUPLING

1шт.

6

863-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

3шт.

7

167688A1

FLANGE

1шт.

8

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

4шт.

9

112312A1

LOCK WASHER

Lock W12

4шт.

10

1541849C1

COUPLING

Fitting, Tapping

2шт.

11

158665A1

ELBOW

Consists Of Ref. Number : 11A

2шт.

11a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

2

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

5шт.
