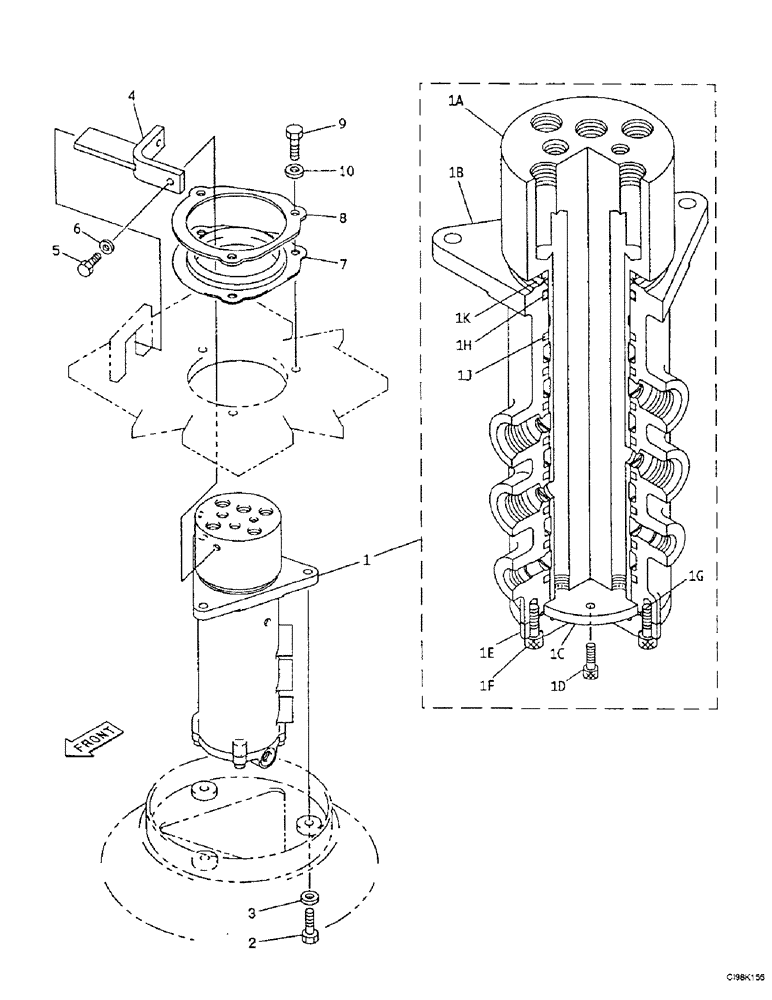

Запчасти Case 9007B (7-10) - SWING JOINT (07) - BRAKES

1

166293A1

JOINT TURNING

Swivel, Hydraulic, Consists Of Ref. Numbers : 1A-1K

1шт.

1a

166271A1

HOUSING

Pivot

1шт.

1b

166294A1

ROTOR

Body

1шт.

1c

166270A1

LARGE PLATE

PLATE, LARGE

1шт.

1d

861-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

4шт.

1e

166292A1

COVER

Sheet

1шт.

1f

861-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

4шт.

1g

154713A1

O-RING

1шт.

1h

KHA10130

O-RING

Replaces 154688A1

1шт.

1j

168295A1

SEALING RING,80mm ID x 90mm OD x 4.8mm Thk

SEALRING Seal, Wiper

8шт.

1k

151814A1

SEAL,72mm ID x 84mm OD x 11mm Thk

Shaft

1шт.

2

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

3шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

4

166276A1

BAR

Mount

1шт.

6

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

7

166277A1

SEALING RING

1шт.

8

166278A1

SEAL

1шт.

9

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

10

161498A1

SEALING WASHER

Ring, Packing

3шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.
