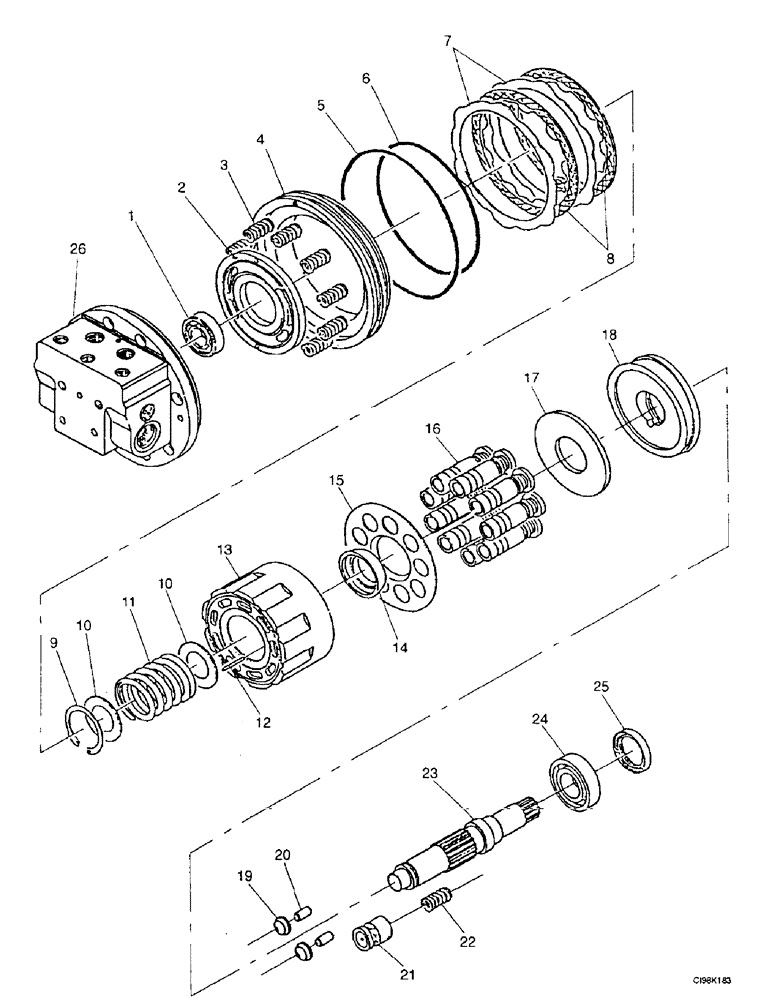

Запчасти Case 9007B (7-06) - TRAVEL HYDRAULIC MOTOR (07) - BRAKES

166915A1

MOTOR, HYDRAULIC

Travel, Consists Of Ref. Numbers : 1-26

1шт.

1

167001A1

BALL BEARING

Ball

1шт.

2

167028A1

LARGE PLATE

PLATE, LARGE

1шт.

3

166990A1

SPRING

8шт.

4

165263A1

PISTON

1шт.

5

165220A1

O-RING

1шт.

6

165219A1

O-RING

1шт.

7

165295A1

LARGE PLATE

PLATE, LARGE Drive

2шт.

8

165296A1

LARGE PLATE

PLATE, LARGE Disc, Friction

2шт.

9

165221A1

RING, SNAP

RING SNAP

1шт.

10

165289A1

WASHER

2шт.

11

166984A1

SPRING

1шт.

12

167000A1

ROLLER

3шт.

13

167029A1

CYLINDER BLOCK

9шт.

14

166825A1

THRUST RING

Cover

1шт.

15

166875A1

LARGE PLATE

PLATE, LARGE Intermediate

1шт.

16

166913A1

SET

Kit, Parts

1шт.

17

166826A1

PLATE, THRUST

1шт.

18

166873A1

LARGE PLATE

PLATE, LARGE Plate

1шт.

19

165287A1

BUSHING

2шт.

20

161820A1

COTTER PIN

2шт.

21

166951A1

JACK PISTON

Assy

1шт.

22

166989A1

SPRING

1шт.

23

166824A1

SHAFT

1шт.

24

166994A1

BALL BEARING,25 mm ID x 52 mm OD x 15 mm

Ball

1шт.

25

166786A1

OIL SEAL

1шт.

26

166959A1

KIT

Flange Assy, See Figure : 7-8

1шт.
