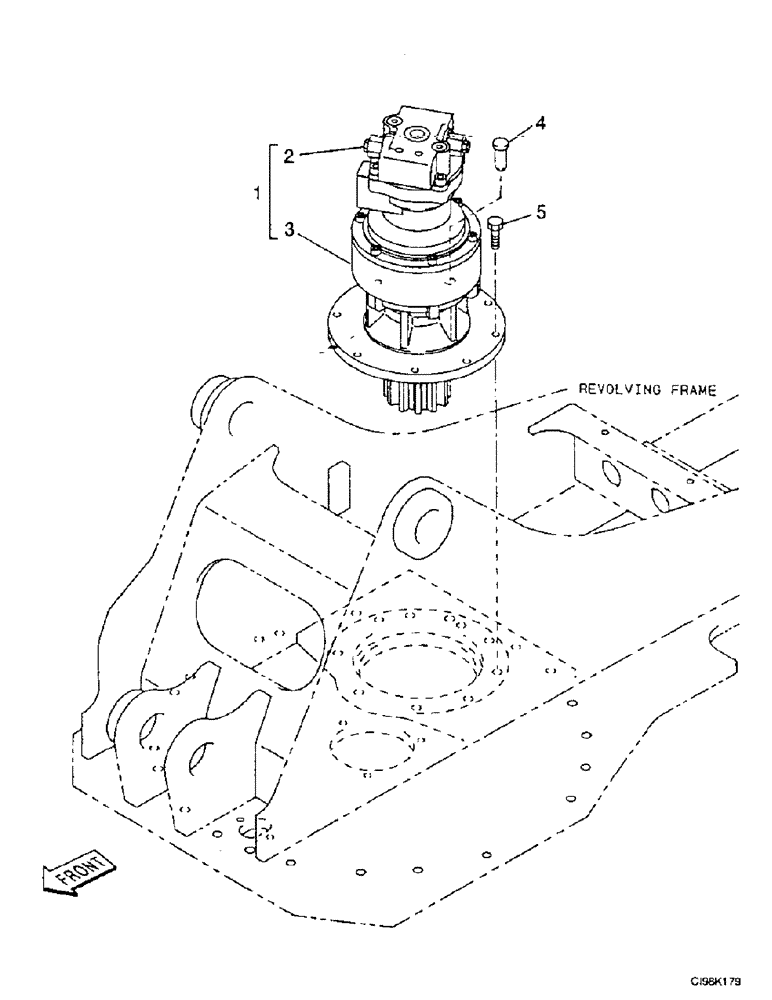

Запчасти Case 9007B (6-08) - SWING MOTOR-DRIVE REDUCTION GEAR (06) - POWER TRAIN

1

166333A1

MOTO-REDUCTION GEAR

1шт.

2

166918A1

MOTOR, HYDRAULIC

See Figure : 8-68

1шт.

3

166921A1

PLANETARY REDUCER

See Figure : 6-10

1шт.

4

166332A1

PIN

Split

1шт.

5

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

7шт.
