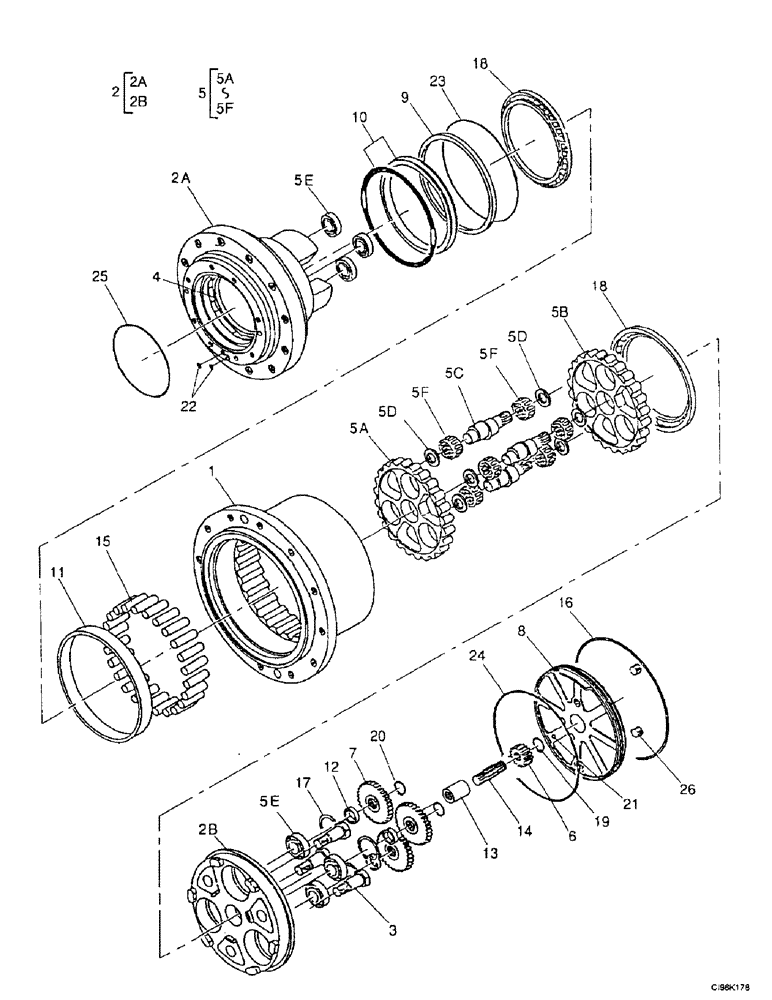

Запчасти Case 9007B (6-04) - TRAVEL REDUCTION GEAR (06) - POWER TRAIN

166917A1

REDUCER

Reducer, Consists of: ref. nos. 1, 2, 3-5, 6-29

1шт.

1

167027A1

HUB

Housing

1шт.

Part of Planetary Reducer, P/N 166917A1

1шт.

166960A1

KIT

Hub Assy, Consists of: ref. nos. 2, 3, 4

1шт.

2

166916A1

SPINDLE

Hub, Consists of: ref. nos. 2A, 2B

1шт.

Part of Planetary Reducer, P/N 166917A1

1шт.

Part of Hub Assembly, P/N 166960A1

1шт.

2a

NSS

NOT SOLD SEPARAT

Cover Sheet

1шт.

Part of Hub, P/N 166916A1

1шт.

2b

NSS

NOT SOLD SEPARAT

Carrier, Planetary

1шт.

Part of Hub, P/N 166916A1

1шт.

3

167006A1

BOLT

Screw

3шт.

Part of Planetary Reducer, P/N 166917A1

1шт.

Part of Hub Assembly, P/N 166960A1

1шт.

4

166857A1

EXPANDER

Ring

1шт.

Part of Planetary Reducer, P/N 166917A1

1шт.

Part of Hub Assembly, P/N 166960A1

1шт.

5

166816A1

KIT

Assy, Consists of: ref. nos. 5A-5F

1шт.

Part of Planetary Reducer, P/N 166917A1

1шт.

166961A1

KIT

Gear Assy, Consists of: ref. nos. 5A, 5B

1шт.

5a

NSS

NOT SOLD SEPARAT

Gear

1шт.

Part of Gear Assembly, P/N 166816A1

1шт.

Part of Gear Assembly Kit, P/N 166961A1

1шт.

5b

NSS

NOT SOLD SEPARAT

Gear

1шт.

Part of Gear Assembly, P/N 166816A1

1шт.

Part of Gear Assembly Kit, P/N 166961A1

1шт.

5c

166822A1

CRANKSHAFT

3шт.

Part of Gear Assembly, P/N 166816A1

1шт.

5d

166874A1

SPACER

6шт.

Part of Gear Assembly, P/N 166816A1

1шт.

5e

166993A1

TAPERED BEARING,25 mm ID x 52 mm OD x 22 mm

Cone

6шт.

Part of Gear Assembly, P/N 166816A1

1шт.

5f

166999A1

BEARING, NEEDLE

6шт.

Part of Gear Assembly, P/N 166816A1

1шт.

6

166812A1

GEAR

1шт.

Part of Planetary Reducer, P/N 166917A1

1шт.

7

166811A1

KIT

Qty. was 3

1шт.

Part of Planetary Reducer, P/N 166917A1

1шт.

8

167025A1

COVER

Sheet

1шт.

Part of Planetary Reducer, P/N 166917A1

1шт.

166962A1

SEAL KIT

Consists of: ref. nos. 9, 10

1шт.

Part of Planetary Reducer, P/N 166917A1

1шт.

9

NSS

NOT SOLD SEPARAT

Seal

1шт.

Part of Planetary Reducer, P/N 166917A1

1шт.

Part of Seals Package, P/N 166962A1

1шт.

10

NSS

NOT SOLD SEPARAT

Kit, Parts

1шт.

Part of Planetary Reducer, P/N 166917A1

1шт.

Part of Seals Package, P/N 166962A1

1шт.

11

166858A1

COLLAR

Ring

1шт.

Part of Planetary Reducer, P/N 166917A1

1шт.

12

166861A1

SPACER

Bushing

3шт.

Part of Planetary Reducer, P/N 166917A1

1шт.

13

166810A1

COUPLING

1шт.

Part of Planetary Reducer, P/N 166917A1

1шт.

14

166823A1

SHAFT

1шт.

Part of Planetary Reducer, P/N 166917A1

1шт.

15

166859A1

COTTER PIN

Needle

24шт.

Part of Planetary Reducer, P/N 166917A1

1шт.

16

167026A1

RING

Seal

1шт.

Part of Planetary Reducer, P/N 166917A1

1шт.

17

166860A1

RING, SNAP

RING SNAP

3шт.

Part of Planetary Reducer, P/N 166917A1

1шт.

18

166992A1

ROLLER BEARING

Cone

2шт.

Part of Planetary Reducer, P/N 166917A1

1шт.

19

166876A1

RING, LOCKING

RING, LOCK Snap

1шт.

Part of Planetary Reducer, P/N 166917A1

1шт.

20

166877A1

RING, LOCKING

RING, LOCK Snap

3шт.

Part of Planetary Reducer, P/N 166917A1

1шт.

21

160979A1

BALL

1шт.

Part of Planetary Reducer, P/N 166917A1

1шт.

22

154451A1

O-RING

2шт.

Part of Planetary Reducer, P/N 166917A1

1шт.

23

154933A1

O-RING

1шт.

Part of Planetary Reducer, P/N 166917A1

1шт.

24

166806A1

O-RING

1шт.

Part of Planetary Reducer, P/N 166917A1

1шт.

25

166802A1

O-RING

1шт.

Part of Planetary Reducer, P/N 166917A1

1шт.

26

166846A1

PLUG

3шт.

Part of Planetary Reducer, P/N 166917A1

1шт.
