Запчасти Case 9007B (6-02) - TRAVEL MOTOR AND REDUCTION GEAR (06) - POWER TRAIN

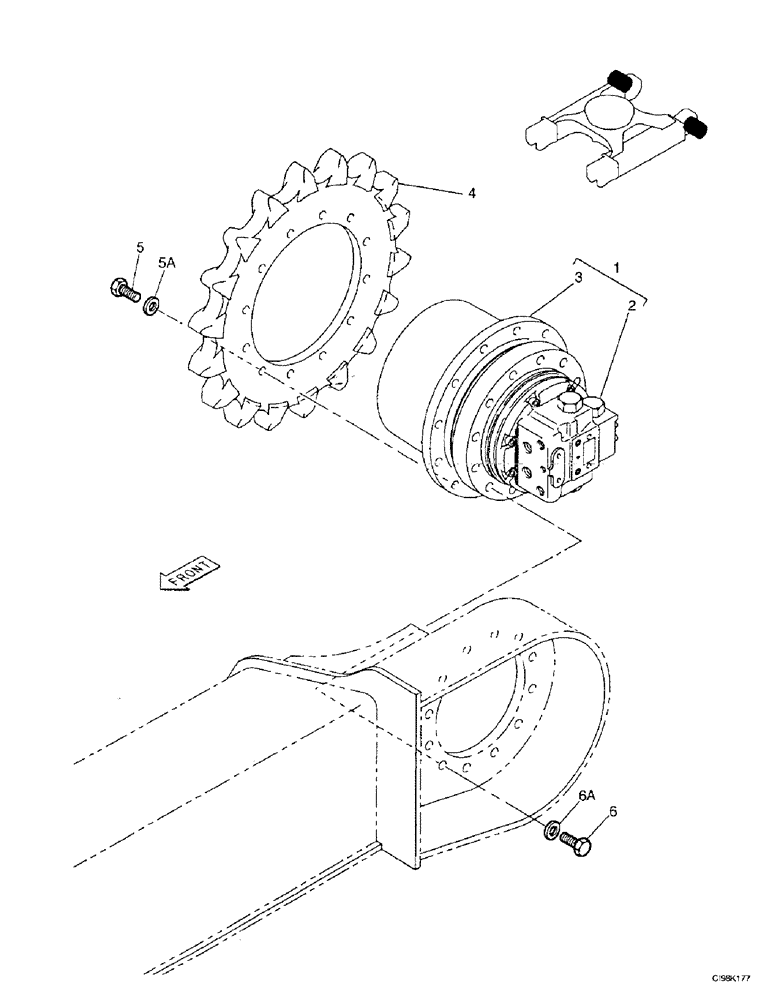

Схема запчастей Case 9007B - (6-02) - TRAVEL MOTOR AND REDUCTION GEAR (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

1

166291A1

MOTO-REDUCTION GEAR

Consists Of Ref. Numbers : 2, 3

2шт.

2

166915A1

MOTOR, HYDRAULIC

Travel, See Figure : 7-6

1шт.

3

166917A1

REDUCER

Reducer, See Figure : 6-4

1шт.

4

166246A1

WHEEL GEAR

Sprocket

2шт.

5

627-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 10.9, Full Thd

24шт.

5a

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

15.5 x 28 x 3 mm

24шт.

6

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

24шт.

6a

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

24шт.

Выбрано товаров: 8
